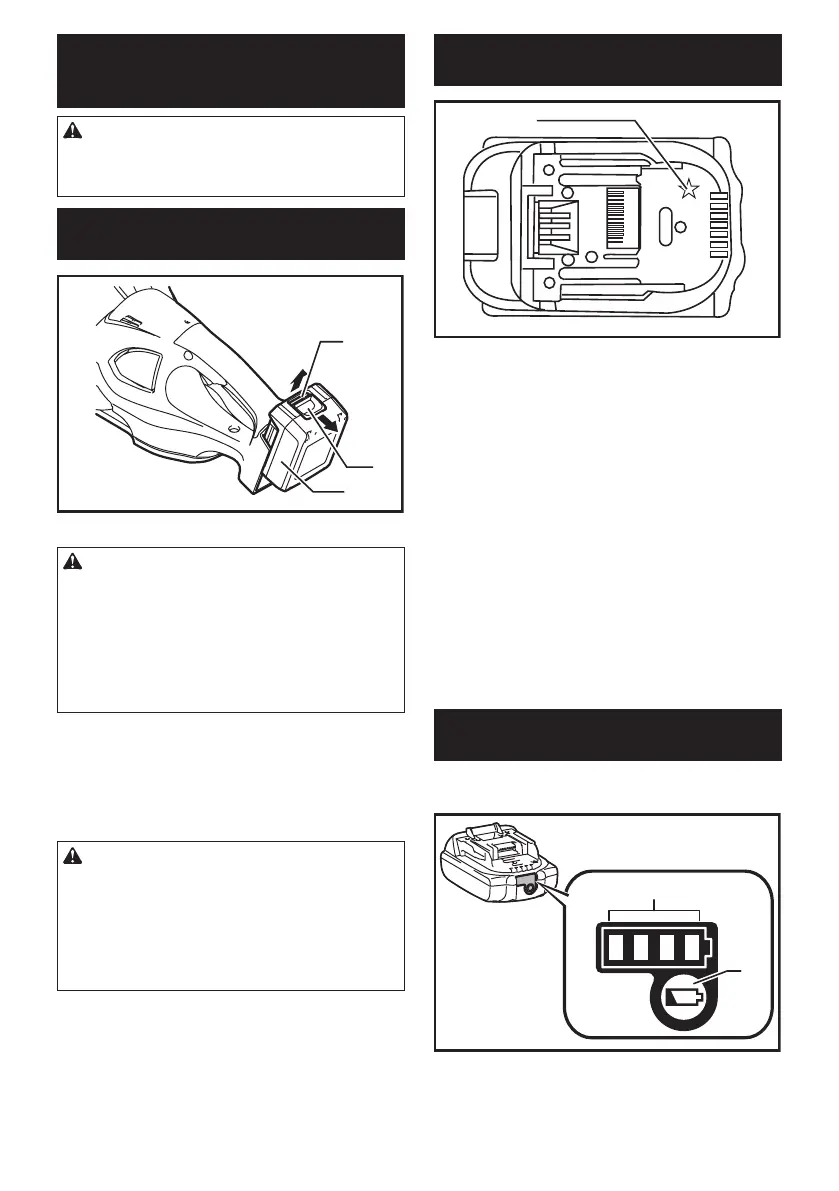

7 ENGLISH
FUNCTIONAL
DESCRIPTION
CAUTION:
• Alwaysbesurethatthetoolisswitchedo󰀨and
thebatterycartridgeisremovedbeforeadjust-
ing or checking function on the tool.
Installing or removing battery
cartridge
1
2
3
►1. Red indicator 2. Button 3. Battery cartridge
CAUTION:
• Alwaysswitcho󰀨thetoolbeforeinstallingor
removing of the battery cartridge.
• Hold the tool and the battery cartridge rmly
when installing or removing battery car-
tridge. Failure to hold the tool and the battery
cartridgermlymaycausethemtoslipo󰀨your
hands and result in damage to the tool and
batterycartridgeandapersonalinjury.
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION:
• Always install the battery cartridge fully until the
red indicator cannot be seen. If not, it may acci-
dentallyfalloutofthetool,causinginjurytoyou
or someone around you.
• Do not install the battery cartridge forcibly. If the
cartridge does not slide in easily, it is not being
inserted correctly.
Battery protection system (Lithium-
ion battery with star marking)
1
►1. Star marking
Lithium-ion batteries with a star marking are equipped
with a protection system. This system automatically
cutso󰀨powertothetooltoextendbatterylife.
The tool will automatically stop during operation if the
tool and/or battery are placed under one of the following
conditions:
• Overloaded:
The tool is operated in a manner that causes
it to draw an abnormally high current.
In this situation, release the switch trigger on
the tool and stop the application that caused
the tool to become overloaded. Then pull the
switch trigger again to restart.
If the tool does not start, the battery is over-
heated. In this situation, let the battery cool
before pulling the switch trigger again.
• Low battery voltage:
The remaining battery capacity is too low
and the tool will not operate. In this situation,
remove and recharge the battery.
Indicating the remaining battery
capacity
(Only for battery cartridges with "B" at the end of the
model number.)
1
2
►1. Indicator lamps 2. CHECK button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for few seconds.
