11 ENGLISH

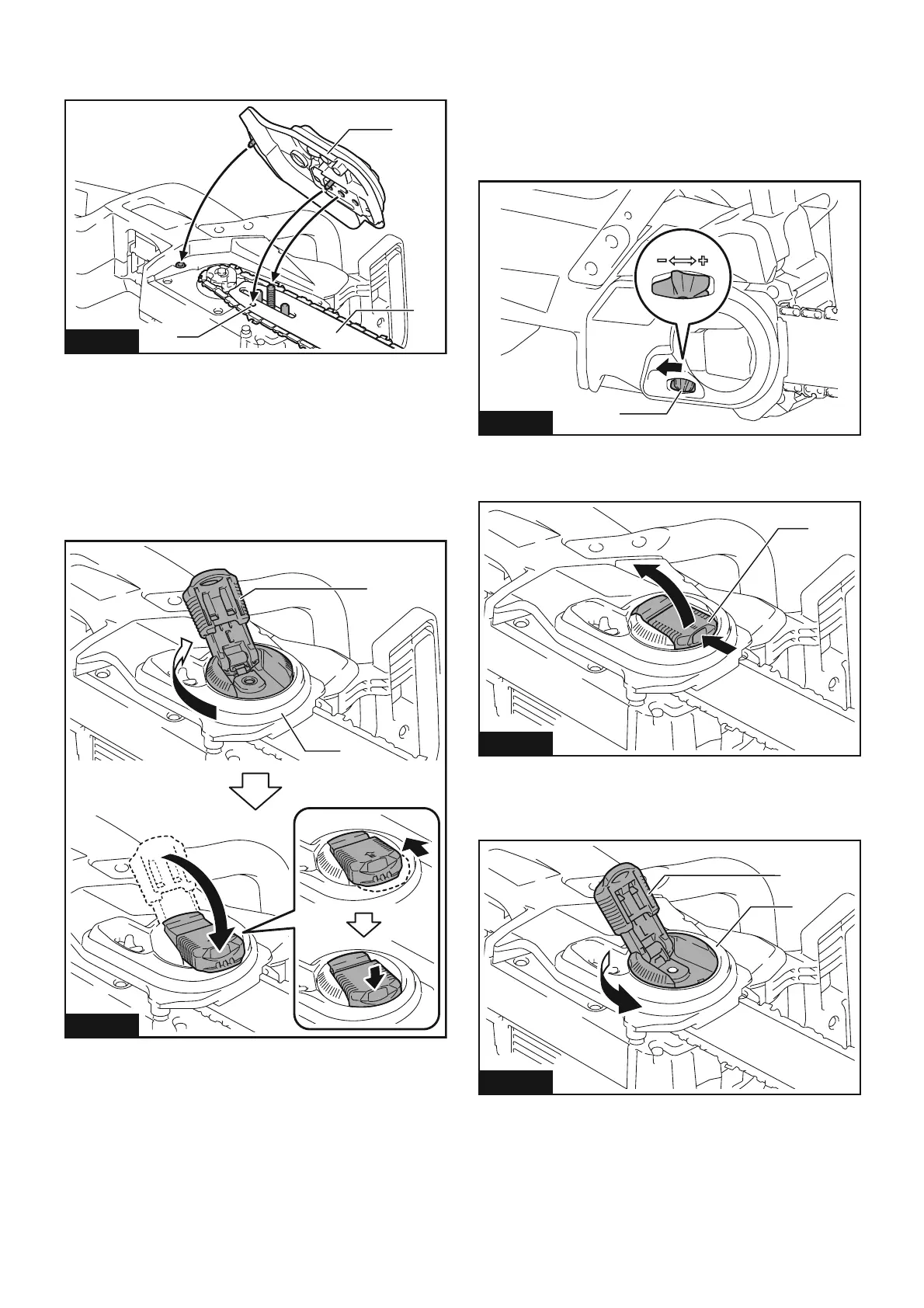

9. Place the sprocket cover on the chain saw so that
WKHDGMXVWLQJSLQLVSRVLWLRQHGLQDVPDOOKROHRQWKH
guide bar.
3
1
2
Fig.12
Ź1. Sprocket cover 2. Guide bar 3. Hole
10. Turn the lever clockwise fully and turn back the
OHYHUDOLWWOHWRNHHSORRVHQHVVIRUDGMXVWLQJWKHFKDLQ
tension.
11. $GMXVWWKHFKDLQWHQVLRQ5HIHUWRWKHVHFWLRQIRU
DGMXVWLQJVDZFKDLQWHQVLRQIRUSURFHGXUH
12. Turn the lever clockwise until the sprocket cover is
secured then return it to the original position.
1
2
Fig.13
Ź1. Lever 2. Sprocket cover
Removing the saw chain
To remove the saw chain, perform the following steps:
1. Release the chain brake by pulling the front hand
guard.
2. 7XUQWKHDGMXVWLQJGLDOWRGLUHFWLRQWRUHOHDVH
the saw chain tension.
1
Fig.14
Ź1.$GMXVWLQJGLDO
3. Pull the lever up while pressing its edge.
1
Fig.15
Ź1. Lever
4. Turn the lever counterclockwise until the sprocket
FRYHUFRPHVRႇ
2
1
Fig.16
Ź1. Lever 2. Sprocket cover
5. Remove the sprocket cover then remove the saw
chain and guide bar from the chain saw body.
