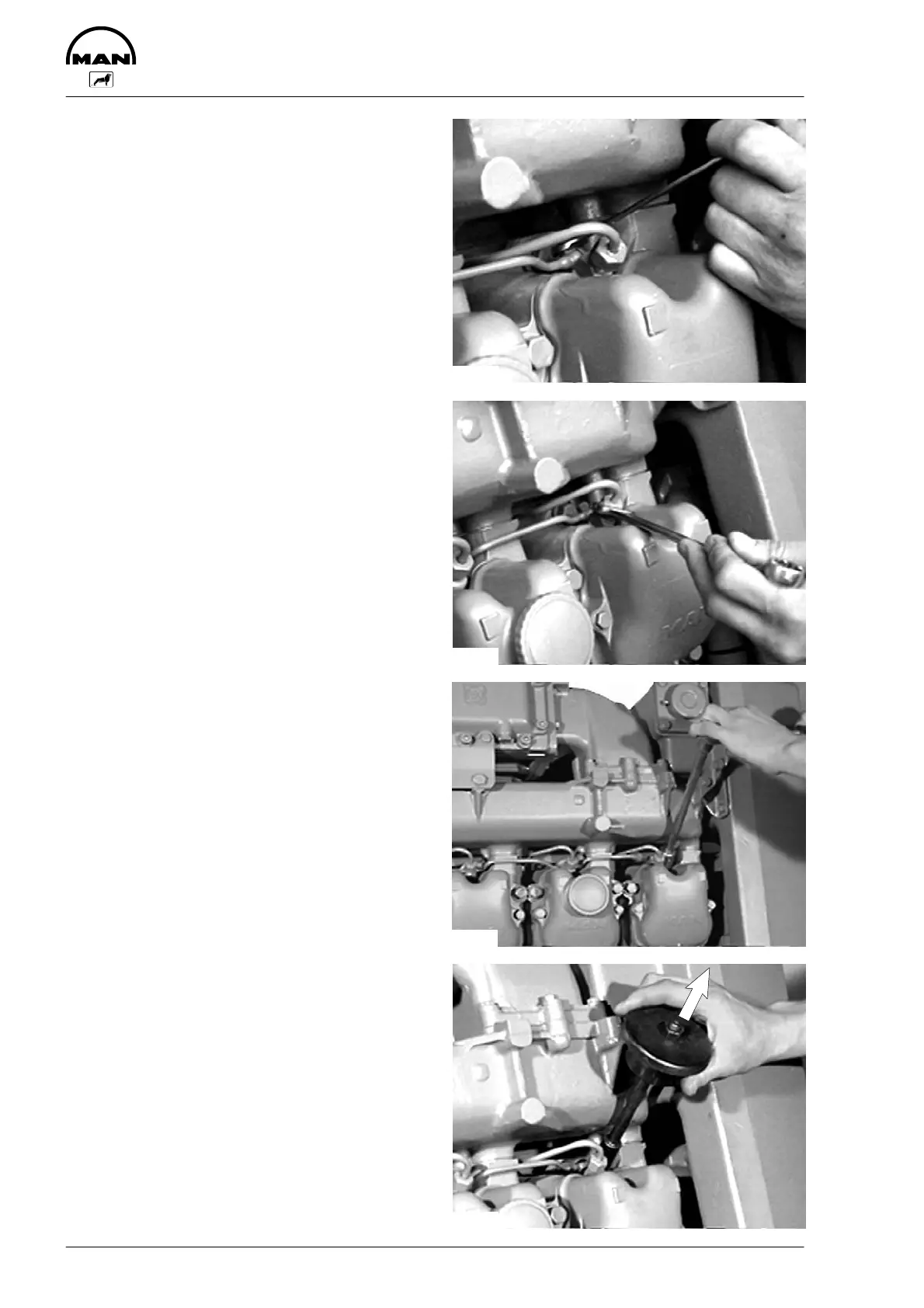

Removing and installing fuel injectors

Removing fuel injectors

Fig. 1

Remove leakage fuel return lines.

Fig. 2

Remove injection lines.

Fig. 3

Remove pressure screw from fuel injector using a

pin spanner.

Fig. 4

Bolt inertia puller on to fuel injector and knock out

the injector.

3402

3403

3378

3404
