Removing and installing water pump
40
D Take off V-belt, see page 118
D Drain coolant, see page 37
D Detach expansion tank, see page 45
D Take out thermostats, see page 39
Note:
If the water pump is to be disassembled at a
later date, remove V-belt pulley before the
disassembly and pull off water pump hub
with a stable three-arm puller.

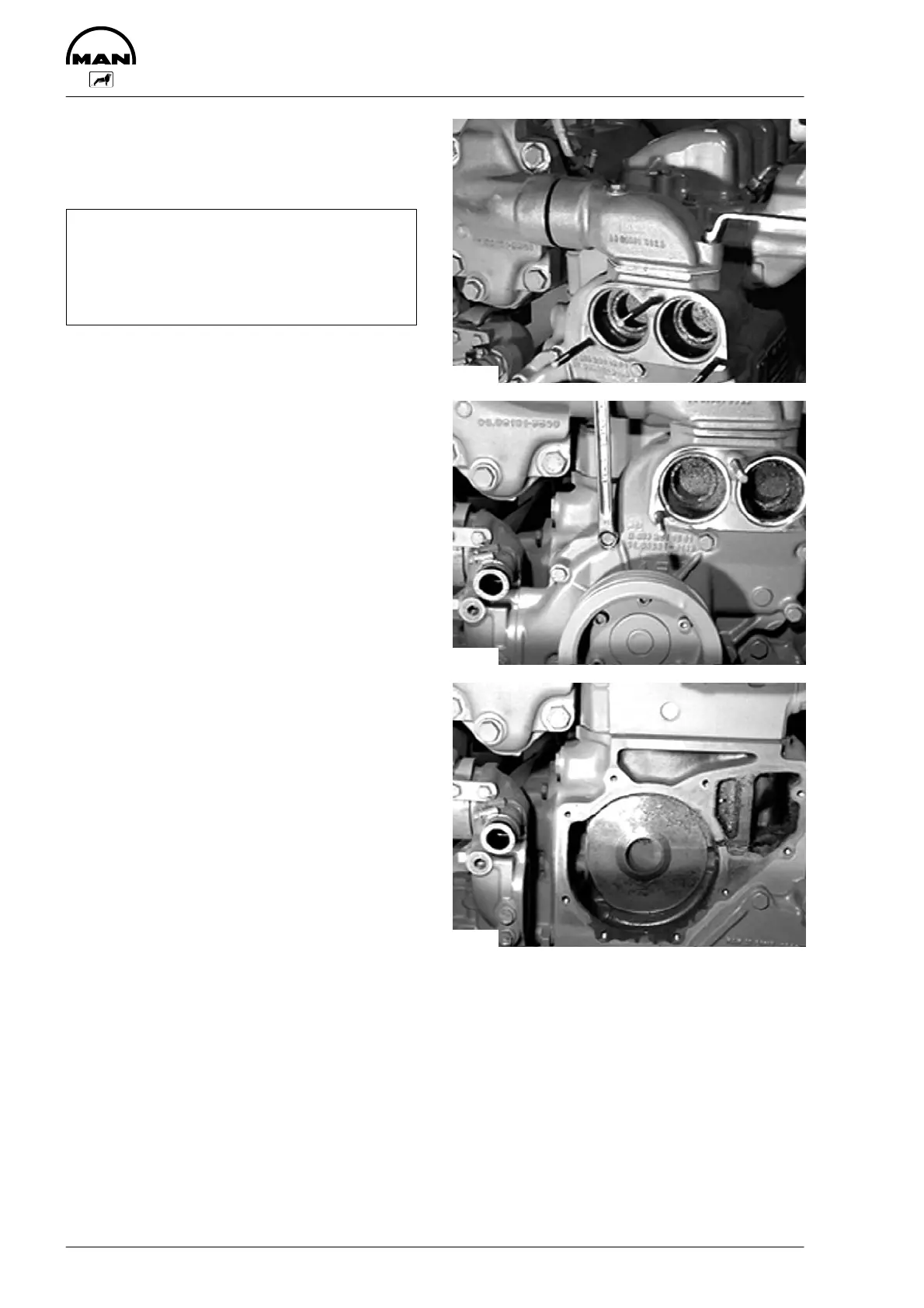

Fig. 1
Remove the mounting bolts from the cooling-water
elbow (13 mm).
Fig. 2
Remove mounting bolts from water pump (13 mm)
and take off water pump.
Fig. 3
Clean the sealing faces on water pump and engine
housing using a scraper and fine abrasive paper.
Stick the new seal for the water-pump housing to
the crankcase using grease. Fit water pump.
Use new seals for the cooling-water elbow.
3430
3431
3432
