Removing and installing intake manifold
67
D Drain coolant, see page 37
D Remove intercooler, see page 77
Note:
When carrying out work on the intake sys-
tem, ensure meticulous cleanliness to pre-
vent dirt and foreign matter from penetrating
into the system.
Removing intake manifold

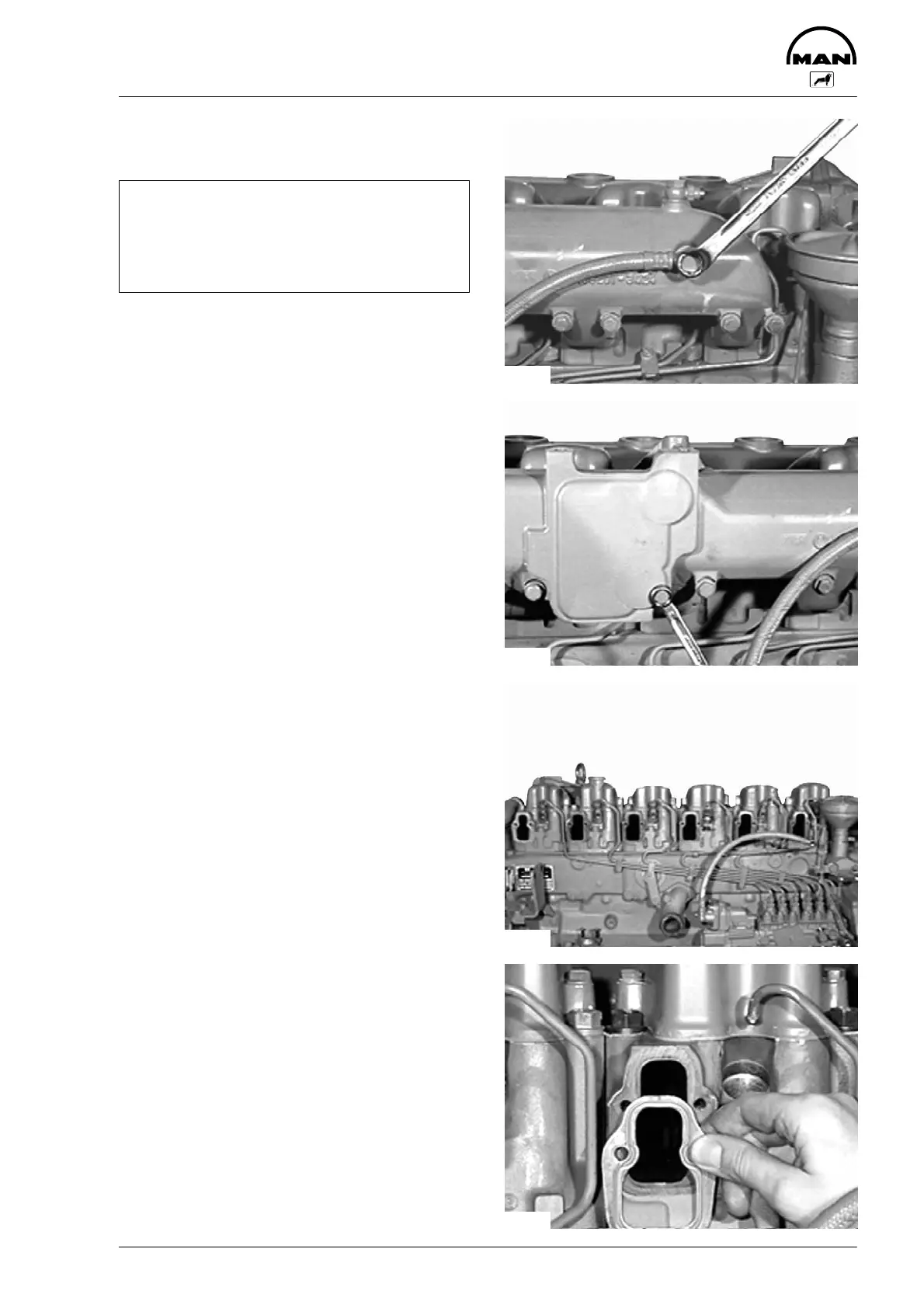

Fig. 1
Remove hose connection from LDA.
Fig. 2
Remove the mounting bolts from the intake
pipe (13 mm).
Fig. 3
Take off intake pipe.
Installing intake manifold
Fig. 4
Place intake manifold with new seals in position.
Tighten mounting bolts to the specified torque.
Ensure that the seals are correctly seated.
