Maintenance and care
41
Air cleaner

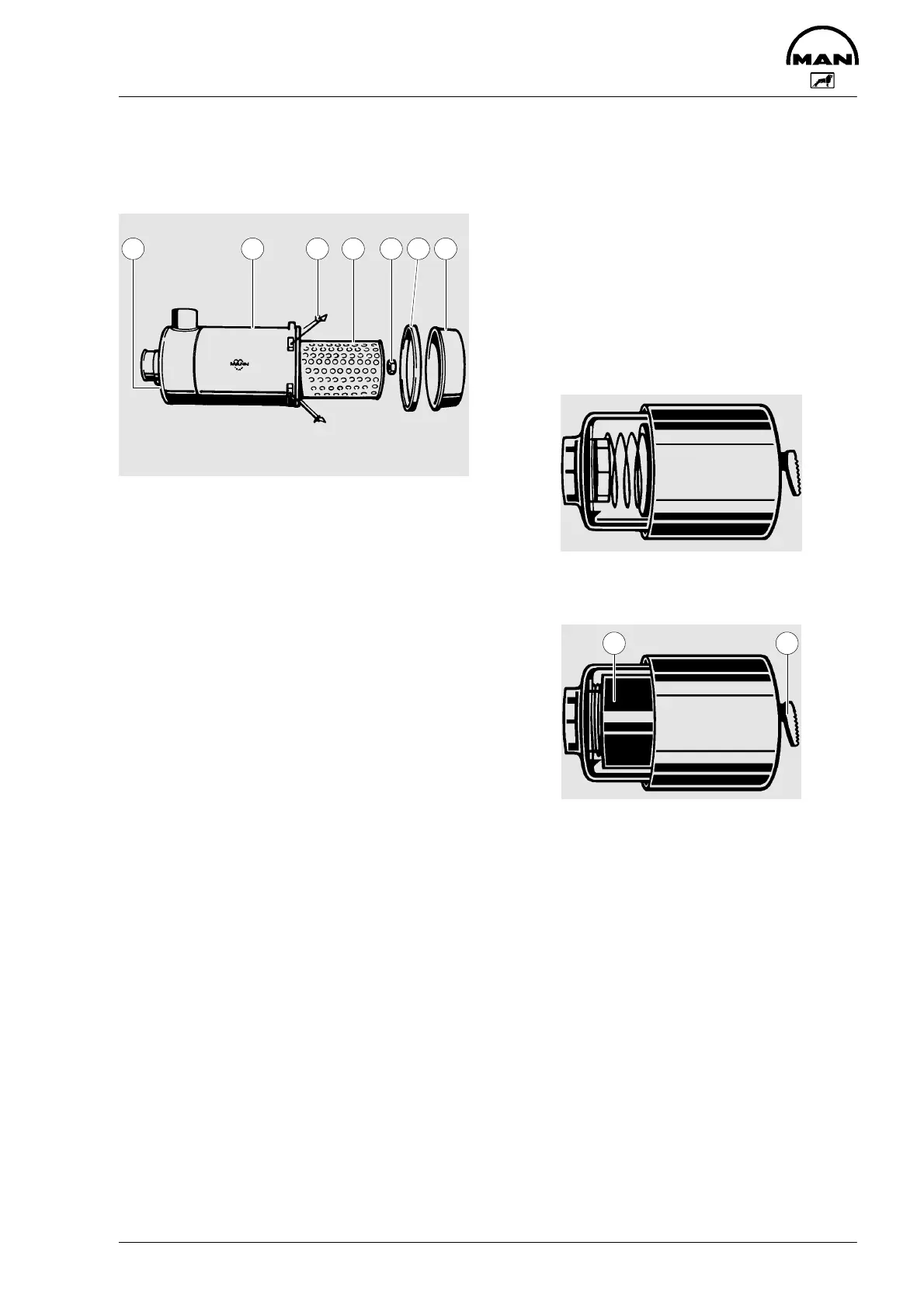

Dry air cleaner
1 2 3 4 5 76
1 Connection port, fouling indicator
2 Cleaner housing
3 Clamp
4 Element
5 Hexagon nut
6 Cover
7 Dust bowl
Service only when engine is switched off.
Dust collector
The dust collector must be emptied at reg-
ular intervals. The collector should never
be more than half full of dust.
When the two retainers have been folded
up the dust collector can be taken off.
Remove the lid of the dust collector and
empty the collector.
Ensure that the lid and the collector are
reassembled correctly. A lug on the collec-
tor fits into a recess in the edge of the lid.
If the filter is installed horizontally note the
“oben” (“top”) marking on the filter bowl.
Fouling Indicator
As the degree of clogging increases the
red indicator becomes more and more vis-
ible in the transparent section of the air
cleaner.
If the fouling indicator remains engaged,
i.e. it still shows completely red even with
the engine shut down, the filter cartridge
must be cleaned or replaced.
Filter operational
1 2
Filter must be serviced
1 Red indicator
2 Reset button
After servicing the cartridge, press the
button to reset the fouling indicator.
