Design and Function
30
Carefully read the Operating Instructions before starting any work!
This is especially valid for the chapter on General Safety Instructions
and the safety instructions in each of the chapters.
4.3 Engine Views E0836 LE202

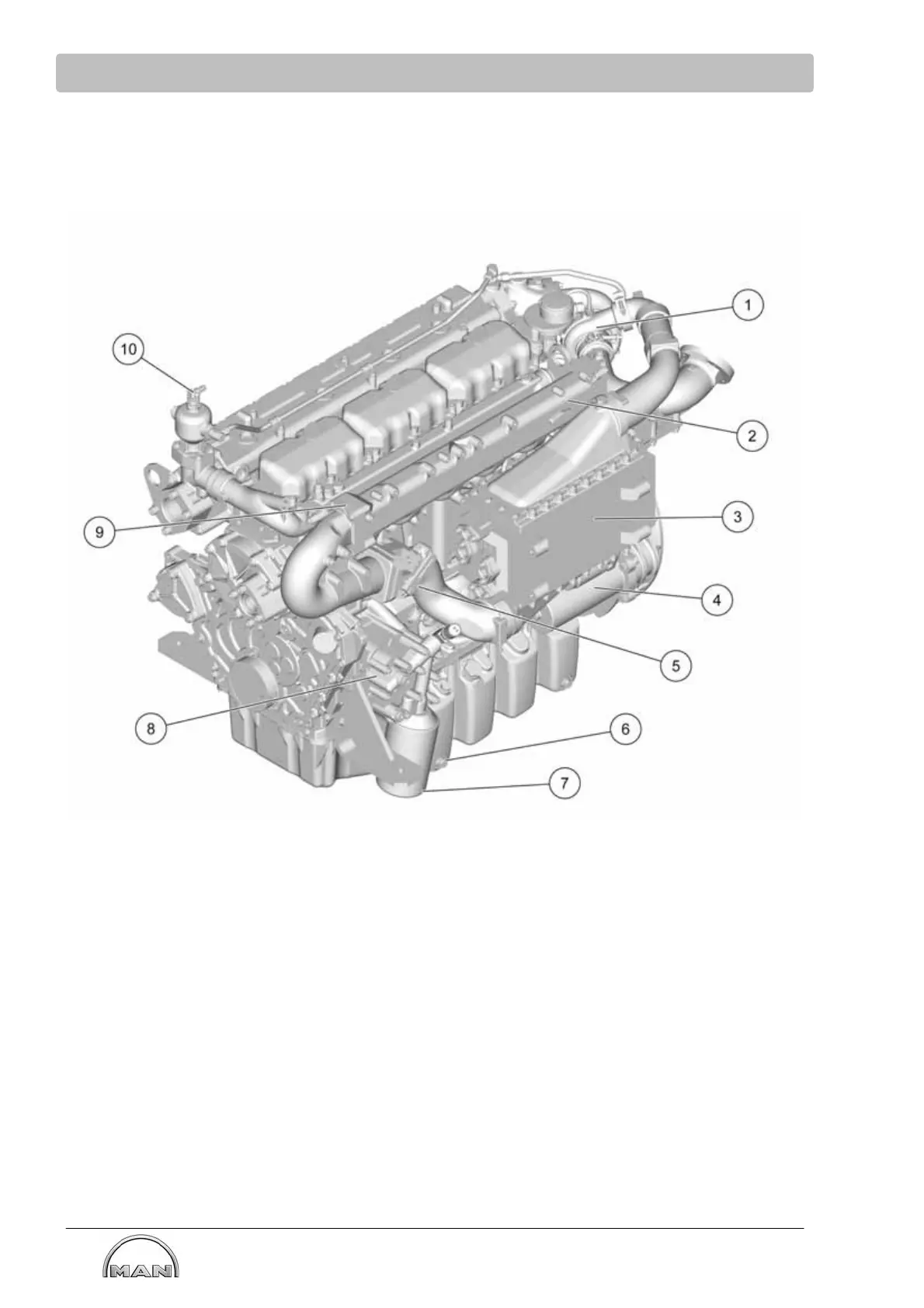

4.3.1 Front Left View
(1) Turbocharger
(2) Intake manifold
(3) Charge mixture cooler
(4) Starter
(5) Throttle valve
(6) Oil drain screw
(7) Oil filter
(8) Oil cooler
(9) Flame protection filter
(10) Ventilation connection for coolant to separate ventilation reservoir
