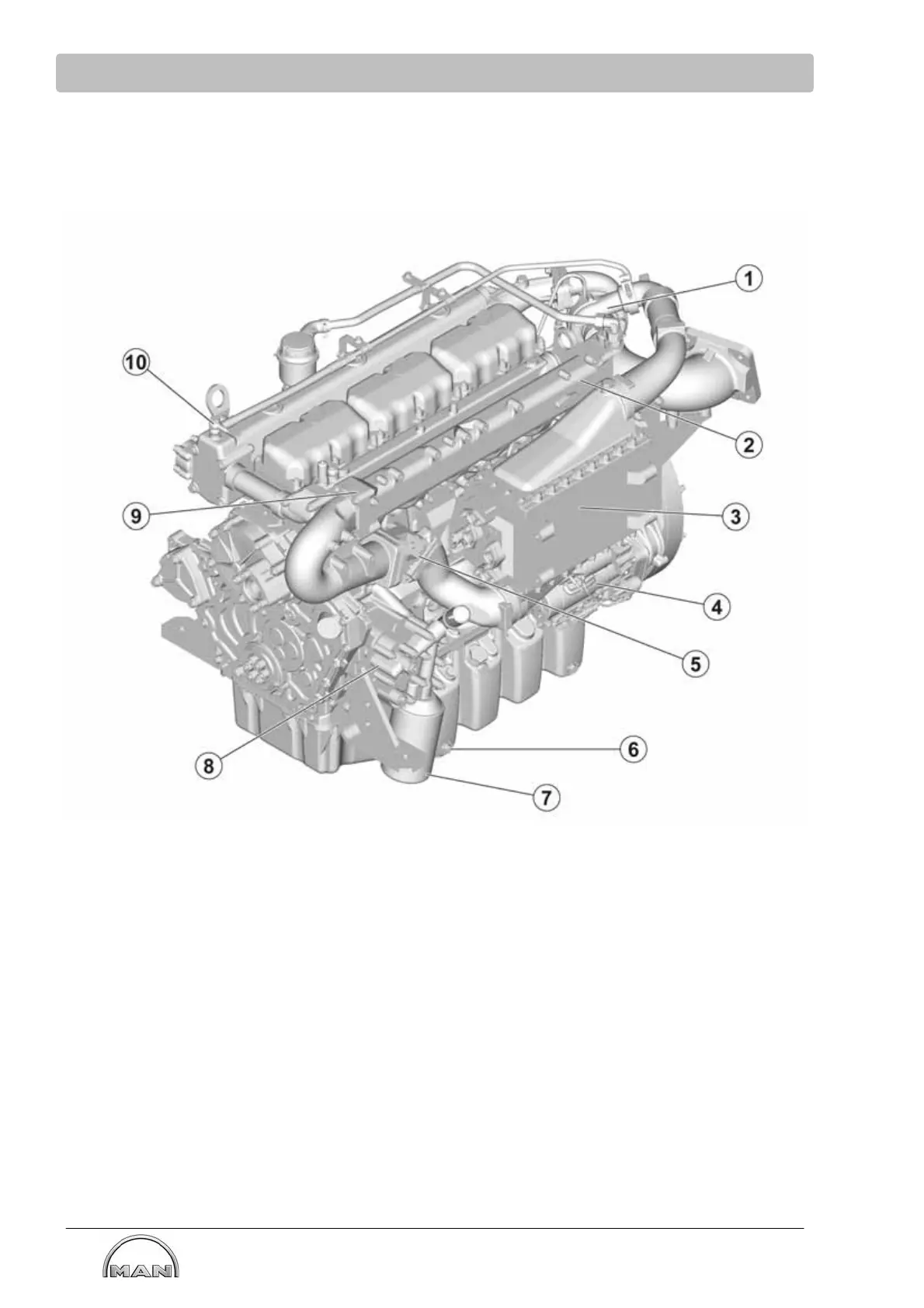

4.4 Engine Views E0836 LE302
4.4.1 Front Left View
(1) Turbocharger
(2) Intake manifold
(3) Charge mixture cooler
(4) Starter
(5) Throttle valve
(6) Oil drain screw
(7) Oil filter
(8) Oil cooler
(9) Flame protection filter
(10) Ventilation connection
