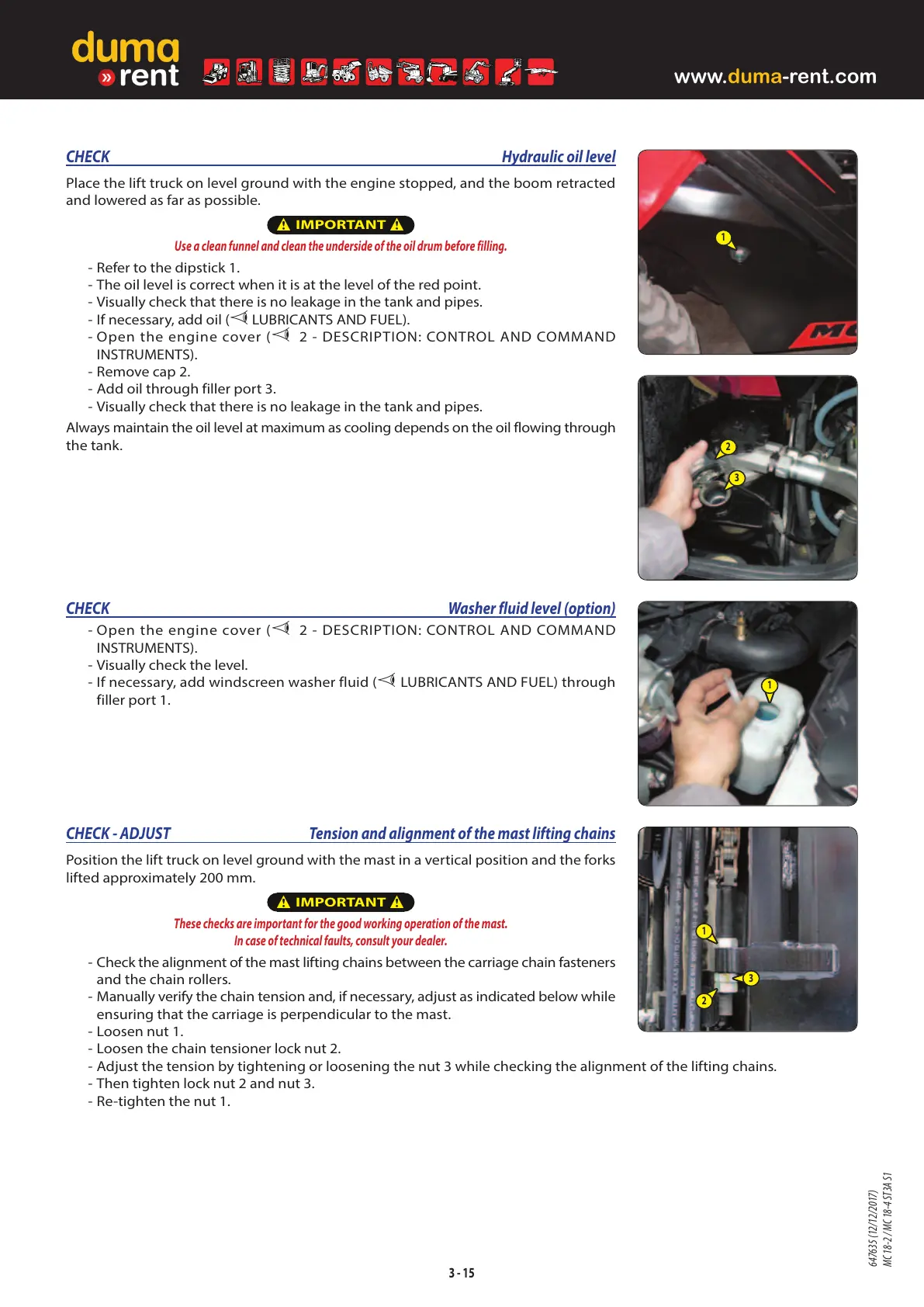

CHECK Hydraulic oil level
Place the lift truck on level ground with the engine stopped, and the boom retracted
and lowered as far as possible.
IMPORTANT
Use a clean funnel and clean the underside of the oil drum before filling.
- Refer to the dipstick 1.
- The oil level is correct when it is at the level of the red point.
- Visually check that there is no leakage in the tank and pipes.
- If necessary, add oil ( LUBRICANTS AND FUEL).
- Open the engine cover ( 2 - DESCRIPTION: CONTROL AND COMMAND
INSTRUMENTS).
- Remove cap 2.
- Add oil through filler port 3.
- Visually check that there is no leakage in the tank and pipes.
Always maintain the oil level at maximum as cooling depends on the oil flowing through
the tank.
CHECK - ADJUST Tension and alignment of the mast lifting chains
Position the lift truck on level ground with the mast in a vertical position and the forks
lifted approximately 200 mm.
IMPORTANT
These checks are important for the good working operation of the mast.
In case of technical faults, consult your dealer.
- Check the alignment of the mast lifting chains between the carriage chain fasteners
and the chain rollers.
- Manually verify the chain tension and, if necessary, adjust as indicated below while
ensuring that the carriage is perpendicular to the mast.
- Loosen nut 1.
- Loosen the chain tensioner lock nut 2.
- Adjust the tension by tightening or loosening the nut 3 while checking the alignment of the lifting chains.
- Then tighten lock nut 2 and nut 3.
- Re-tighten the nut 1.
CHECK Washer fluid level (option)
- Open the engine cover ( 2 - DESCRIPTION: CONTROL AND COMMAND
INSTRUMENTS).
- Visually check the level.
- If necessary, add windscreen washer fluid ( LUBRICANTS AND FUEL) through
filler port 1.
1
3 - 15
1
1
2
3
2
3
647635 (12/12/2017)
