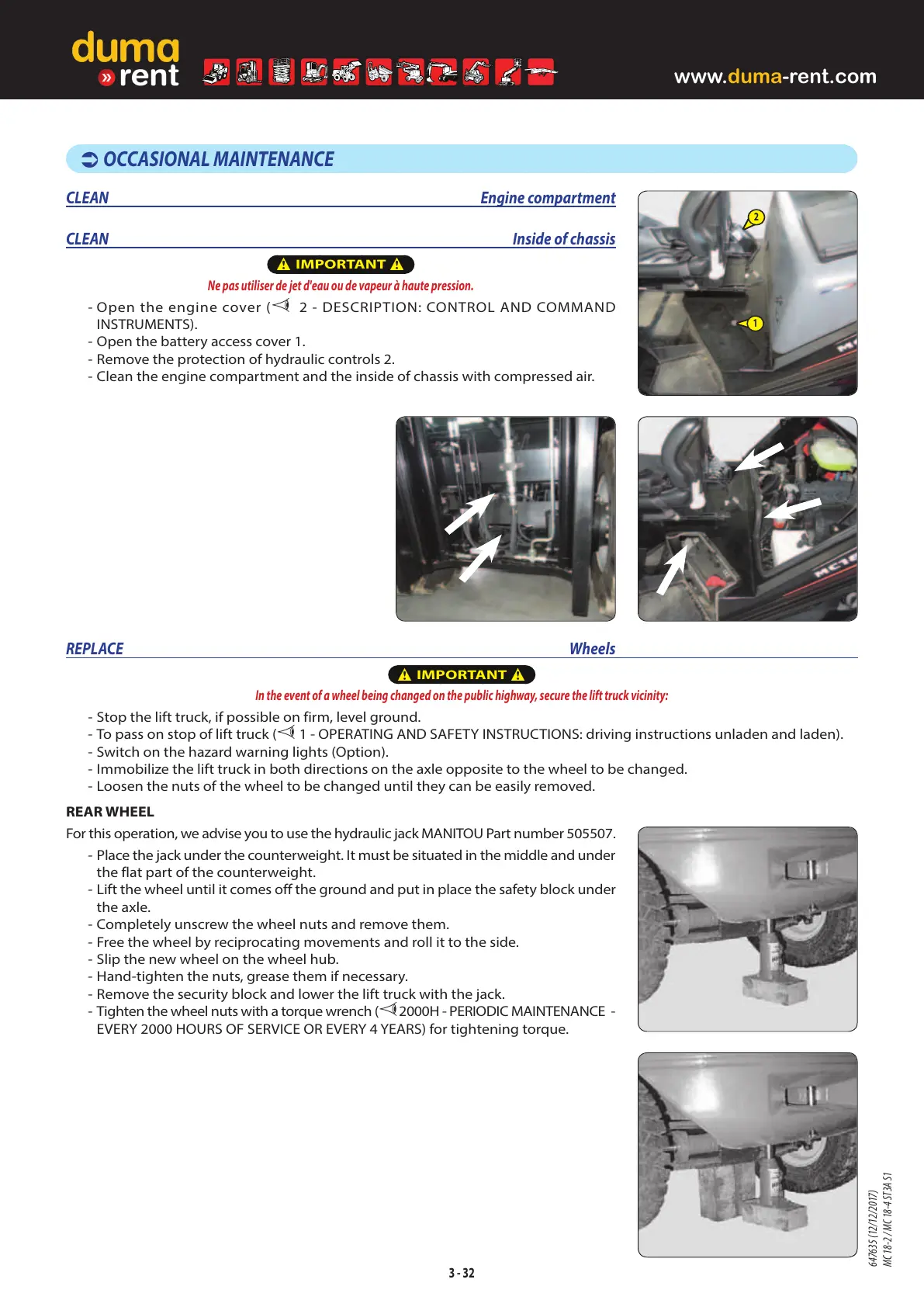

OCCASIONAL MAINTENANCE
CLEAN Engine compartment
CLEAN Inside of chassis
IMPORTANT
Ne pas utiliser de jet d'eau ou de vapeur à haute pression.
- Open the engine cover ( 2 - DESCRIPTION: CONTROL AND COMMAND
INSTRUMENTS).
- Open the battery access cover 1.
- Remove the protection of hydraulic controls 2.
- Clean the engine compartment and the inside of chassis with compressed air.
REPLACE Wheels
IMPORTANT
In the event of a wheel being changed on the public highway, secure the lift truck vicinity:
- Stop the lift truck, if possible on firm, level ground.
- To pass on stop of lift truck ( 1 - OPERATING AND SAFETY INSTRUCTIONS: driving instructions unladen and laden).
- Switch on the hazard warning lights (Option).
- Immobilize the lift truck in both directions on the axle opposite to the wheel to be changed.
- Loosen the nuts of the wheel to be changed until they can be easily removed.
REAR WHEEL
For this operation, we advise you to use the hydraulic jack MANITOU Part number 505507.
- Place the jack under the counterweight. It must be situated in the middle and under
the flat part of the counterweight.
- Lift the wheel until it comes off the ground and put in place the safety block under
the axle.
- Completely unscrew the wheel nuts and remove them.
- Free the wheel by reciprocating movements and roll it to the side.
- Slip the new wheel on the wheel hub.
- Hand-tighten the nuts, grease them if necessary.
- Remove the security block and lower the lift truck with the jack.
- Tighten the wheel nuts with a torque wrench (
2000H - PERIODIC MAINTENANCE -
EVERY 2000 HOURS OF SERVICE OR EVERY 4 YEARS) for tightening torque.
3 - 32
1
2
647635 (12/12/2017)
