G - TAKING UP AND LAYING A HIGH LOAD ON STABILIZERS
Depending on the model of lift truck
You must not raise the jib if you have not checked the transverse attitude of the lift truck (see: INSTRUCTIONS FOR HANDLING A LOAD: D - TRANSVERSE
ATTITUDE OF THE LIFT TRUCK).
REMINDER: Make sure that the following operations can be performed with good visibility (see: OPERATIONS INSTRUCTIONS UNLADEN
AND LADEN: D - VISIBILITY).
USING THE STABILIZERS
The stabilizers are used to optimise the lift truck’s lifting performances (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS).
POSITION THE STABILIZERS WITH THE FORKS IN TRANSPORT POSITION (UNLADEN AND LADEN)
- Set the forks in transport position in front of the elevation.
- Stay far enough away to have room for the jib to be raised.
- Put the handbrake on and put the gearshift lever into neutral.
- Set the two stabilizers on the ground and lift the two front wheels of the lift truck (fig. G1),
while maintaining its transverse stability.
RAISE THE STABILIZERS WITH THE FORKS IN TRANSPORT POSITION (UNLADEN AND LADEN)
- Raise both stabilizers fully and at the same time.
SETTING THE STABILIZERS WITH THE JIB UP (UNLADEN AND LADEN)
This operation must be exceptional and performed with great care.
- Raise the jib and retract the telescopes completely.
- Set the lift truck in position in front of the elevation (fig. G2) moving very slowly and
carefully.
- Put the handbrake on and put the gearshift lever into neutral.
- Move the stabilizers very slowly and gradually as soon as they are close to the ground or
in contact with it.
- Lower the two stabilizers and lift the two front wheels of the lift truck (fig. G3). During this
operation, transverse attitude must be permanently maintained: the bubble in the level
must be kept between the two lines.
SETTING THE STABILIZERS WITH THE JIB UP (UNLADEN AND LADEN)
This operation must be exceptional and performed with great care.
- Keep the jib up and retract the telescopes completely (fig. G3).
- Move the stabilizers very slowly and gradually as soon as they are in contact with the
ground and when they leave the ground. During this operation, the transverse attitude
must be permanently maintained: the bubble in the level must be kept between the two
lines.
- Raise both stabilizers completely.
- Release the parking brake and reverse the lift truck (1) very slowly and carefully, to
release it and lower the forks (2) into transport position (fig. G4).

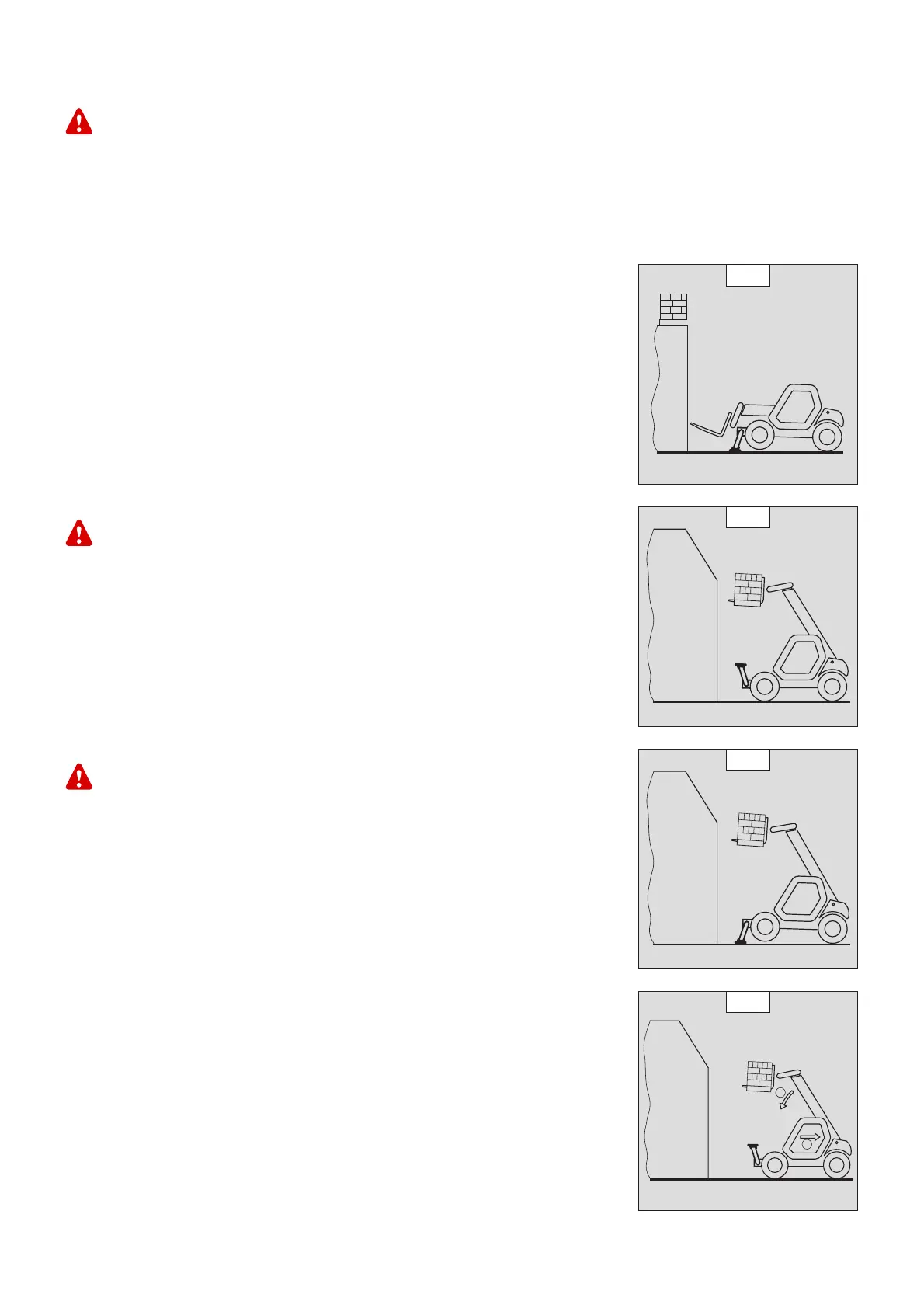

G1
G2
G3
G4
