ATTACHMENTS 5540F/YB5515 OPERATOR’S MANUAL
5-6 Published 10-21-2011, Control # 055-03
6. Remove pin at location No. 9 and swing the boom
toward the stow position.
7. When it can be reached, remove pin from location No. 8.
8. Continue swinging the boom extension toward the
stowing position, until the pin removed at location No. 8
can be installed into brackets on the boom extension
and boom assembly at location No. 5. Install and secure
the pin.
9. Remove the pin at location No. 4. and swing the boom
into position so the pin removed at location No. 10 can
be installed at location No. 1. Install and secure the pin.
10. Install and secure the pins removed from locations No. 4
and 9 back into those positions on the boom extension
to inhibit loosing the pins.
11. Remove the pin at location No. 12. Swing the deflector
sheave bracket to its stowing position and install and
secure the pin at location No. 11.
12. Reeve the boom head.
13. Install the drop block.

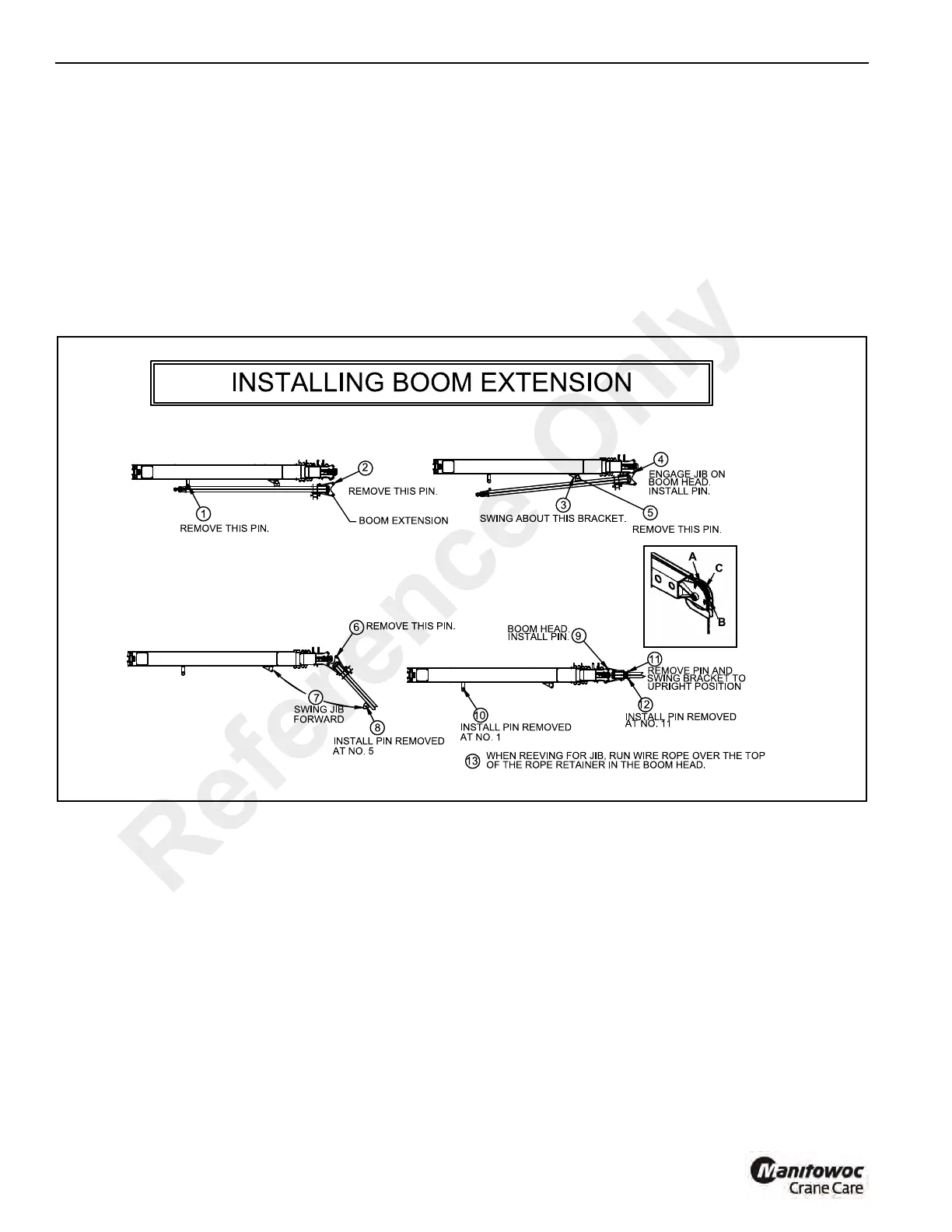

a1856
FIGURE 5-9
Boom Extension Installation
