CAPACITY CHART CD5520/YB5520 OPERATOR MANUAL
4-2 Published 07-06-2017, Control # 406-03
speed of 4 km/h (2.5 mph) on a smooth level surface
with the boom retracted to the shortest length possible
and centered over the front. Do not use the boom
extension on rubber.
6. For operating radius not shown on the Capacity Chart,
use load rating of the next larger radius.
7. With a load both on the boom (pick and carry) and on the
cranes’s deck the maximum combined load is 7258 kg
(16,000 lb.). The maximum load that can be placed only
on the deck with nothing attached to the boom is 9072
kg (20,000 lb.).
8. Do not induce any external side loads to the boom or the
boom extension.
Lifting with the Boom Extension Installed
To find the lifting capacity when using the boom extension,
observe the angle at which the main boom is positioned (use
the angle indicator on the boom, see Figure 4-1). Find this
angle on the capacity chart. Read across the line to the
amount of offset on the boom extension. The capacity given
is the capacity that can be lifted.
DO NOT lift more than what the capacity chart states.
Pick and Carry Ranges

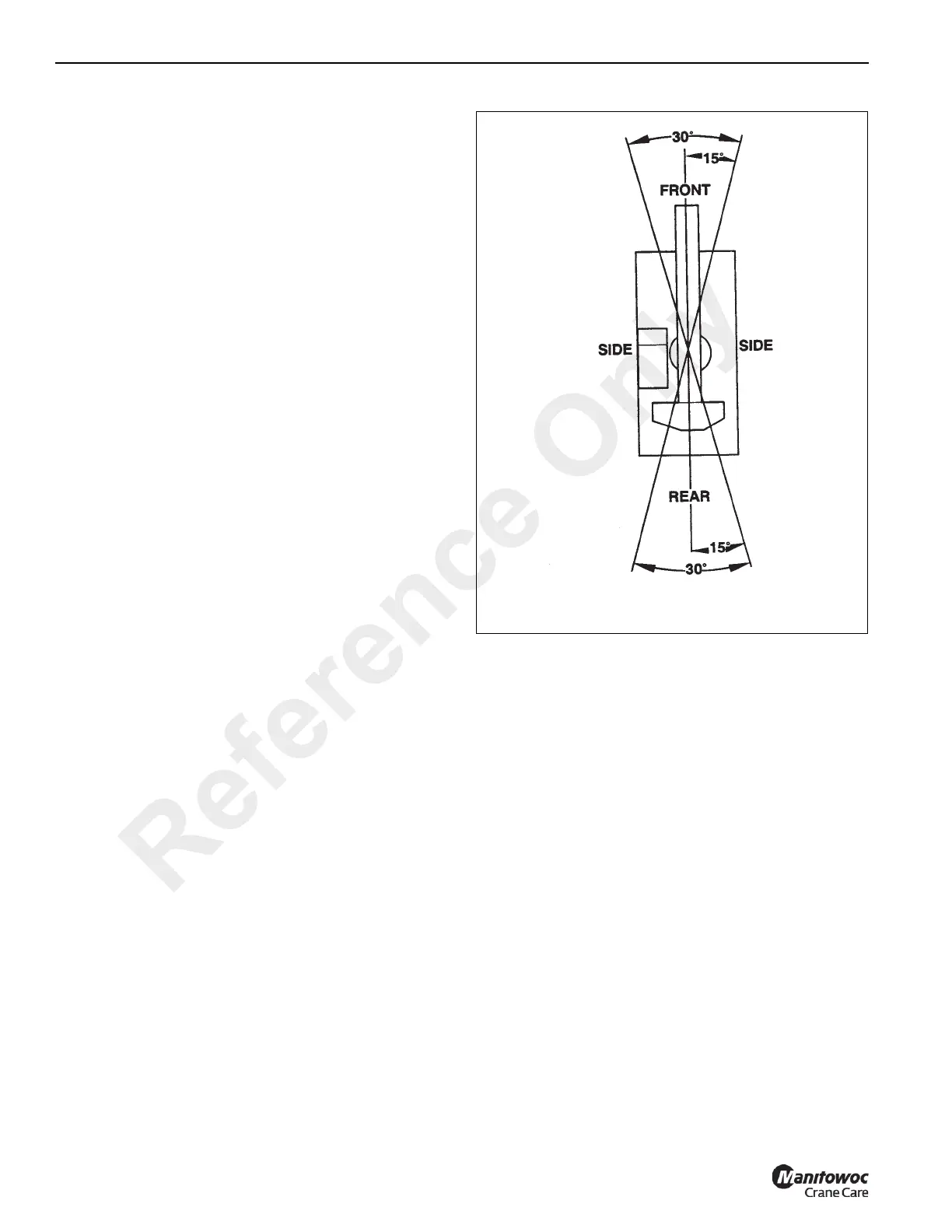

Figure 4-2 illustrates the range of operation for pick and
carry loads. Do not pick and carry outside of the specified
ranges. The crane could become unstable and tip over.
FIGURE 4-2
a0063
Pick and Carry Ranges
Reference Only
