MasterCraft 2007 X-Series User Manual

2007 MasterCraft Owners Manual - Page 4-2

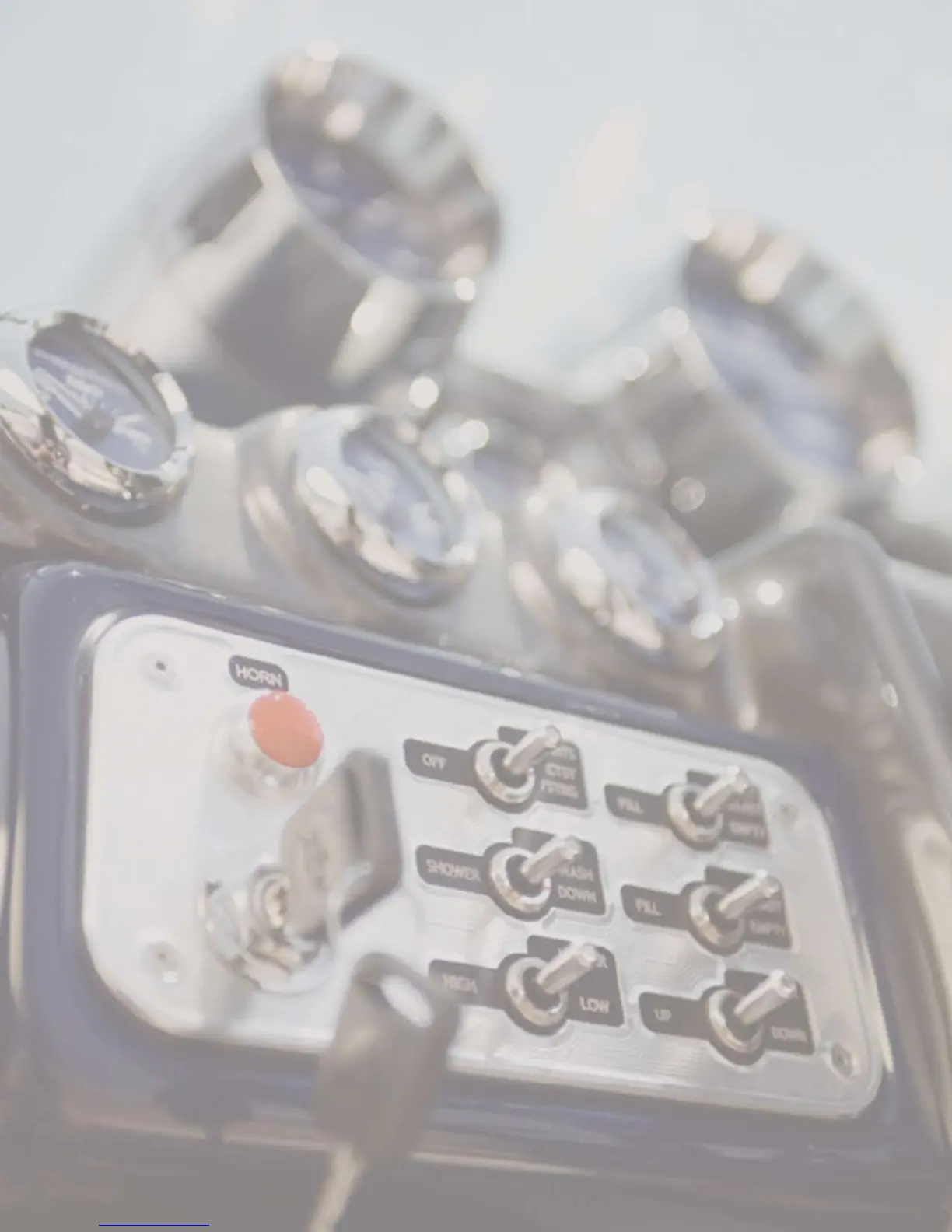

Instrument Panel
ProStar 109, ProStar 197, X-1, X-7
Top row of gauges from left:
Oil pressure gauge
Engine temperature gauge
Speedometer
Multi-function/tachometer
Check engine light
Speedometer or Perfect Pass
Voltmeter
Fuel gauge
Lower left panel:
Horn
Accessory 1 switch
Accessory 2 switch
Courtesy lights switch
Lower right panel:
Speedo adjustment switch
Clock adjustment switch
Nav/anchor lights switch
Bilge pump switch
Blower switch
Ignition key slot
X-Star, MariStar 280, X-80
Top row of gauges from left:
Tachometer
Speedometer
Perfect Pass gauge
Middle left panel:
Oil pressure gauge
Engine temperature gauge
Clock
Middle right panel:
Voltmeter
Depth nder
Fuel gauge
Lower left panel:
Horn
Clock adjustment switch
Speedometer adjustment switch
Courtesy lights switch
Shower switch
Heater switch
Accessory 1 switch
Accessory 2 switch
Accessory 3 switch
Lower right panel:
Tower light switch
Blower switch
Bilge switch
Nav/anchor lights switch
Ignition switch
MariStar 200, MariStar 230, MariStar 245, X-2,
X-30, X-45
Top row of gauges from left:
Oil pressure gauge
Engine temperature gauge
Multi-function/tachometer
Speedometer
Perfect Pass or MC Cruise
Fuel gauge
Voltmeter
Lower left panel:
Horn
Accessory 1 switch
Accessory 2 switch
Accessory 3 switch
Courtesy lights switch
12-volt receptacle
Lower right panel:
Speedo adjustment switch
Display selector switch
Speedo adjustment switch
Nav/anchor lights switch
Forward bilge switch
Aft bilge switch
Blower switch
Ignition key slot
MariStar 280 STS
Upper panel:
Multi-function/tachometer (port engine)
Fuel gauge
Speedometer
Depth nder
Multi-function/tachometer (starboard engine)
Middle left panel:
Water temperature gauge (port engine)
Oil pressure gauge (port engine)
Voltmeter (port engine)
Middle right panel:
Water temperature gauge (starboard engine)
Oil pressure gauge (starboard engine)
Voltmeter (starboard engine)
Lower left panel:
Horn
Ignition switch (port engine)
Courtesy lights switch
Shower switch
Heater switch
Hatch switch
Starboard ballast switch
Port ballast switch
Lower right panel:
Tower light switch
Center bilge pump switch
Wash down switch
Blower switch
Forward/aft bilge pump
Nav/anchor lights
Ignition switch (starboard engine)
Multi-function toggle switch (port engine)
Multi-function toggle switch (starboard engine)
Speedometer calibration
