MasterCraft LASER DISTANCE FINDER/MEASURING TOOL User Manual

21
LASER DISTANCE FINDER/MEASURING TOOL - 057-4585-0
22
LASER DISTANCE FINDER/MEASURING TOOL - 057-4585-0

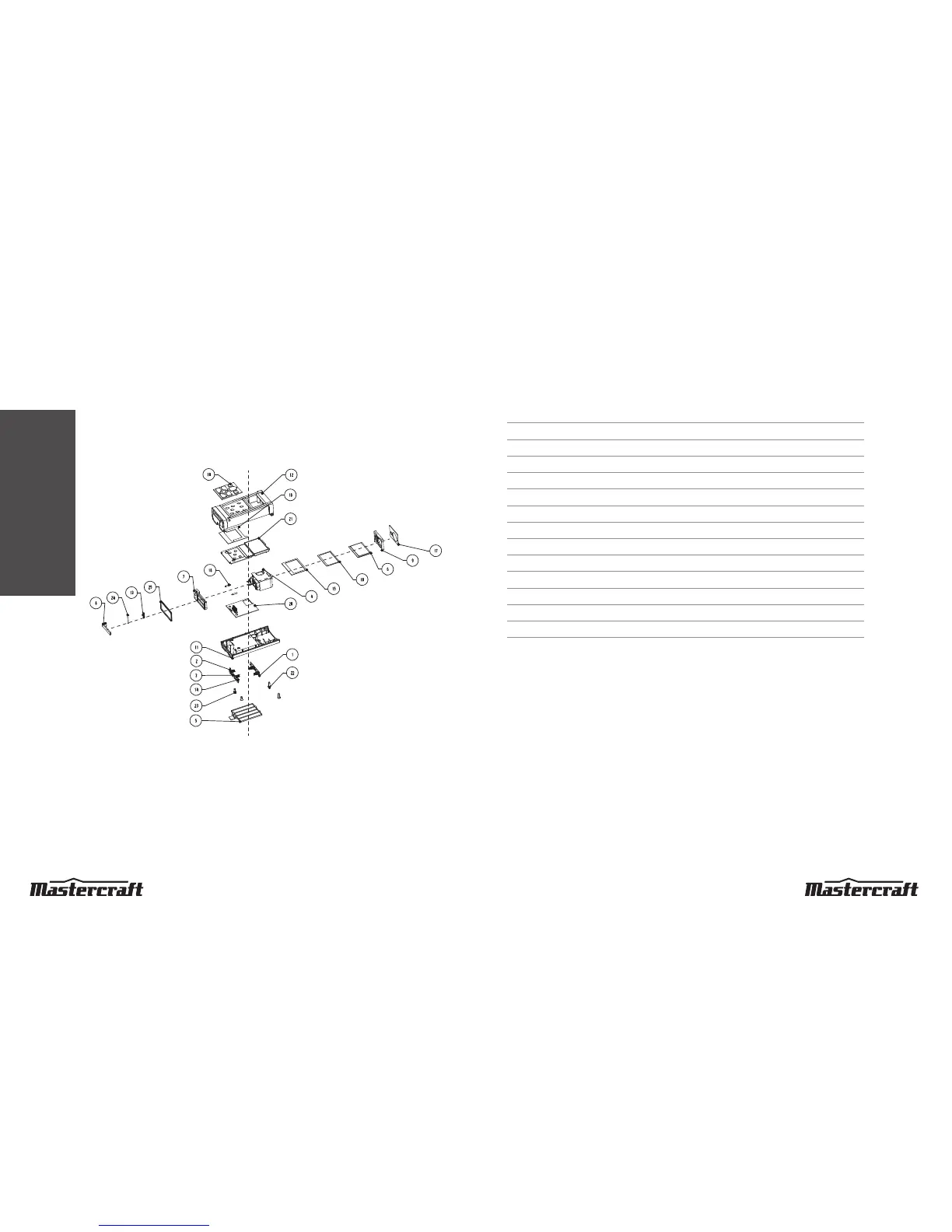

Exploded view
No. Part No. Description No. Part No. Description
1 2820226000 Contactor 14 3700479000 Positive Contactor
2 2820227000 Contactor 15 3704437000 Sponge Pad
3 2822565000 Contactor 16 3704438000 Adhesive Tape
4 2823407000 Main Support Assembly 17 3704492000 Sponge
5 3124608000 Battery Cover 18 3705522000 Paster
6 3124609000 Transparent Guard 19 4860008000 Inner Wire
7 3124610000 Cover 20 4890989000 PCB Assembly
8 3124611000 Adjusting base 21 4890920000 PCB Assembly
9 3124612000 Upper Guard 22 5610011000 Tapping Screw
10 3126711000 Push Button 23 5610075000 Tapping Screw
11 3320806000 Right Housing 24 5670252000 Pin
12 3321526000 Left Housing Assembly 25 5690181000 Seal Ring
13 3660407000 Spring
If any parts are missing or damaged, or if you have any questions,
please call the Toll-free Helpline, at 1-800-689-9928.
PARTS LIST
PARTS LIST
