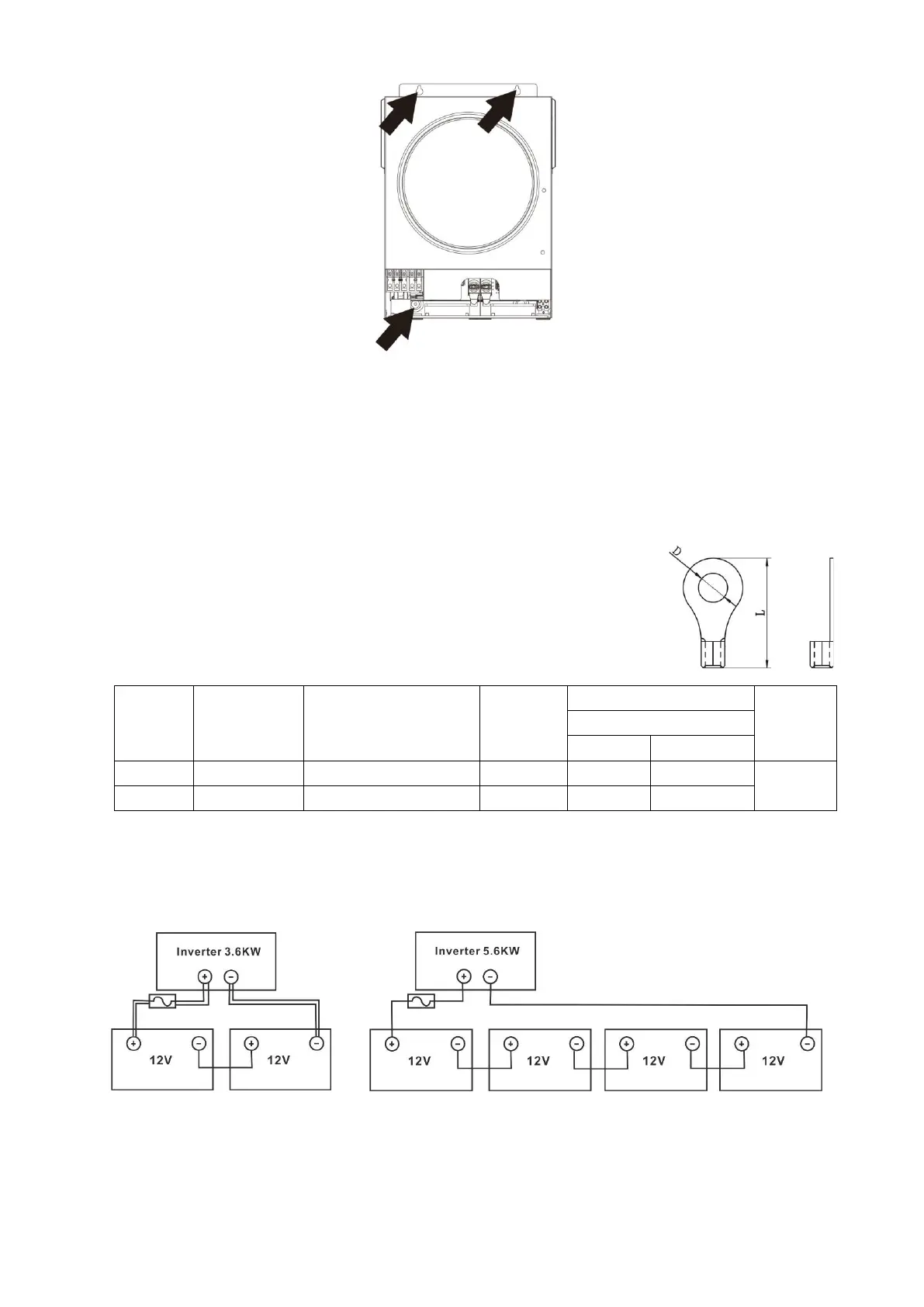

Install the unit by screwing three screws. It’s recommended to use M4 or M5 screws.
Battery Connection
CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-current
protector or disconnection device between battery and the inverter. It may not be necessary to have a
disconnection device in some applications, however, it’s still recommended to have over-current protection
installed. Please refer to typical amperage as required.
WARNING! All wiring must be performed by a qualified personnel.
WARNING! It’s very important for system safety and efficient operation to use
appropriate cable for battery connection. To reduce risk of injury, please use the
proper recommended cable and terminal size as below.
Recommended battery cable and terminal size:
Please follow below steps to implement battery connection:
1. 3.6KW model supports 24VDC system and 5.6KW model supports 48VDC system. Connect all battery packs
as below chart. It is recommend to connect minimum of 100Ah capacity battery for 3.6KW model and
200Ah capacity battery for 5.6KW model.
2. Prepare four battery wires for 3.6KW model and two or four battery wires for 5.6KW model depending on
cable size (refer to recommended cable size table). Apply ring terminals to your battery wires and secure
it to the battery terminal block with the bolts properly tightened. Refer to battery cable size for torque
value. Make sure polarity at both the battery and the inverter is correctly connected and ring terminals are
secured to the battery terminals.
