Matrix E5x-02 User Manual

42

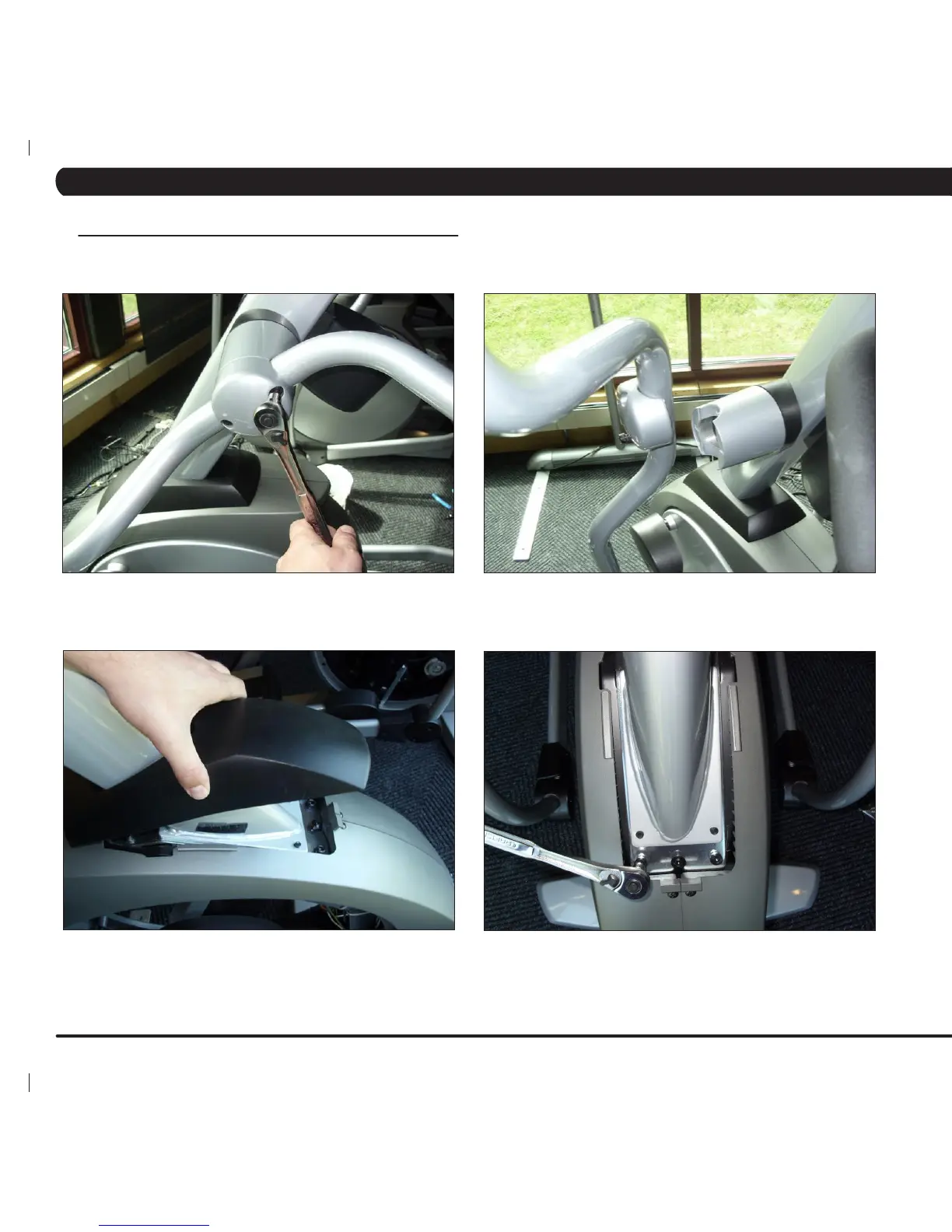

1) Remove the console as oultined in Section 8.9.
2) Remove the 2 screws on each side holding the dual action handlebars to the console mast pivot (Figures A & B).
3) Lift up the rubber boot at the bottom of the console mast (Figure C).
4) Remove the 4 screws holding the console mast onto the frame (Figure D).
5) Remove the console mast being careful to pull the console wires out of the bottom of the mast without damaging them.
6) Reverse Steps 1-5 to install a new console mast. note: Be sure to pull the console wires up through the mast before installing the 4
screws removed in Step 4.
7) Test the Elliptical Trainer for function as outlined in Section 8.21.
FIGURE A FIGURE B
FIGURE C
FIGURE D
8.15 CONSOLE MAST REPLACEMENT
CHAPTER 8: PART REPLACEMENT GUIDE
