16

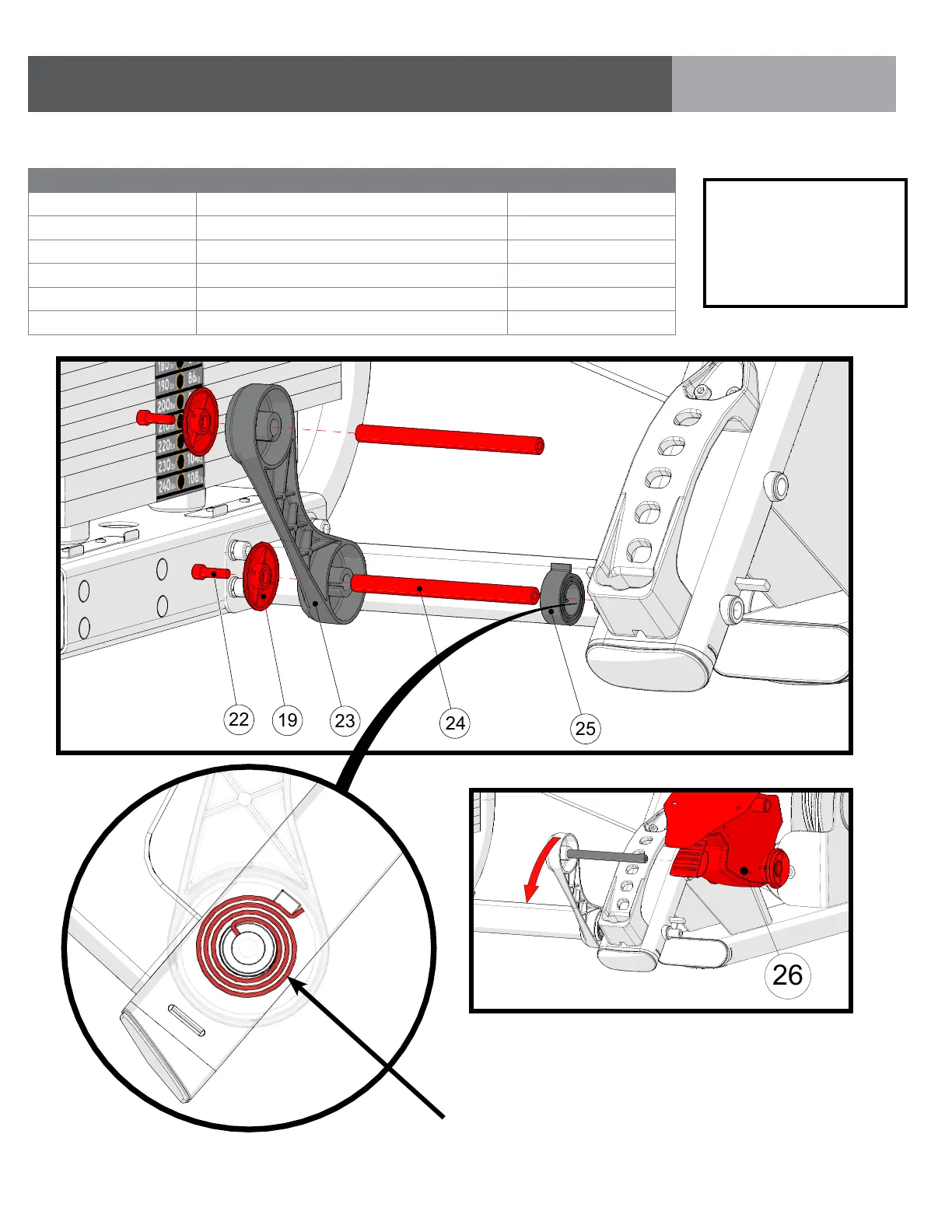

STEP 1 | SEAT LINK ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
19 Medium Pivot Cap 2
22 M8 X 25L SHC 2
23 Seat Link 1
24 Axle 2
25 Spring 1
26 Seat 1
ASSEMBLY
PART 3: SEAT ASSEMBLY
Tightento39N-m/29ft-lbs.
Outer tab of spring must be secured behind
frame reaction bar
Ensure bottom links are assembled correctly
by testing spring tension
22
19
23
24
25
26
*Note: Shoulder Press
seat assembly is shown
- but steps and compo-
nents are identical for
the Chest Press
