24
ASSEMBLY

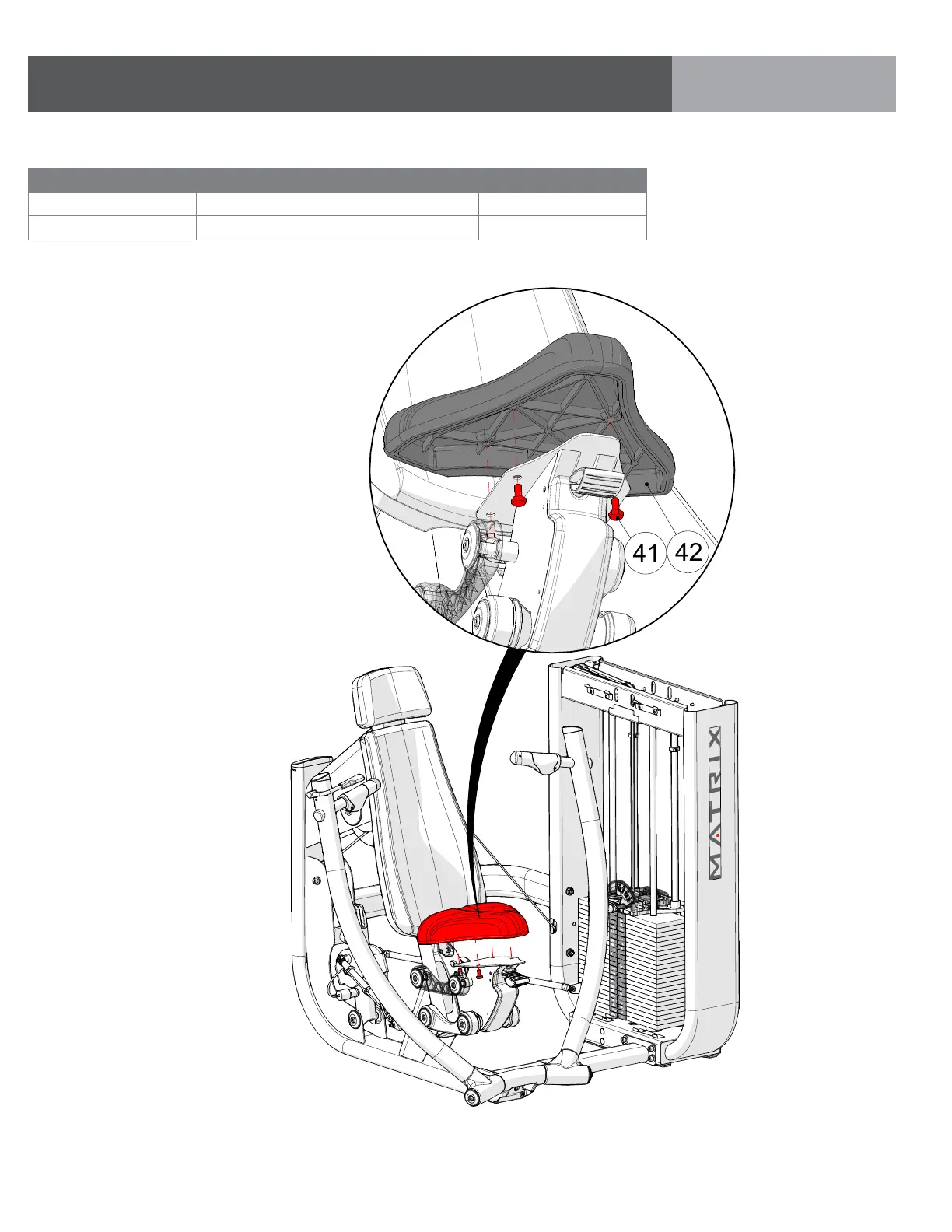

STEP 2 | BOTTOM PAD ASSEMBLY INSTRUCTIONS & NOTES
PART 5: PAD ASSEMBLY
42
41
ID DESCRIPTION QUANITY
41 Pad 1
42 M10 X 20L Hex Bolt 4
Install pad as shown.
Tightento27N-m/20ft-lbs.
