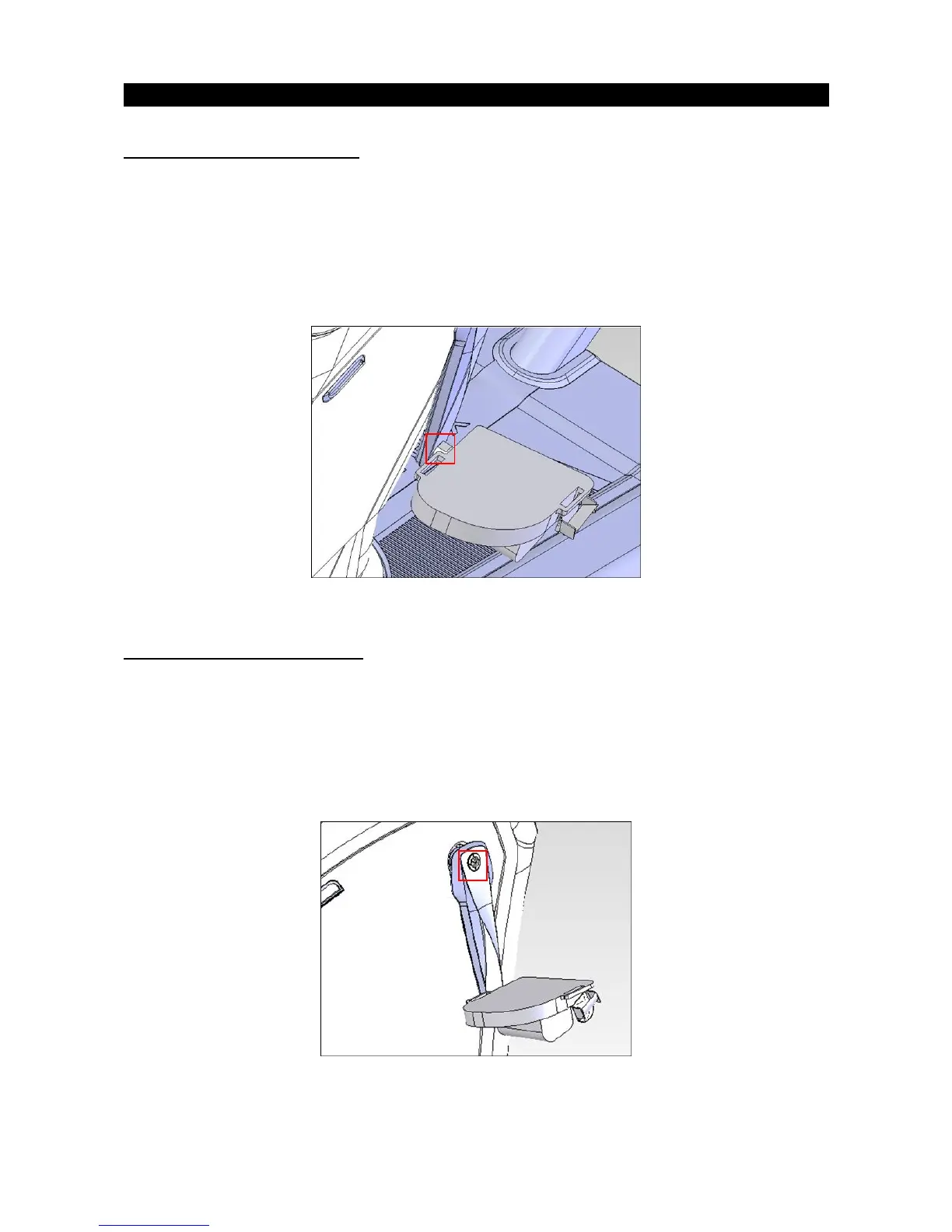

CHAPTER 4: Part Replacement Guide
4.3 PEDAL REPLACEMENT
1) Using a 15mm pedal wrench, remove the pedal while firmly holding the opposite crank arm for
leverage. (Figure A)
Note: The left pedal is reverse-threaded.
2) Install the new pedal.
FIGURE A
4.4 CRANK REPLACEMENT
1) The crank arm is fixed with a self-extracting crank bolt. You must lubricate under extractor cap before
removing the crank bolt. If this is not done, damage can happen to the crank arm or extractor.
2) With an 8mm hex key, turn the crank bolt counter-clockwise to remove crank arm. The torque is
800lbs (Figure A).
3) Reverse to replace the crank arm.
FIGURE A
