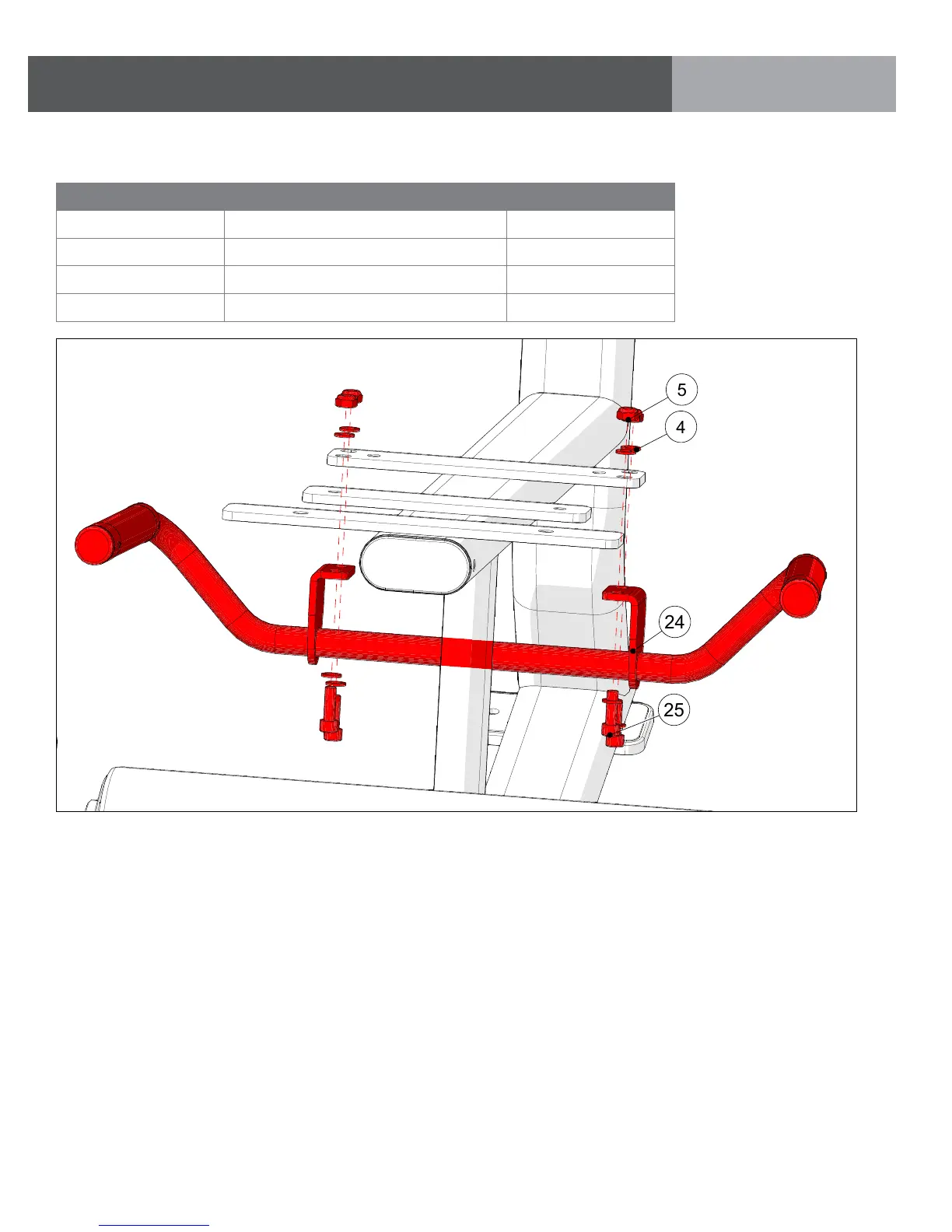

STEP 1 | HANDLEBAR ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
4 M10 Flat Washer 8
5 M10 Nylock Nut 4
24 Handlebar Assembly 1
25 M10 X 30L SHC 4
Install handlebars as shown.
Tighten to 77 N-m/57 ft-lbs.
ASSEMBLY
PART 4: PAD ASSEMBLY
25
24
4
5
