Matrix VS-S71 - Plastics Assembly: Step 2 (Top Cap); Top Cap Assembly

23
STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
12 M8 X 25L SHC 4
36 M8 Flat Washer (20 mm diameter) 4
37 Top Cap 1
36
12
37
ASSEMBLY
PART 5: PLASTICS ASSEMBLY

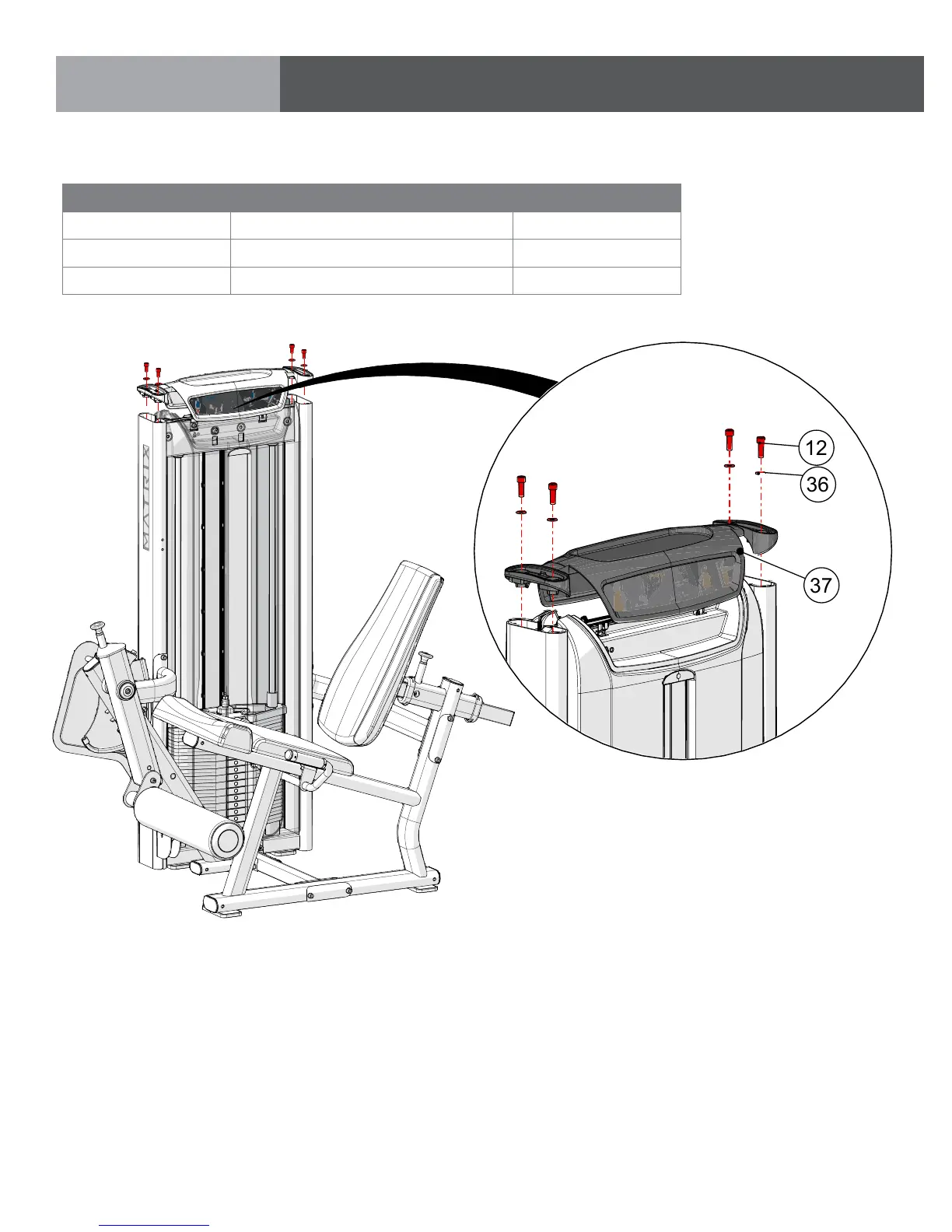

Install the top cap onto the weight stack as shown.
Torque to 17 N-m/147 in-lbs.
Position top cap so that the instructional placard faces the user.
