Built-in Dryer (versions plus)
Each AC unit (OPTIMA / MAXIMA) is supplied with a compressed
air cooling radiator. Cooling produces condensation that is unload-
ed from specic separators and drainpipes that can be applied on
the front of the machine (see this section Optional Accessories).
Many industrial applications require that the compressed air be al-
most completely emptied from the water vapour it contains so as to
prevent any further condensation from forming inside the line pipes
to which it is connected.
Hence, devices that lower the dew point by a few degrees above 0°C
should be installed.
In the plus versions the setting up of the machine includes a dryer
with a refrigerator cycle that guarantees an adequate compressed
air quality.
The design of the compressor allows for integrating a dryer with
refrigerator cycle directly installed on the machine.
An electronic controller controls the dryer, which manages its func-
tional parameters according to the different operating load cycles.
For further details on the dryer, please refer to the specic manual
supplied with the device.

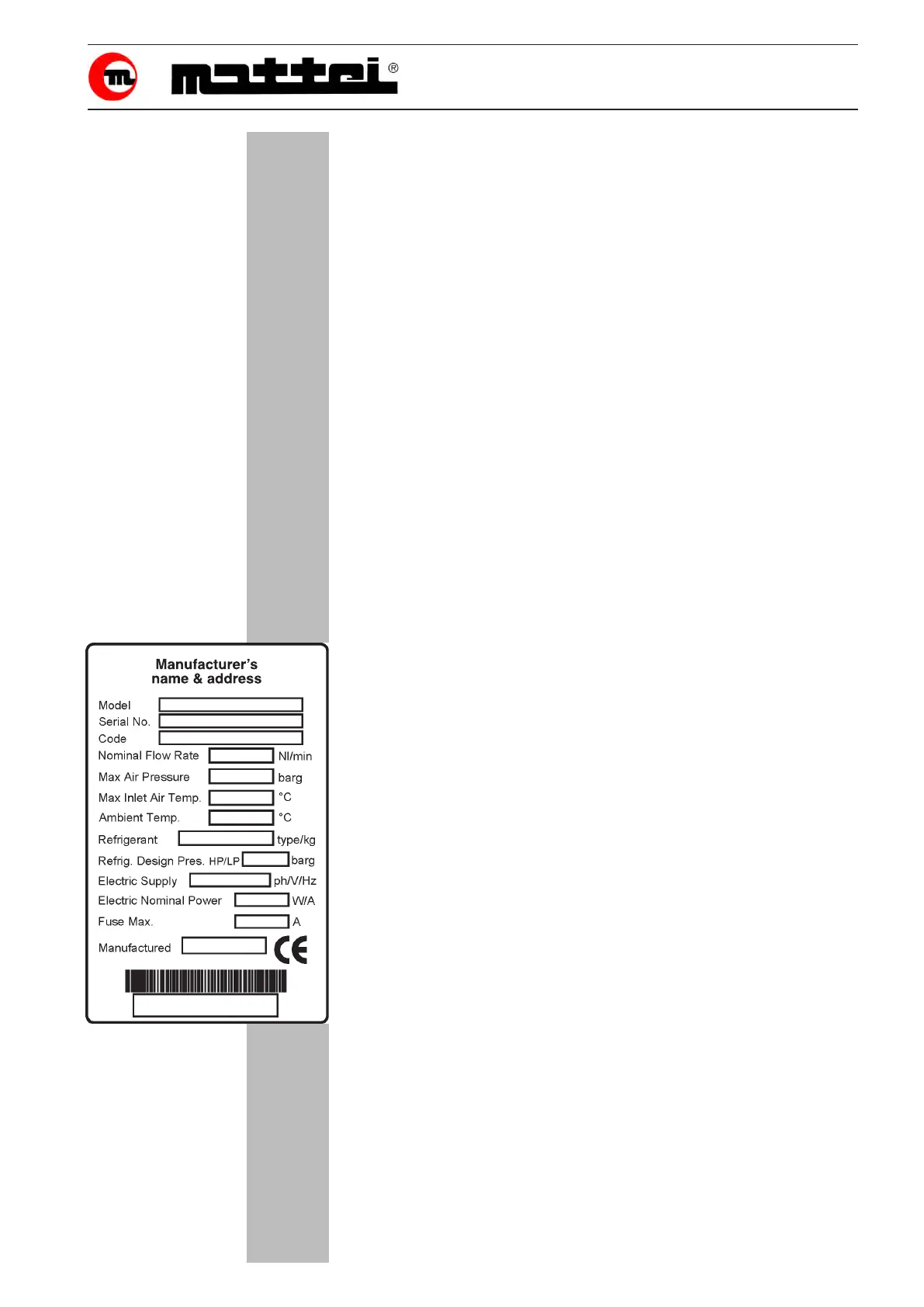

ID Plate
The product ID plate contains all the machine’s essential data.
Removing or tampering the id plate forfeits the right of guarantee.
Operating Mode
When the compressor is activated, the drier also starts after a pre-
set delay.
Alarms are inserted with 5-minute delay to allow the drier to reach
its operating mode.
Once this delay has elapsed, the alarms start and begin monitoring
the system.
Once started, the dryer compressor group stays on until the following
conditions occur:
✔ The compressor is stopped with the “STOP” push-button
✔ The dryer operating limit conditions are exceeded.
