Installation
TI008G0001
Position of compressor
In the section “Technical Data ”you can nd the
overall dimensions, the weight,and the cooling
values of the machine.
The compressor must be installed in a covered
and well ventilated area ,away form heat sources.
It can be simply placed on a solid and level oor.
It does not require any type of special foundation.
Space and ventilation around the machine are
essential.
An air-cooled compressor,driven by an electrical
motor,produces heat equal to about 85% the
absorbed power.
For the AC 6000 Series machines,having the
cooling air outlet on the canopy top panel, the di-
stance from the ceiling should not be lower than
1,5 meters.
If such a clearance is not possible, a hot air con-
veyor must be installed (see further on the sec-
tion on ducts size and heat recovery).

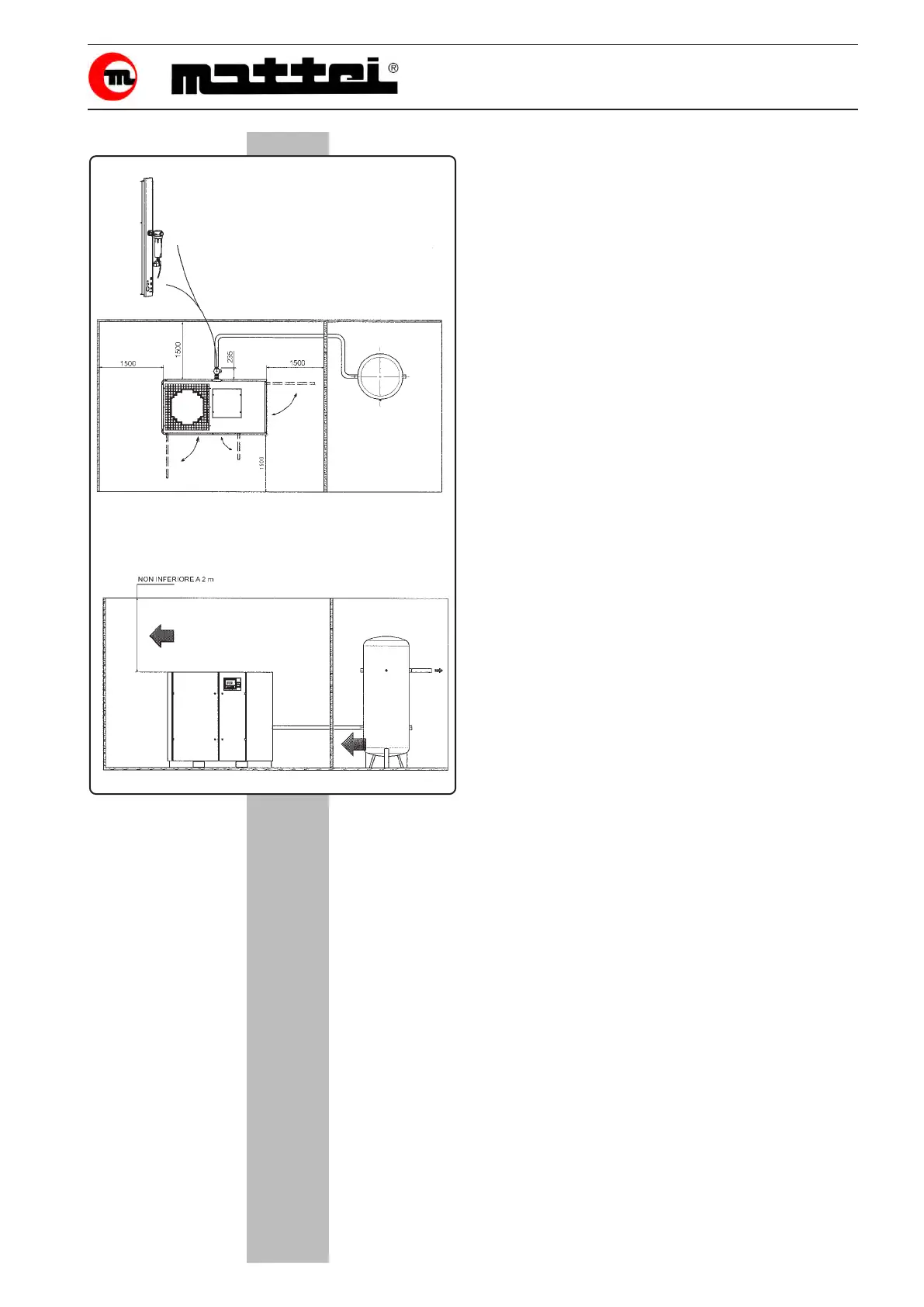

The 1,5 meter distance, free from any obstruc-
tions, should be also kept on the intake end.
To make it easier to perform checks and main-
tenance operations on the compressor leave at
least 1,5 m clearance from all other sides.
