Fully Automatic Type

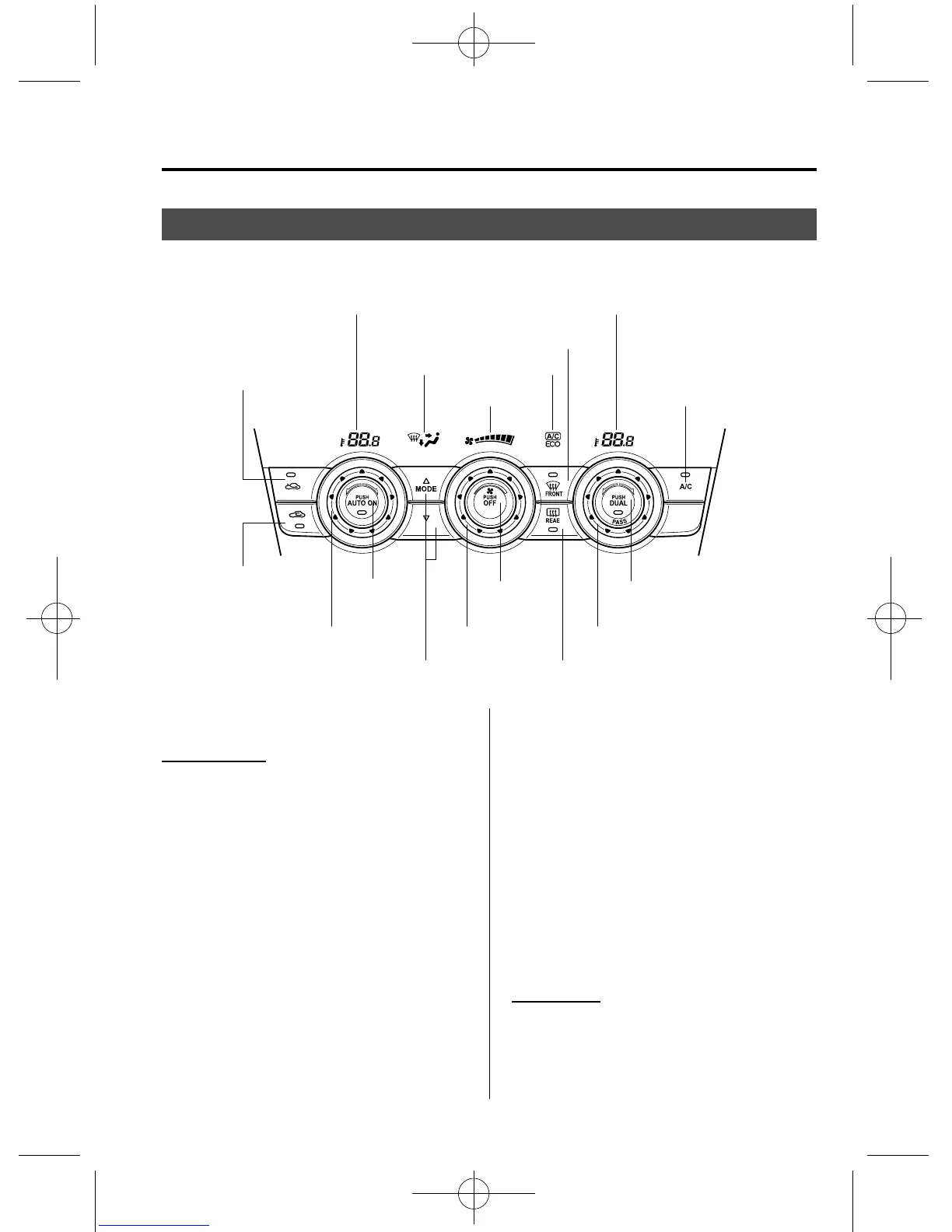

Climate control information is displayed on the display.
Airflow display
Temperature setting display (driver)
Mode selector display A/C
Temperature setting display (passenger)
Air intake selector
(recirculated air
position)
Air intake selector
(outside air position)
Driver temperature control dial
AUTO switch
Mode selector switch
Fan control dial
OFF switch
Windshield defroster switch
Rear window defroster switch
Passenger temperature control dial
DUAL switch
A/C switch
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the selected
set temperature:
l
Airflow temperature
l
Amount of airflow
l
Selection of airflow mode
l
Outside/Recirculated air selection
l
Air conditioner operation
NOTE
AUTO switch indicator light
l
When on, it indicates auto operation, and
the system will function automatically.
l
If any of the following dials or switches are
operated while in auto control, the AUTO
switch indicator turns off.
l
Mode selector switch
l
Fan control dial
l
Windshield defroster switch
The functions for dials and switches other
than those operated in the above continue
to operate in auto control.
OFF switch
Pressing the OFF switch shuts off the
climate control syst em.
Interior Features
Climate Control System
5-9
