McIntosh C49 User Manual

12
USB 25%
DSD256
IR Sensor receives commands
from a Remote Control
STANDBY/ON Push-button
with indicator, switches the C49
ON or OFF (Standby) and resets
the microprocessors
VOLUME Control allows adjustment
of the listening level for both chan-
nels. Also used to change the various
TRIM and SETUP Functions
Connection for low impedance
dynamic headphones, for private
listening
MUTE Push-button mutes
the audio from the Loud-
speakers and Headphones
INPUT Control used to select a source
for listening and recording. The control
is also used to enter the TRIM or SETUP
Modes and select the various functions
OUTPUT 1 and 2 Push-buttons
with indicators, switch the
Preamplifier Outputs 1 and 2
On or Off
INFORMATION DISPLAY indicates
the Sources, Volume, other Audio
Settings, Operational Functions and
Setup Mode Settings
TONE Push-button with indicator, when de-
activated the audio signal bypasses the Trim
Tone Controls

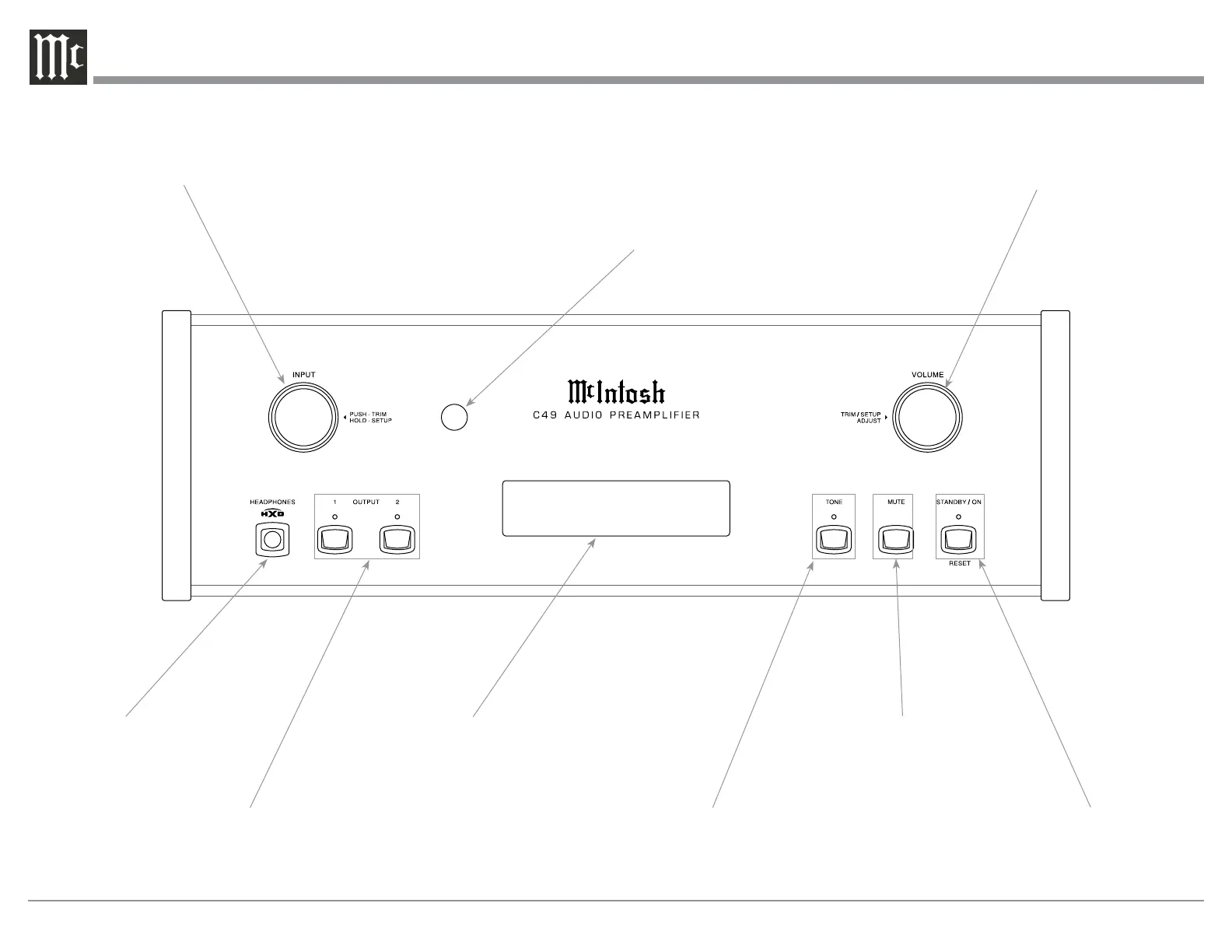

Front Panel Displays, Controls, Push-buttons and Jack
INPUT VOLUME
0
PUSH-TRIM
◄ HOLD - SETUP
0
ffltfnfosh
C49 AUDIO PREAMPLIFIER
TRI M/SE T UP, 0
ADJUST
HEADPHONES 1 OUTPUT 2 T ANOBY I ON
H)(D O 0
[g g g

McIntosh C49 Specifications

General

Brand	McIntosh
Model	C49
Category	Amplifier
Language	English
