23
Packing Instructions

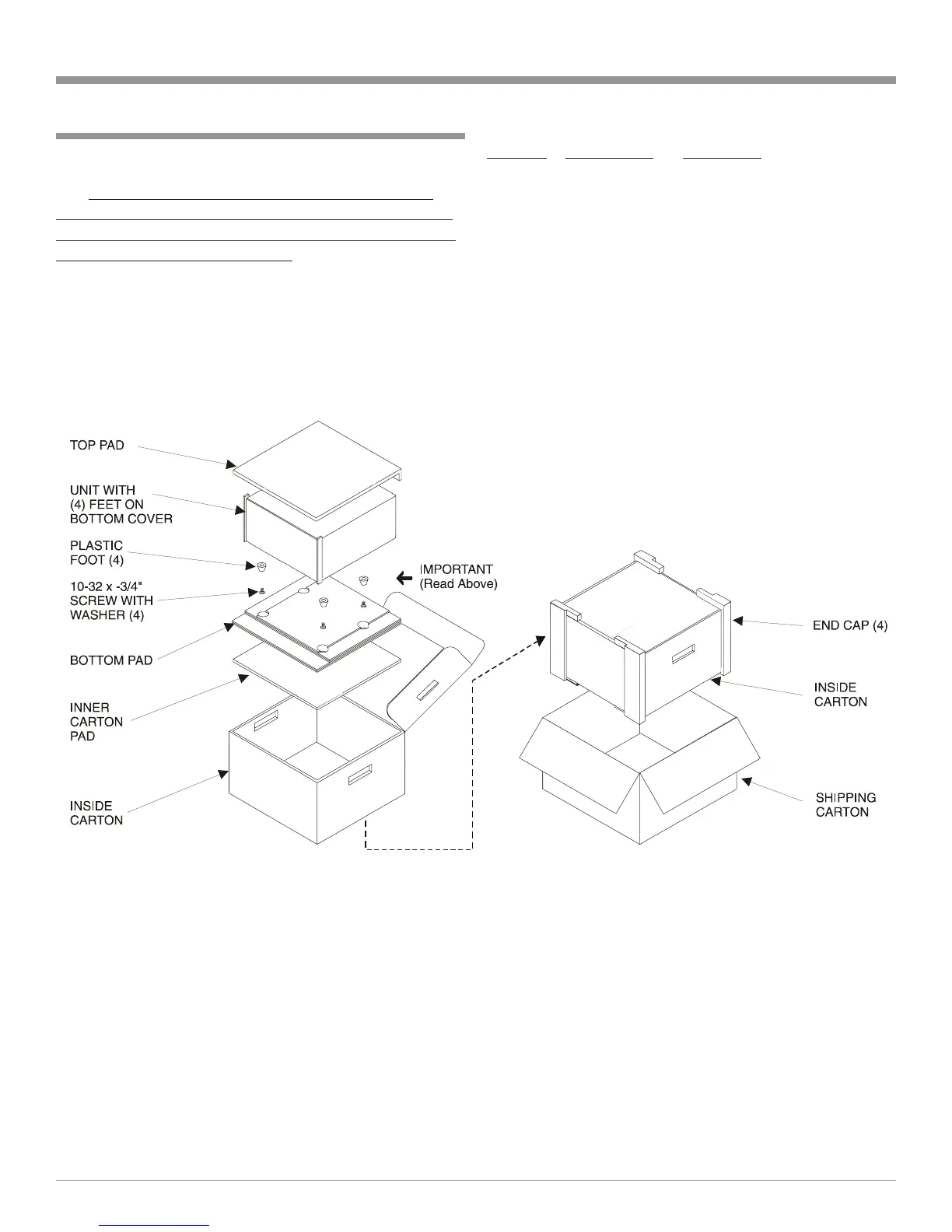

In the event it is necessary to repack the equipment for ship-
ment, the equipment must be packed exactly as shown be-
low.
It is very important that the four plastic feet are at-
tached to the bottom of the equipment. This will ensure the
proper equipment location on the bottom pad. Failure to do
this will result in shipping damage.
Use the original shipping carton and interior parts only if
they are all in good serviceable condition. If a shipping car-
ton or any of the interior part(s) are needed, please call or
write Customer Service Department of McIntosh Labora-
tory. Please see the Part List for the correct part numbers.
Quantity Part Number Description
1 034075 Shipping carton only
4 033837 End cap
1 034076 Inside carton only
1 033726 Top pad
1 034255 Bottom pad
1 034077 Inner carton pad
4 017937 Plastic foot
4 100159 #10-32 x 3/4” screw
4 104083 #10-7/16” Flat washer
Packing Instructions
