AGR 070A through 100A Product Manual AGR-3
Pressure Drop Curves

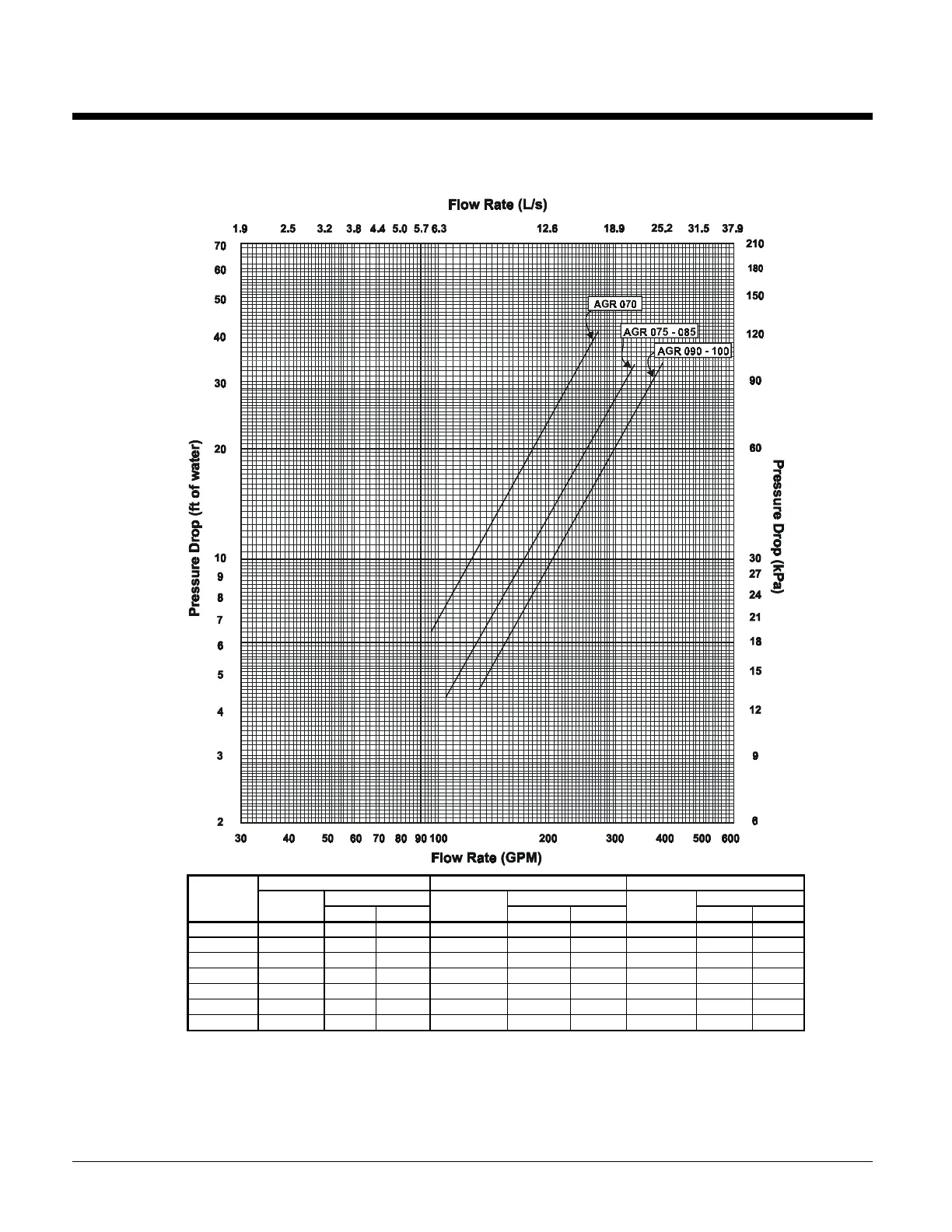

Figure 9, Evaporator Pressure Drops
NOMINAL MAXIMUM MINIMUM
Flow Flow Flow
Unit
Size
PD
(ft) of Water
(gpm) (lps)
PD
(ft) of Water
(gpm) (lps)
PD
(ft) of Water
(gpm) (lps)
070AS/AM 16.0 162 10.22 40.5 270 17.04 6.8 101 6.39
075AS/AM 9.6 168 10.60 24.0 280 17.67 4.3 105 6.62
080AS/AM 11.7 187 11.80 29.6 312 19.66 5.1 117 7.37
085AS/AM 13.5 203 12.81 33.3 338 21.35 5.9 127 8.00
090AS/AM 10.5 208 13.12 26.3 347 21.87 4.5 130 8.20
095AS/AM 12.0 226 14.26 30.0 377 23.76 5.2 141 8.91
100AS/AM 13.4 240 15.14 33.6 400 25.24 5.7 150 9.46
Note
: Minimum and maximum flows are established to ensure the Delta-T for each unit size falls within the 6 - 16°F range for
proper unit control. Contact factory for unit operation outside of minimum and maximum flows shown.
