Product Manual AGR-3 AGR 070A through 100A
33
Dimensional Data
Packaged Chiller, AGR-AS

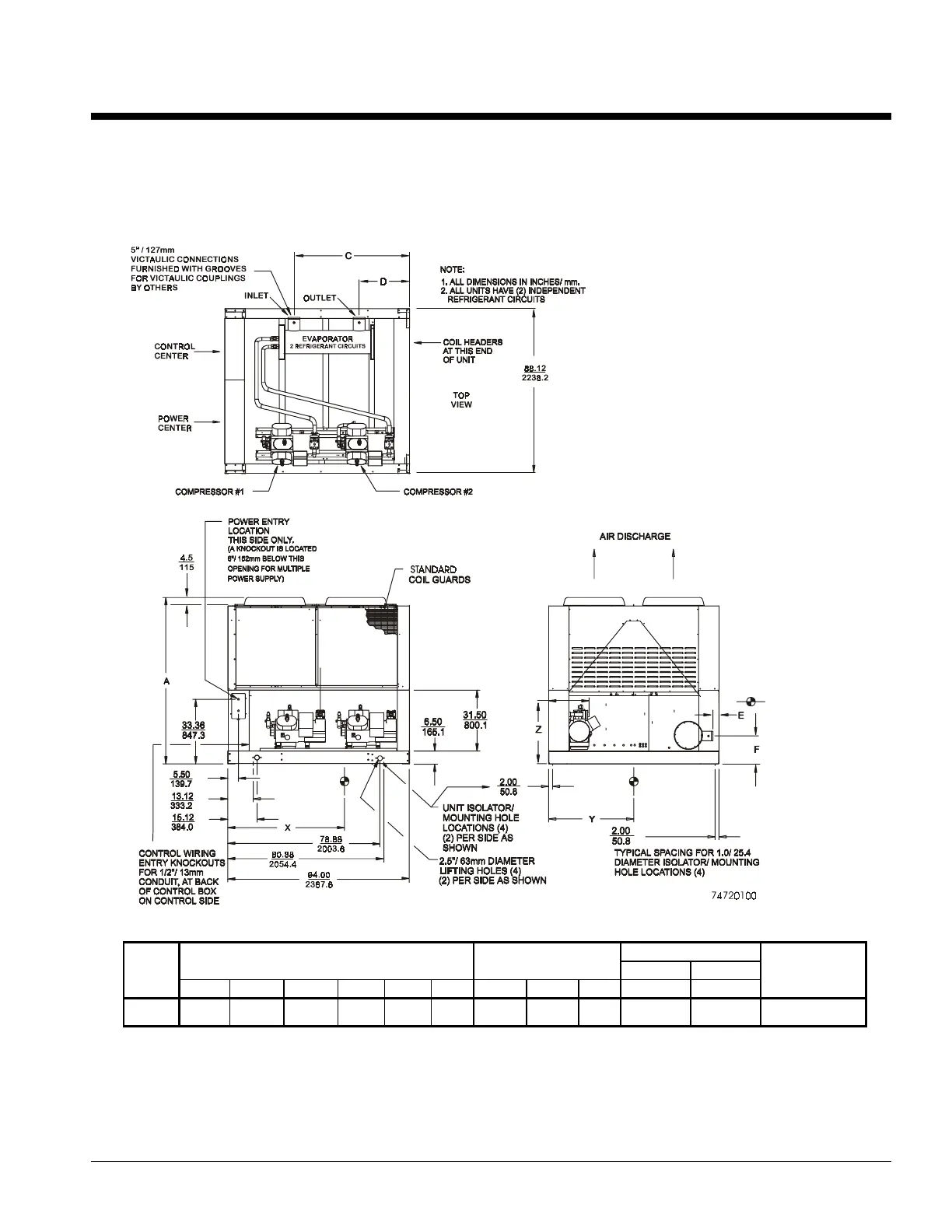

Figure 12, Dimensions AGR 070AS
Weights
Dimensions
Center of Gravity
inch (mm)
Operating Shipping
AGR
Model
Number
A B C D E F X Y Z lb (kg) lb (kg)
Additional Weight
with Copper
Fin Coils lb (kg)
070AS
96.2
(2444)
91.7
(2329)
60.0
(1525)
23.9
(607)
4.3
(108)
16.0
(406)
45.0
(1143)
41.8
(1062)
38.8
(986)
4755
(2155)
4650
(2107)
830
(375)
