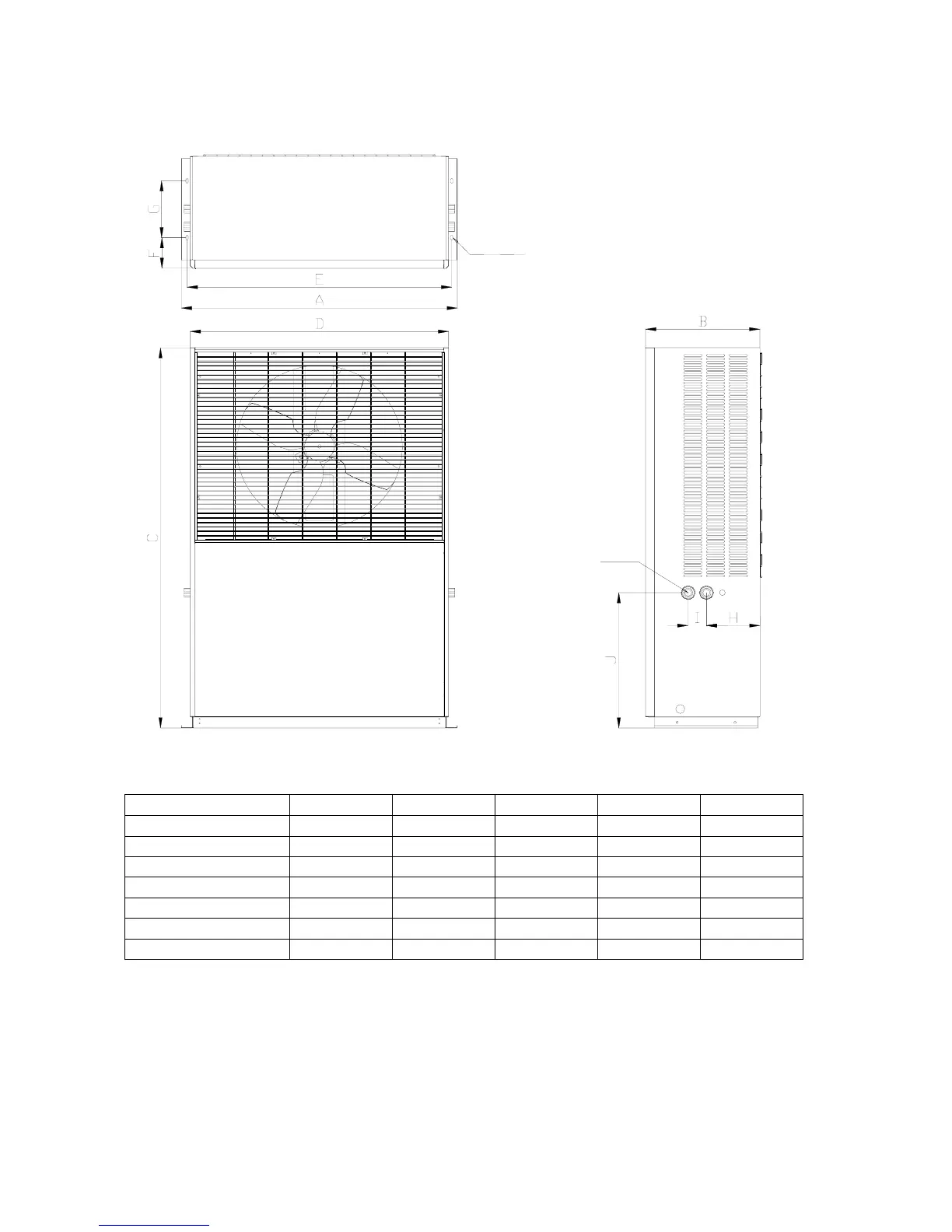

Outlines and Dimensions
Model: MAC 030C(R)/035C(R)/040C(R)/050C(R)/065C(R)/070C(R)
UNIT: mm
A B C D E
MAC030/035C(R)
922 382 1250 841 882
MAC040/050C(R)
1004 406 1560 927 970
MAC065/070C(R)
1212 502 1700 1135 1162
F G H I J
MAC030/035C(R)
86 231.5 90 75 531.5
MAC040/050C(R)
80 267 167.5 124.5 556
MAC065/070C(R)
132 254 235 80 604.5
2- Rc1
4- 10X20
Page 21
