McQuay MAC 100 CR Installation And Maintenance

Parts List and Exploded View

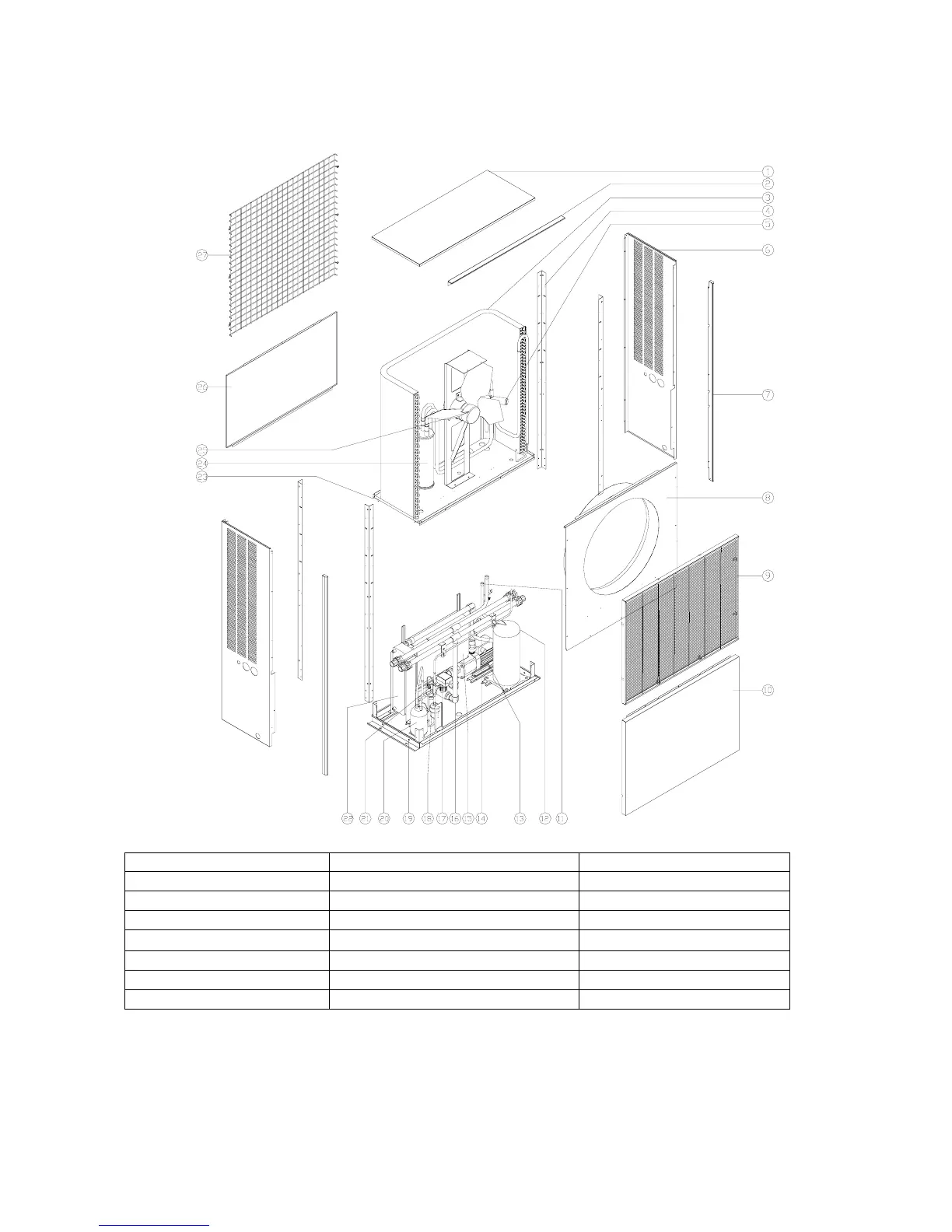

Below is the structure of MAC065CR, units of MAC035C(R) to MAC070C(R) similar to this.
LEGEND:
1.Top panel 2.Horizontal ornament piece 3.Heat exchanger
4.Vertical support(4pcs) 5.Four way valve assy. 6.Side panel
7.Vertical ornament piece 8.Air discharge 9.Air discharge guard
10.Front panel 11.Discharge pipe &pressure switch assy. 12.Compressor
13.Water pump 14.Suction pipe & pressure switch assy. 15.Electrical box
16.PP-R water pipe(1set) 17.Water flow switch 18.Filter drier
19.Base pan assy. 20.Receiver 21.Cap.tube & check valve assy.
22.BPHE 23.Drain pan 24.Accumulator
