123Retractable hardtop
Technical
data
Instruments
and controls
Operation Driving
Instrument
cluster display
Practical hints Car care Index
Raising Hardtop
1. Engage parking brake.
2. Turn key in steering lock to position 2.

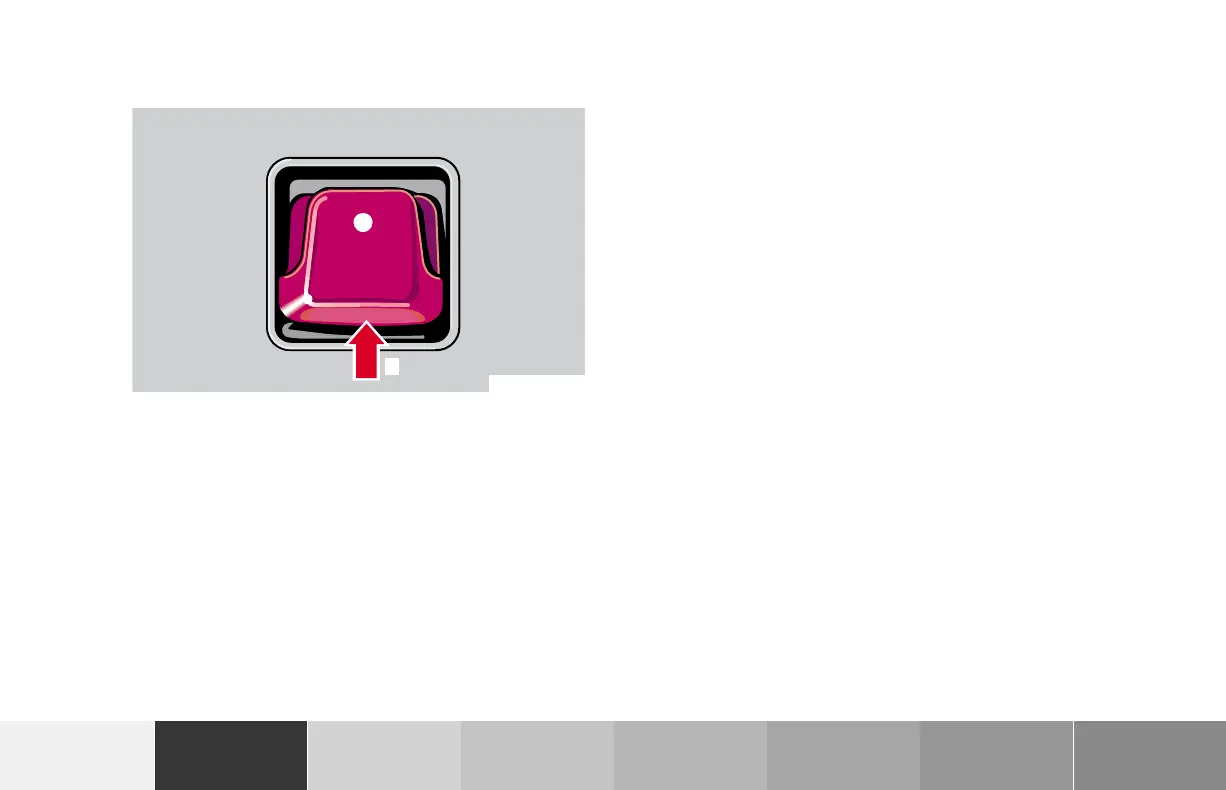

3. Slide hardtop switch forward (2) and hold:
• The indicator lamp in the hardtop switch lights
up.
Note:
If indicator lamp blinks slowly, a malfunction
has occurred in the system.
If indicator lamp blinks rapidly, the trunk lid
and/or the luggage cover may be open, and need
to be closed.
• The door windows lower.
• The trunk lid opens rearward.
• The hardtop is raised from its storage
compartment, simultaneously the shelf behind
roll bars opens and rear quarter windows close.
• The shelf behind the roll bars closes.
• The trunk lid closes, and the hardtop locks.
• The indicator lamp in the hardtop switch goes
out - the closing procedure is completed.
2
P77.39-2031-26
