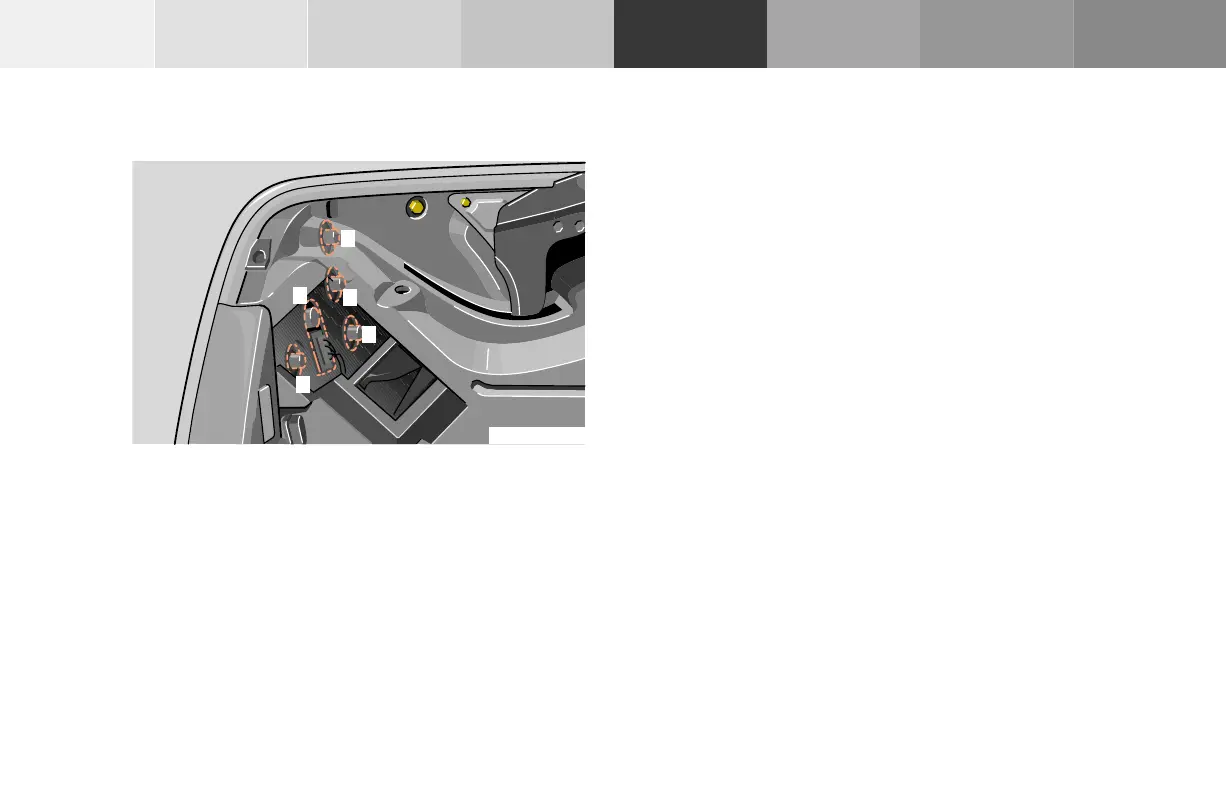

Taillamp assemblies
1 Stop Lamp (1154 21W/32 cp bulb)
2 Turn signal lamp (1156 NA 21 W/24 cp bulb)
3 Tail, parking and standing lamp (67 5W/4 cp bulb)
4 Backup lamp (1154 21 W/32 cp bulb)
5 Driver’s side:
Rear fog lamp (1155 21W/ 32 cp bulb)
Open trunk lid:
Remove cover in right side panel, and first aid kit in left
side panel.
Twist bulb socket counterclockwise and pull out. Push
bulb into socket, turn counterclockwise and remove.
Insert new bulb in socket, push in and twist clockwise.
Reinstall bulb socket, and close cover.
