Vehicle jack
1 Jack base
2 Handle
3 Pin

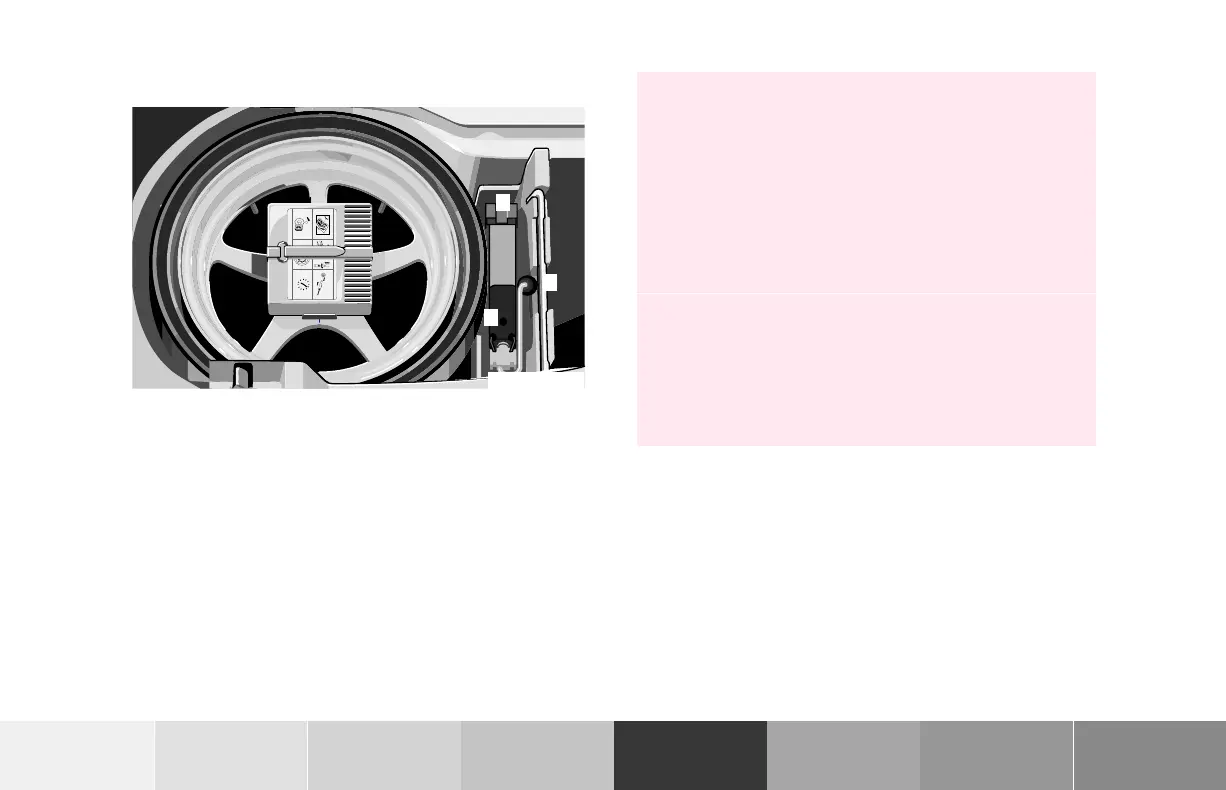

See illustration for proper storage of jack.
Before storing the jack in its holder in the spare wheel
well, lower jack arm and fold in handle and pin.
1
0
456
max. 6 min
A 170 584 01 38 AIR COMPRESSOR
23
Mercedes-Benz
2
3
2
1
1
2,5 bar
36 psi
1
0
2
3
4
5
6
20
PSI
BAR
40
60
80
LUFTPRESSER
1
2
P58.10-2019-26
1
2
3
Warning!
The jack is designed exclusively for jacking up the
vehicle at the jack tubes built into either side of the
vehicle. To help avoid personal injury, use the jack
only to lift the vehicle during a wheel change.
Never get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from the area
under the lifted vehicle. Always firmly set parking
brake and block wheels before raising vehicle with
jack.
Do not disengage parking brake while the vehicle is
raised. Be certain that the jack is always vertical
when in use, especially on hills. Always try to use
the jack on level surface. Be sure that the jack arm
is fully inserted in the jack tube. Always lower the
vehicle onto sufficient capacity jackstands before
working under the vehicle.
To Next Page
