16-speed transmission
General notes

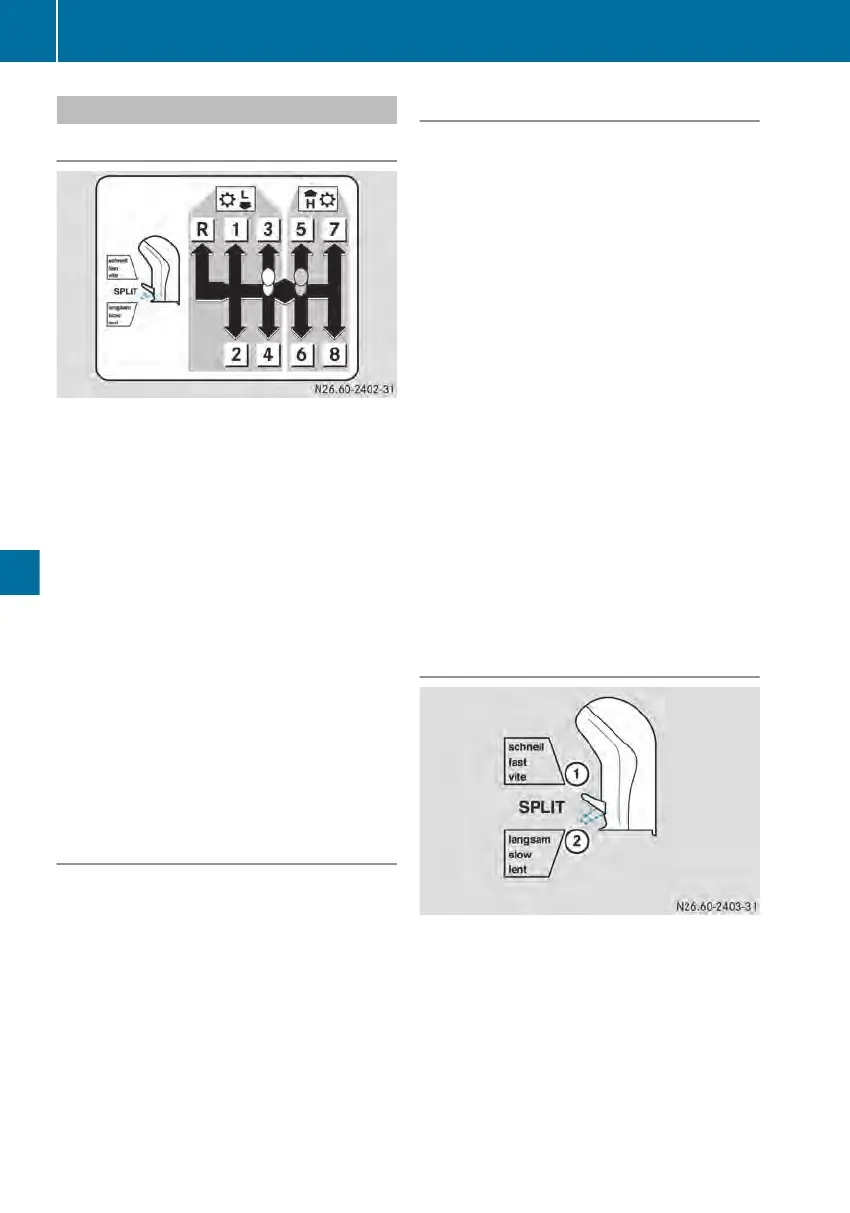

Gearshift pattern
The 16-speed transmission is a manually
operated
gearbox. The transmission is equip-
ped with a double-H gearshift.
The additional gear reduction means that you
can select a total of 16 forward gears and 2
reverse gears.
When in neutral position, the gear lever is in
the gate between the 3rd and 4th gear and
the 5th and 6th gear.
The shift ranges of the transmission are divi-
ded into:
R
the low shift range "L" with gears 1 to 4
and reverse gear k
R
the high shift range "H" with gears 5 to 8
R
the splitter groups with the switch on the
front side of the gear lever
Gearshift options
You can shift gears:
R
in the selected low-range splitter group,
e.g. off-road driving
R
in the selected high-range splitter group,
e.g. on-road driving
R
between low-range and high-range splitter
groups, e.g. when the vehicle is laden
Changing the shift range
!
Observe the following maximum permis-
sible
speed when changing shift range from
the fast to the slow group.
When driving in the off-road gear of the
transfer case, do not exceed the maximum
speed of 15 km/h when changing gear.
When driving in the road gear or when driv-
ing a vehicle without a transfer case, main-
tain a vehicle speed of less than approx-
imately 20 km/h when changing gear.
If you change from the high-range group to
the low-range group at high speed, the
transmission may be damaged.
X
Depress the clutch pedal.
X
Shift the gear lever to neutral.
X
Overcome the gear lever pressure point
between
the shift ranges with a gentle side-
ways tap of the hand on the gear lever.
X
After approximately 1 second, select the
desired gear without using excessive force.
X
Slowly release the clutch pedal.
Selecting the splitter group
By selecting a splitter group, you select a low-
range
or high-range ratio for the gear selected
without changing the gear itself.
X
Move the splitter switch to the upper posi-
tion for high-range splitter group : or to
248
Manual transmission
Driving mode
