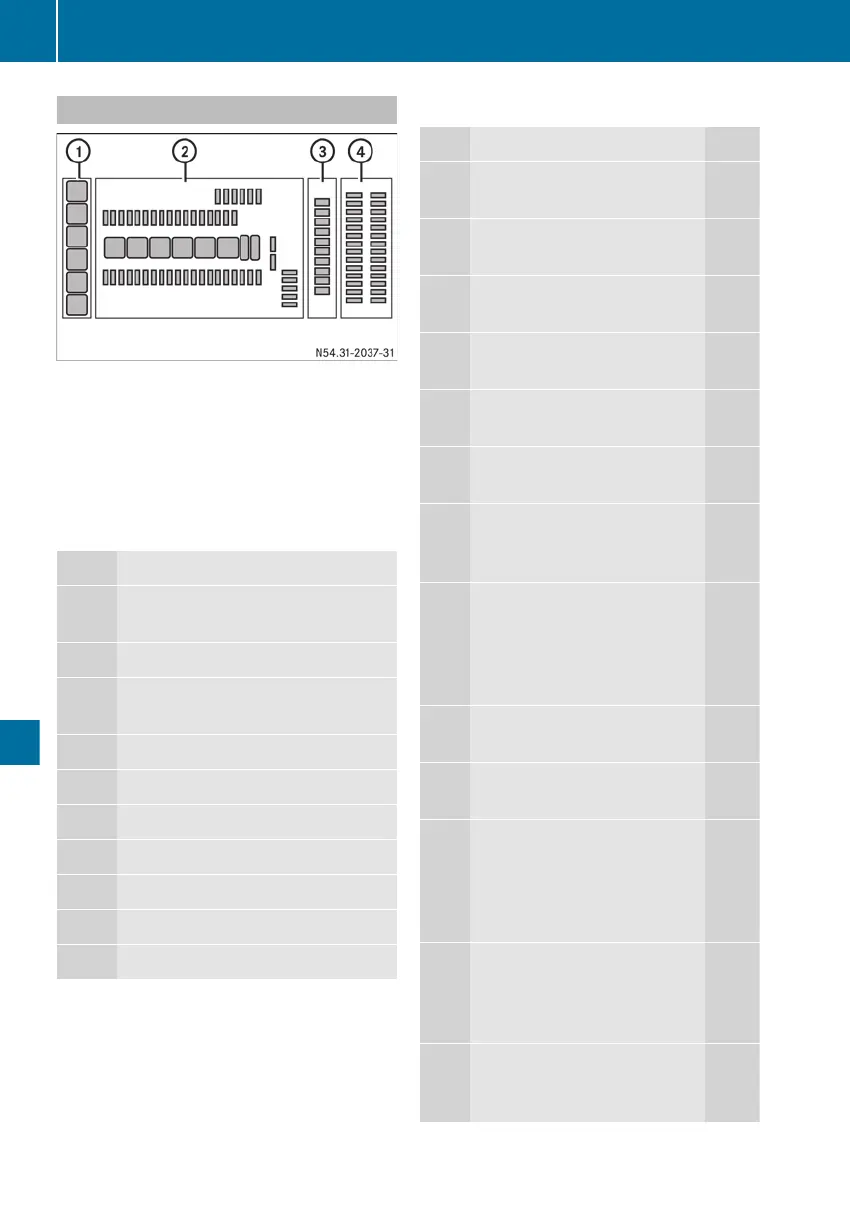

Layout of the fuses
Main fuse carrier
:
Relays in module A32
;
Fuses, relays and diodes in the base mod-
ule (GM)
=
Relays in module A31
?
Fuses in modules A1 and A2
Relays in module A31:
Consumer
K1 Working-area lamp, exchange
dropside body
K2 Transfer case oil cooler
K3 Fuel prefilter heater with water sep-
arator
K4 Loading tailgate
K5 Loading tailgate
K6 Radio 12 V terminal 58
K7 Radio 12 V terminal 15R
K8 Auxiliary headlamps (terminal 58)
K9 Interior lighting for low roof
K10 Interior lighting for low roof
Fuses in base module (GM) for SCA:
Consumer
F1 Brake system
(terminal 30.1)
20 A
F2 Control unit on the driver's
door
20 A
F3 Control unit on the passeng-
er's door
20 A
F4 Drive control, speedometer
(terminal 30)
20 A
F5 Programmable special mod-
ule, distribution
terminal 30
15 A
F6 Blower, auxiliary air condi-
tioning
25 A
F7 Radio/navigation, voltage
transformer
24 V/12 V, 18 A
distribution terminal 30
25 A
F8 Voltage transformer 24 V/
12 V, 10 A
, auxiliary heater,
adaptive route calculator
control unit, coolbox
terminal 30
20 A
F9 Diagnostics connection
(terminal 30)
10 A
F10 Heater, driver assistance
system terminal 30
10 A
F11 Tyre pressure monitor, fleet
management system, tele-
phone, Toll Collect, rear wall
stowage compartment lamp,
reading lamp
terminal 30
10 A
F12 Sliding sunroof, steering
wheel angle sensor, ATA
(anti-theft alarm system),
LSVA
(terminal 30)
15 A
F13 Level control, retarder,
hydrodynamic clutch (turbo
retarder clutch) terminal 30
25 A
384
Electrical fuses
Breakdown assistance
