Example: foldable upper bed
X

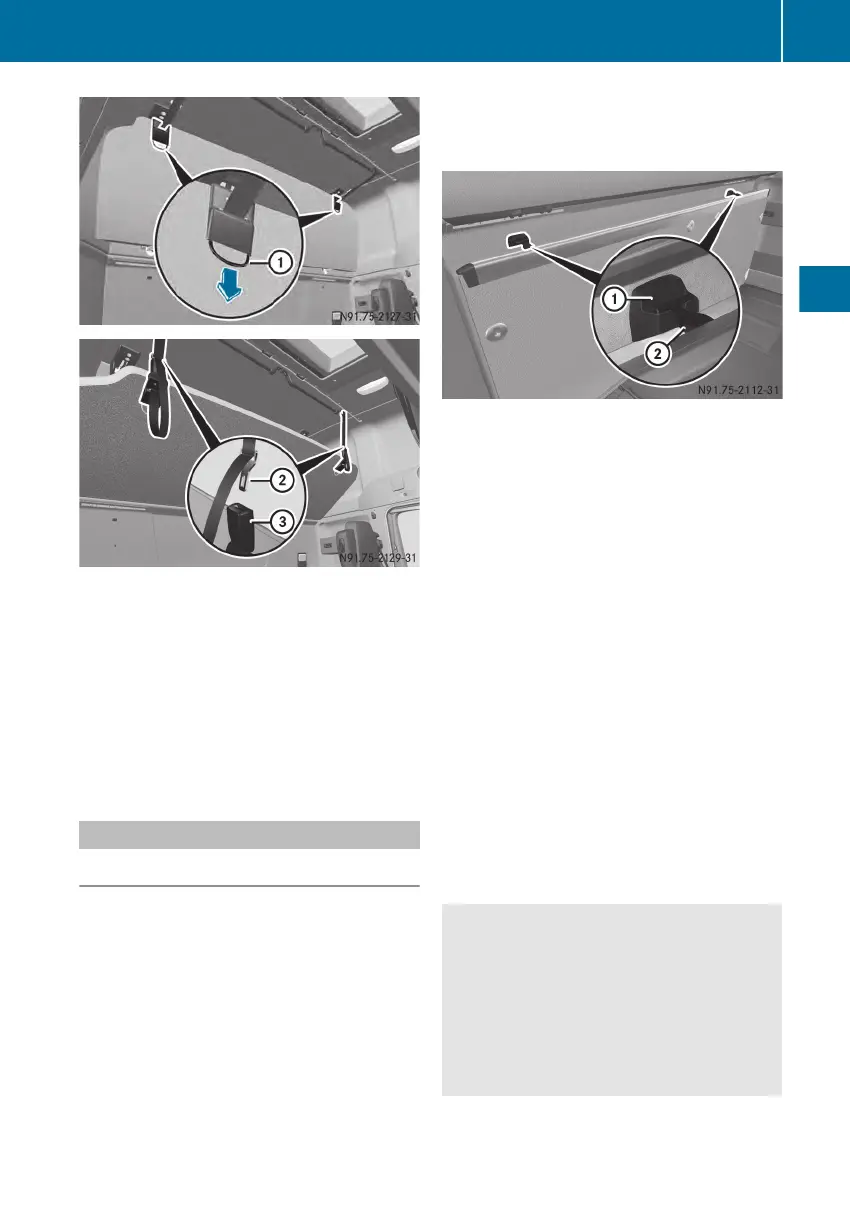

To fold down: pull release handle :.
X
Swing the bed downwards.
X
To move to the stowage position: fold
the bed upwards to the half-way point.
X
Engage belt tongues ; in belt buckles =.
X
To fold up: fold the bed upwards until it
engages audibly.
Lower bed
Lower bed
Folding the bed up/down
!
Make sure that the bed does not hit the
seats
when you fold it up or down. Swing or
fold the backrests of the driver's and co-
driver's seats forward or adjust the seats
further forward. The bed can otherwise hit
the seats and damage both components.
!
For safety reasons, fold the bed down
before starting the journey. Otherwise, the
rubber retainers may come loose from the
wall brackets in the event of an accident.
The
bed folds down and may be damaged or
may damage other components.
Example: lower bed
Folding up
X
Adjust or fold the driver's and co-driver seat
backrests forward.
X
If necessary, move the driver's and co-
driver seats sufficiently forward.
X
Fully lower the adjustable backrest of the
bed.
X
Fold the bed up and press and hold it
against the rear wall.
X
Hook retaining bands ; into both wall
brackets :.
Folding down
X
Press and hold the bed against the rear
wall.
X
Unhook rubber retainers ; from wall
brackets :.
X
Swing the bed downwards.
Setting up the safety net
G
WARNING
A vehicle occupant cannot be restrained if the
vehicle
occupant is on the bed while the vehi-
cle is in motion and the safety net has not
been fitted. There is a risk of serious or even
fatal injuries.
Always fit the safety net before a vehicle occu-
pant uses the bed.
Beds in an L cab
85
Driver's workstation
Z
