Mercedes-Benz M 447 hLAG User Manual

Functional Description of EGM
_____________________________________________________________________
Status September 2003 (EvoBus-Service / AFT) Page: 32 of 83

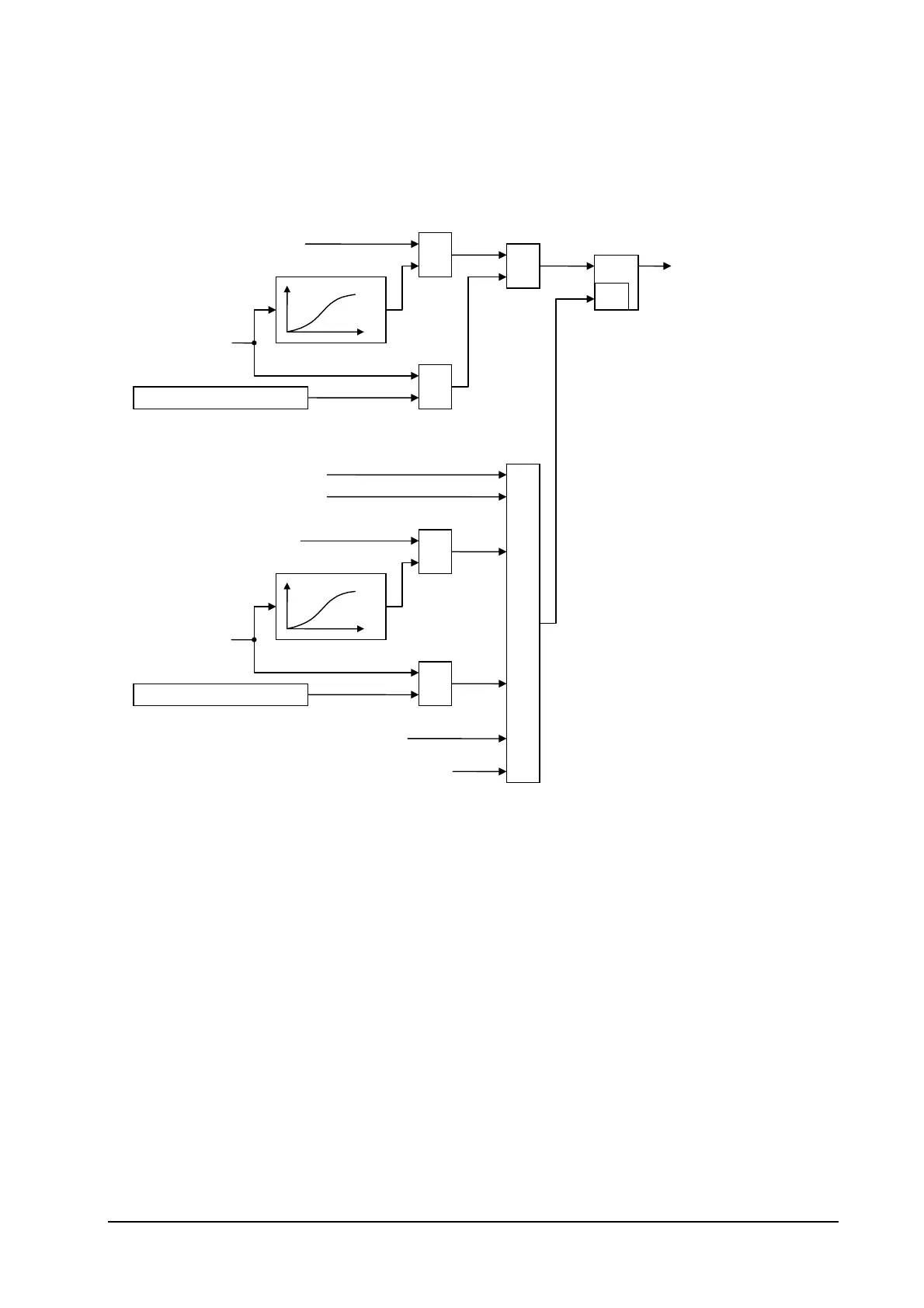

Switch-on conditions for boost-pressure control
Speed threshold for ATL ON is 400 rpm
Speed threshold for ATL OFF is 300 rpm
Engine speed
ATL controller ON
Speed threshold ATL on
Target boost pressure
>
Characteristic curve
>
Engine speed
Speed threshold ATL off
Target boost pressure
Caracteristic curve
<
<
≥
1
B.-press. threshold ATL onn
B.-press. threshold ATL off
Fault memory entry 1415
S Q
R
Prop. valve 1 alternative function activated
Supply Bank 1 off
Title: ATL- Einschaltbedingungen
File: kd_atl_esb.vsd
Datum der letzten Änderung: 2001-09-13
&
Switch-on conditions
Fault memory entry 1416
Switch-off conditions
