Mercedes-Benz M 447 hLAG User Manual

Functional Description of EGM
_____________________________________________________________________
Status September 2003 (EvoBus-Service / AFT) Page: 36 of 83

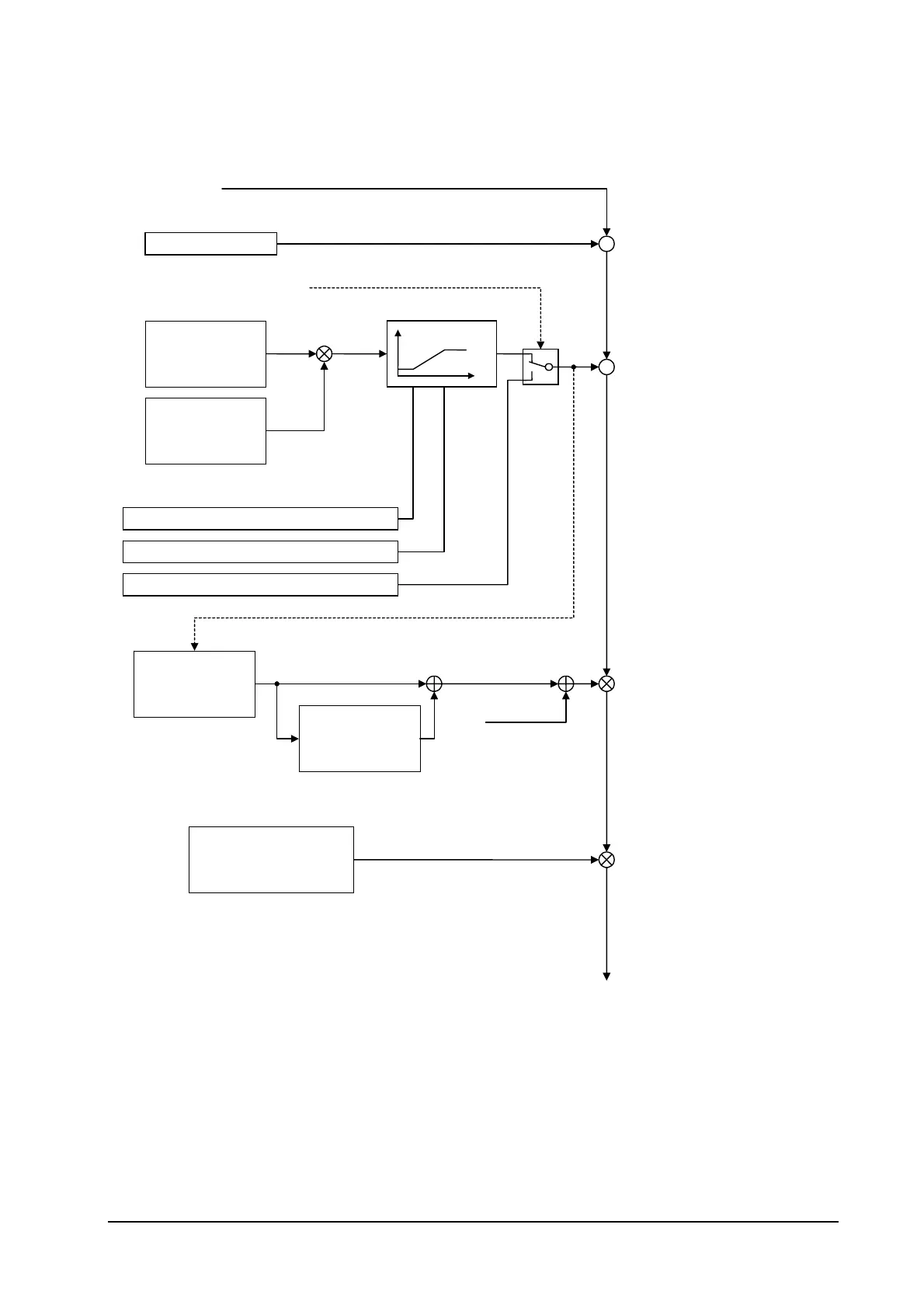

Overview: gas mass calculation in normal operation
Basic adjustment
Mass ratio
Warm-up correction
:
Gas mass
:
Air mass
g/stroke
Gas mass
(uncorrected) [g/stroke]
Gas injection/gas mass determination in normal case
File: kd_gas_m_best.vsd
Datum: 08.10.2000
Air mass
Basic
factor
Warm-up
-
factor
Limitation
Basic adjustment if fault in lambda control
Fault in lambda control
Dynamic
correction functions
Basic adjustment MAX limitation (lambda)
Basic adjustment MIN limitation (lambda)
Lambda control
Lambda-
correction factor [%]
Lambda
mean value
formation
1
