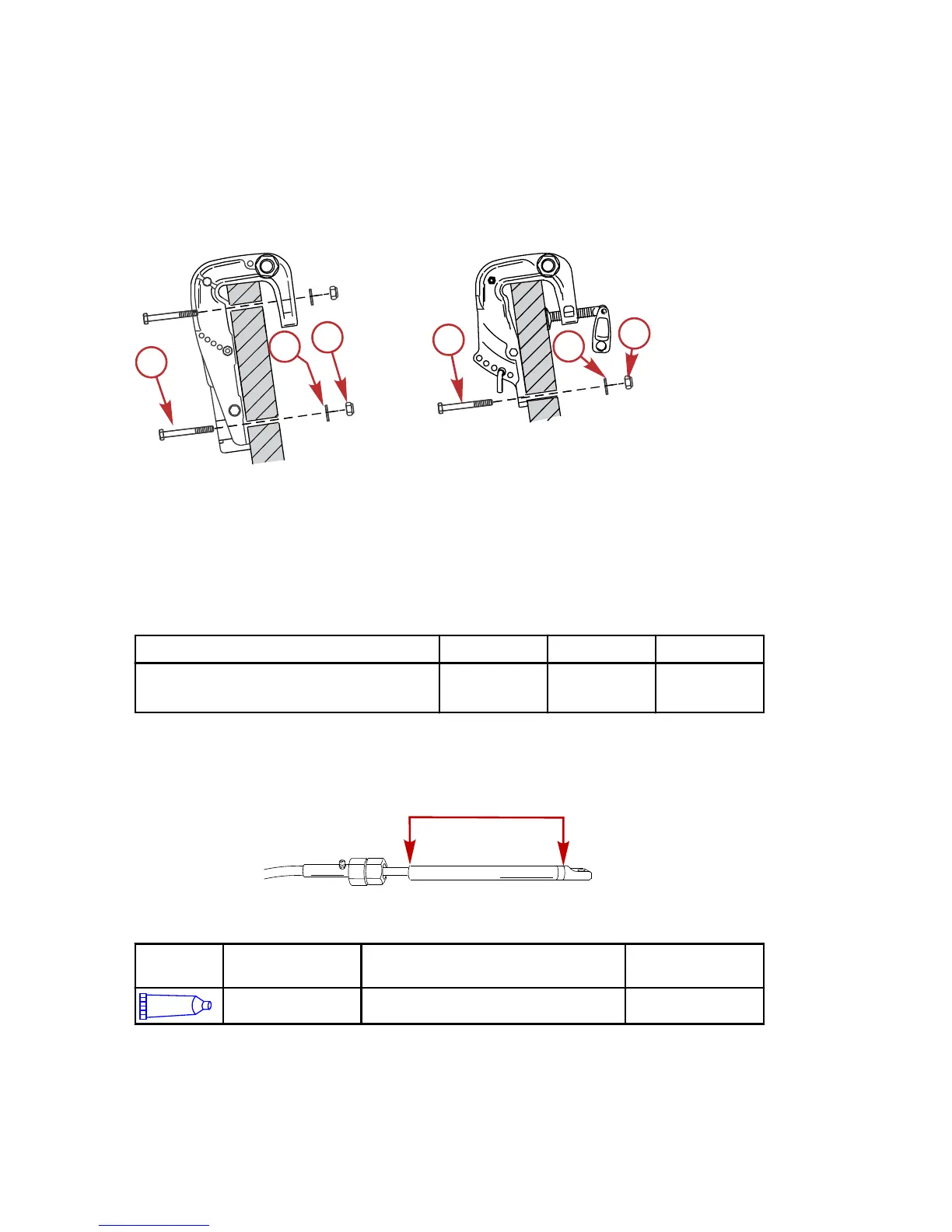

3. To prevent a loss of the outboard, secure the outboard to the transom
with the supplied mounting hardware. Use a 7.9 mm (5/16 in.) drill bit to
bore the holes into the transom. Use the transom bracket mounting holes
for the alignment guide. Secure the bolts with flat washers and locknuts.
Apply marine waterproofing sealer in the holes and around the bolts to
make the installation water tight. Tighten the bolts to the specified torque.
Power tilt models Manual tilt models
a - Power tilt models have four bolts, manual tilt models have two bolts
b - Power tilt models have four washers, manual tilt models have two
washers
c - Power tilt models have four nuts, manual tilt models have two nuts
Description Nm lb‑in. lb‑ft
Transom bracket mounting bolts—
all models
13.5 120 –
Steering Cable Installation
1. Lubricate the entire cable end with Mercury or Quicksilver 2‑4‑C with
PTFE.
Tube Ref
No.
Description Where Used Part No.
95
2-4-C with PTFE Steering cable end 92-802859A 1
2. Insert the steering cable into the tilt tube.
3. Tighten the steering cable nut to the specified torque.
To Next Page
