Tiller Handle Operating Position Adjustment
The down stop adjustment knob sets the angle of the tiller handle operating
position. Use this knob to raise or lower the tiller handle operating position.

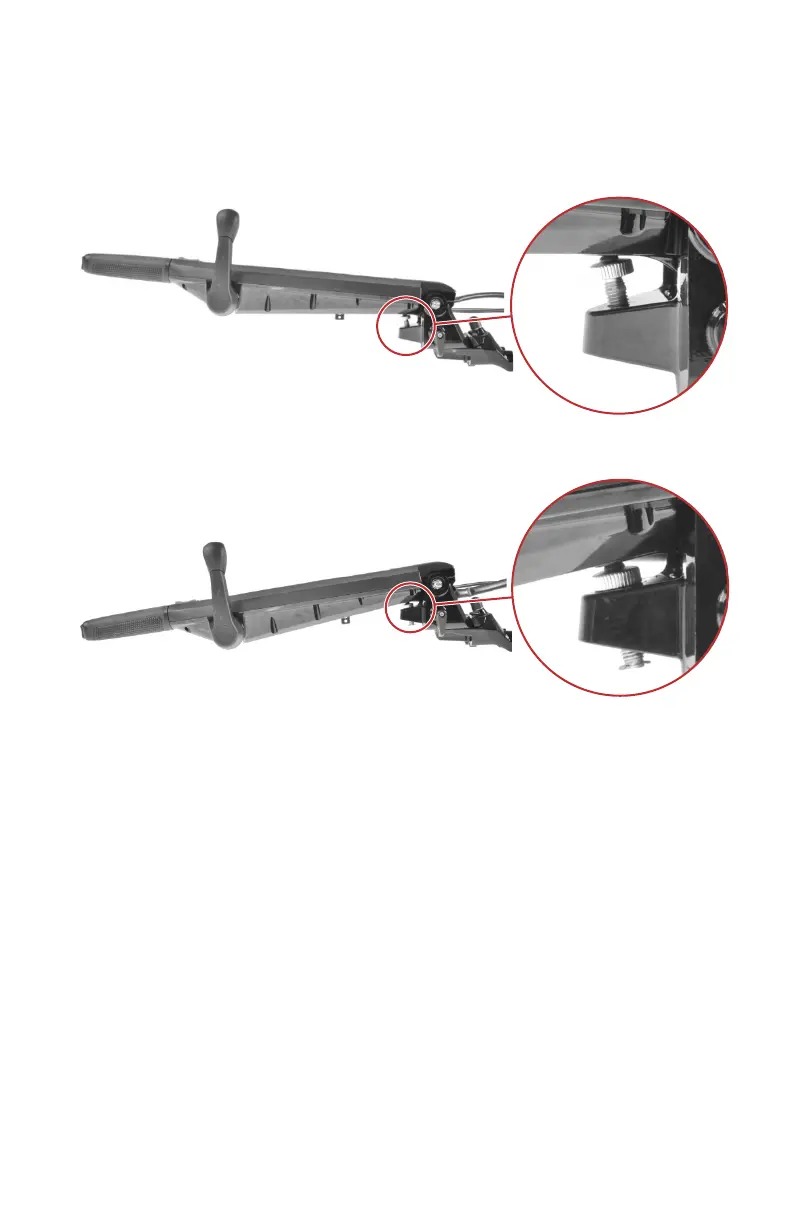

Down stop adjustment knob at its highest setting
Down stop adjustment knob at its lowest setting
Tiller Handle Yaw
The tiller handle yaw allows the operator to change the horizontal angle of the
handle up to 18° left or right of center. Each marked increment is 6°.
1. Remove the rubber boot covering the clamp nut.
