Mercury 115 HP User Manual

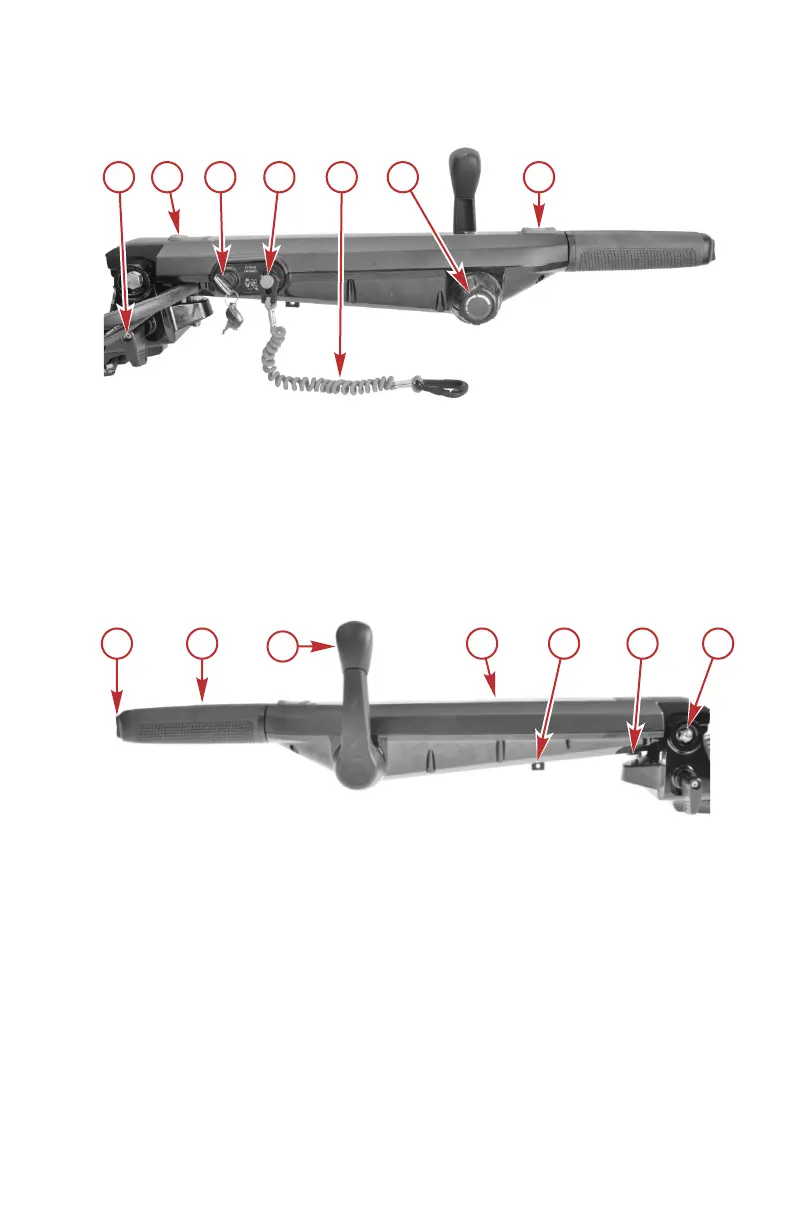

Tiller Handle Components
a - Tiller lock release lever
b - Heated throttle grip control (if equipped)
c - Ignition key switch
d - Lanyard stop switch
e - Lanyard
f - Throttle grip friction knob
g - Troll speed control switch (if equipped)
a - Power trim switch (if equipped)
b - Throttle grip
c - Gear shift handle
d - Warning light panel
e - Spare lanyard clip
f - Down stop adjustment knob
g - Tiller handle tilt friction adjustment jam nut
69113
a
c
d
e
f
g
b
69114
a
b
c
e
f
g
d
GENERAL INFORMATION
eng 1

Mercury 115 HP Specifications

General

Brand	Mercury
Model	115 HP
Category	Outboard Motor
Language	English
