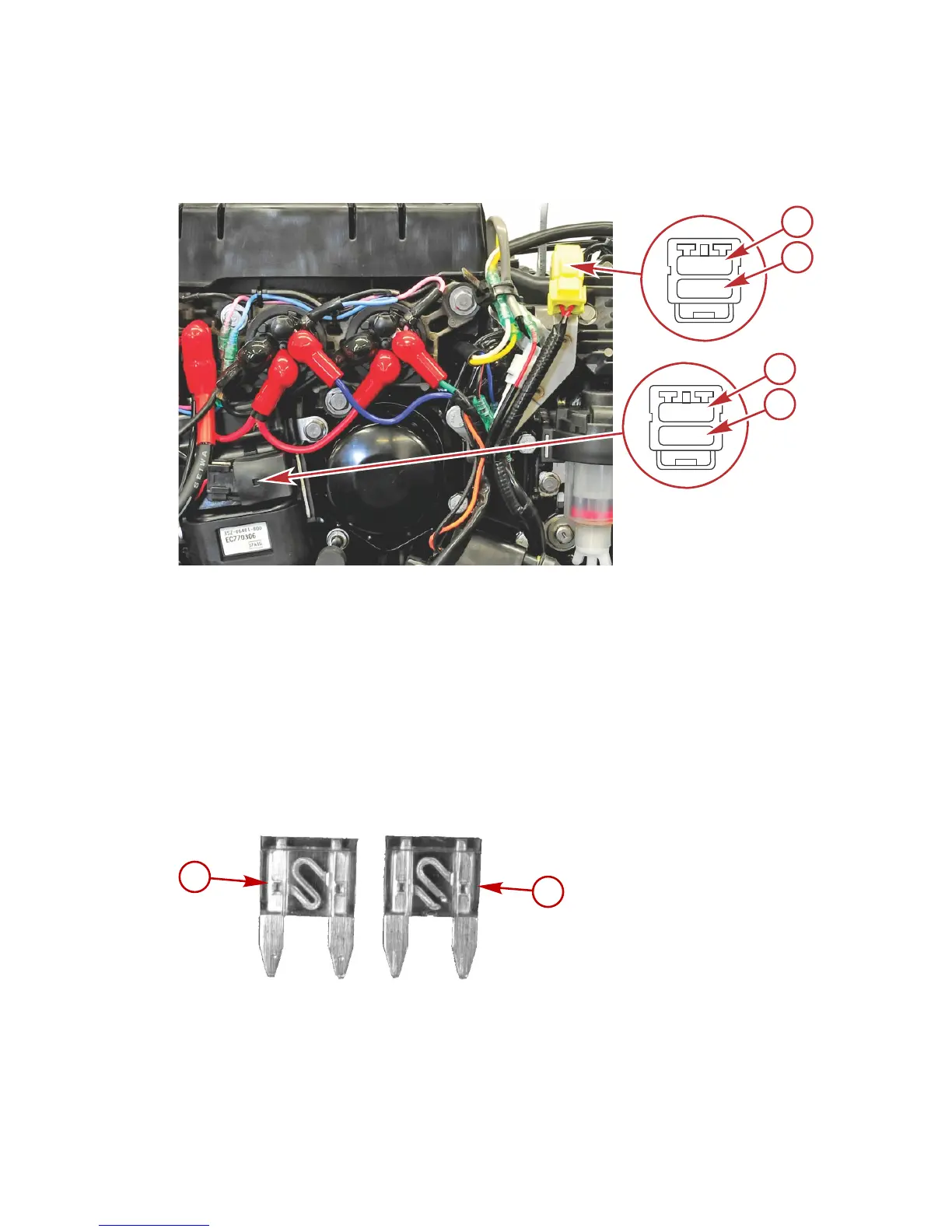

The voltage regulator circuit and the electric starting circuit are protected from
overload by 20‑amp and 15‑amp ATC fuses, respectively. If a fuse opens, try to
locate and correct the cause of the overload. If the cause is not found, the fuse
may open again.
a - 20‑amp fuse—Voltage regulator circuit
b - Spare 20‑amp fuse
c - 15‑amp fuse—Electric starting circuit
d - Spare 15‑amp fuse
To access the 15‑amp fuse, remove the fuse block from the pocket on the ECM
rubber mount. Then remove the cap from the fuse block.
Remove the fuse and examine the silver colored band inside the fuse. If band
is broken, replace the fuse. Replace the fuse with a new fuse of the same
rating.
Identifying an open fuse
a - Good fuse
b - Open (blown) fuse
