Section 1 - Getting to Know Your Power Package
Page 4 90-8M0113987 eng DECEMBER 2015
The serial number is also stamped on the gimbal housing. This is used as a permanent reference for authorized MerCruiser
dealers.

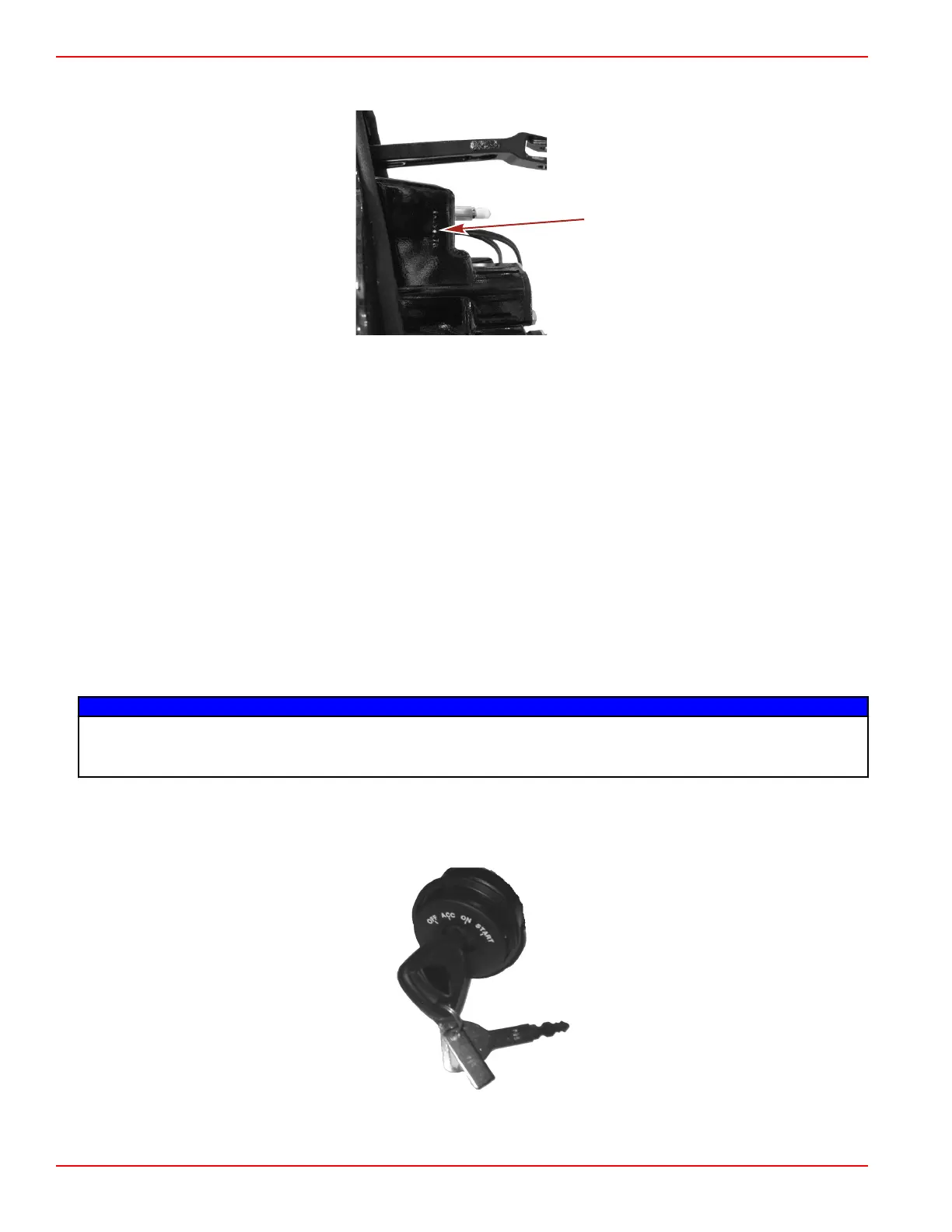

Serial number location on gimbal housing
Features And Controls
Audio Warning System
Your power package is equipped with an audio warning system. The audio warning system monitors critical components and
informs the operator when a malfunction has occurred. The warning system is not capable of protecting the power package
from damage caused by a malfunction.
When an electronic control system detects a recordable malfunction, the audio warning system will sound to alert the operator.
The duration and type of horn sound depend upon the nature of the fault condition. In the case of any horn sounding, the user
should refer to the helm displays to understand the specific situation.
For the operator to view the fault code of the malfunction indicated and any recommended actions, the power package must be
equipped with a gauge package that supports the warning system and can display fault codes.
The following instruments have screens that display fault codes:
• VesselView
• SmartCraft System Tachometer
• SmartCraft System Speedometer
NOTICE
The sound from an audio warning horn indicates that a critical fault malfunction has occurred. Operating a power package
with a critical fault can damage components. If the audio warning horn emits a sound, do not continue operations unless
avoiding a hazardous situation.
If the audio warning sounds, stop the engine immediately if you are not in a hazardous situation. Investigate the cause and
correct it, if possible. If you cannot determine the cause, consult an authorized repair facility.
Switches
Four position key switch
