FEATURES & CONTROLS
24

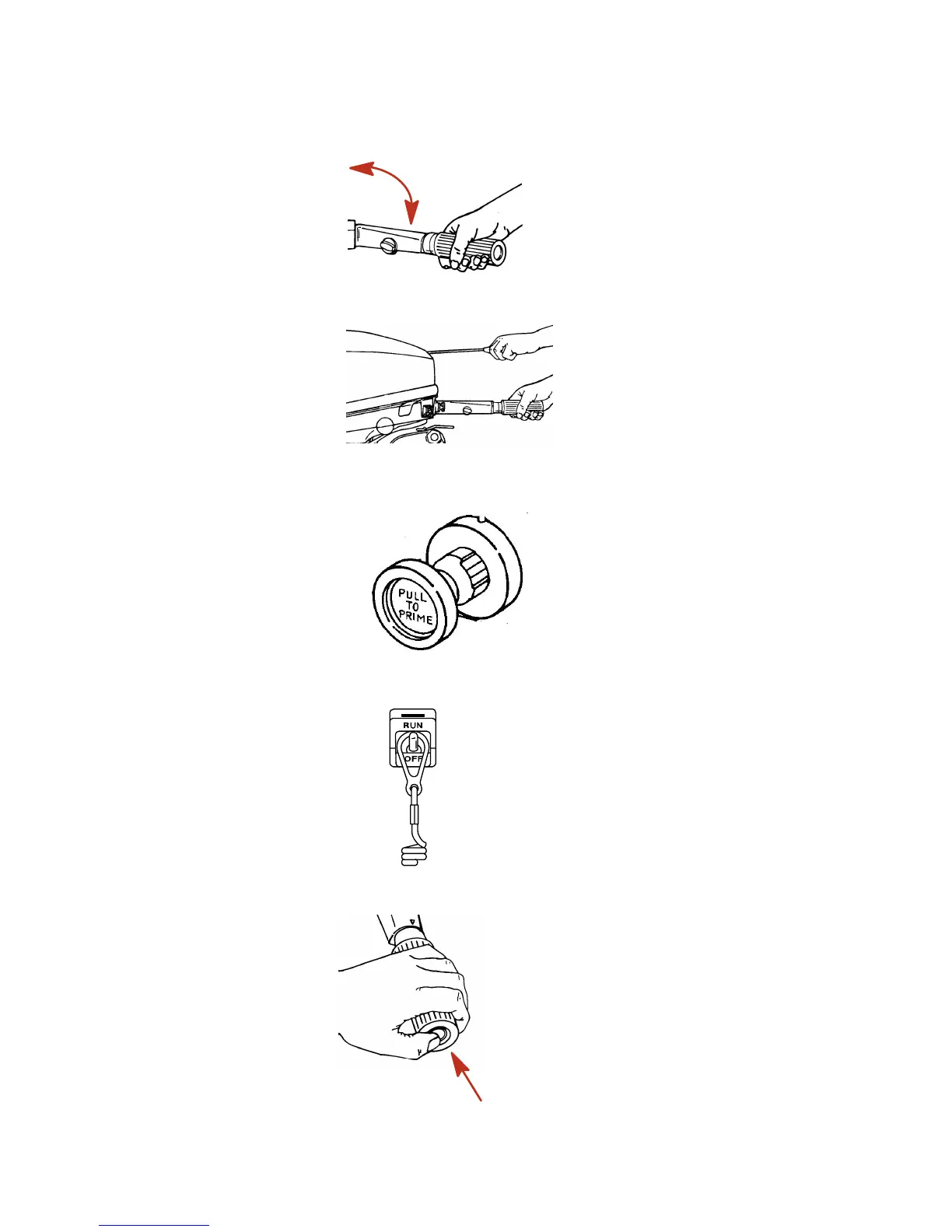

Tiller Handle Models
• Tiller handle ‑ Handle can be tilted 100° for convenient handling during transportation and storage.
3173
• Starter rope ‑ Pulling the starter rope cranks the engine over for starting.
ob01383
• Primer/idle speed knob ‑ Pulling the knob out supplies a small amount of fuel to the engine for cold starting.
Rotate knob to adjust idle speed after engine warms up.
ob01384
• Lanyard/Lanyard stop switch ‑ Refer to General Information ‑ Lanyard Stop Switch.
ob00350
• Engine stop switch ‑ Push in to stop engine.
ob00361
• Throttle grip friction knob ‑ Turn friction knob to set and maintain the throttle at desired speed. Turn knob
clockwise to tighten friction or turn knob counterclockwise to loosen friction.
