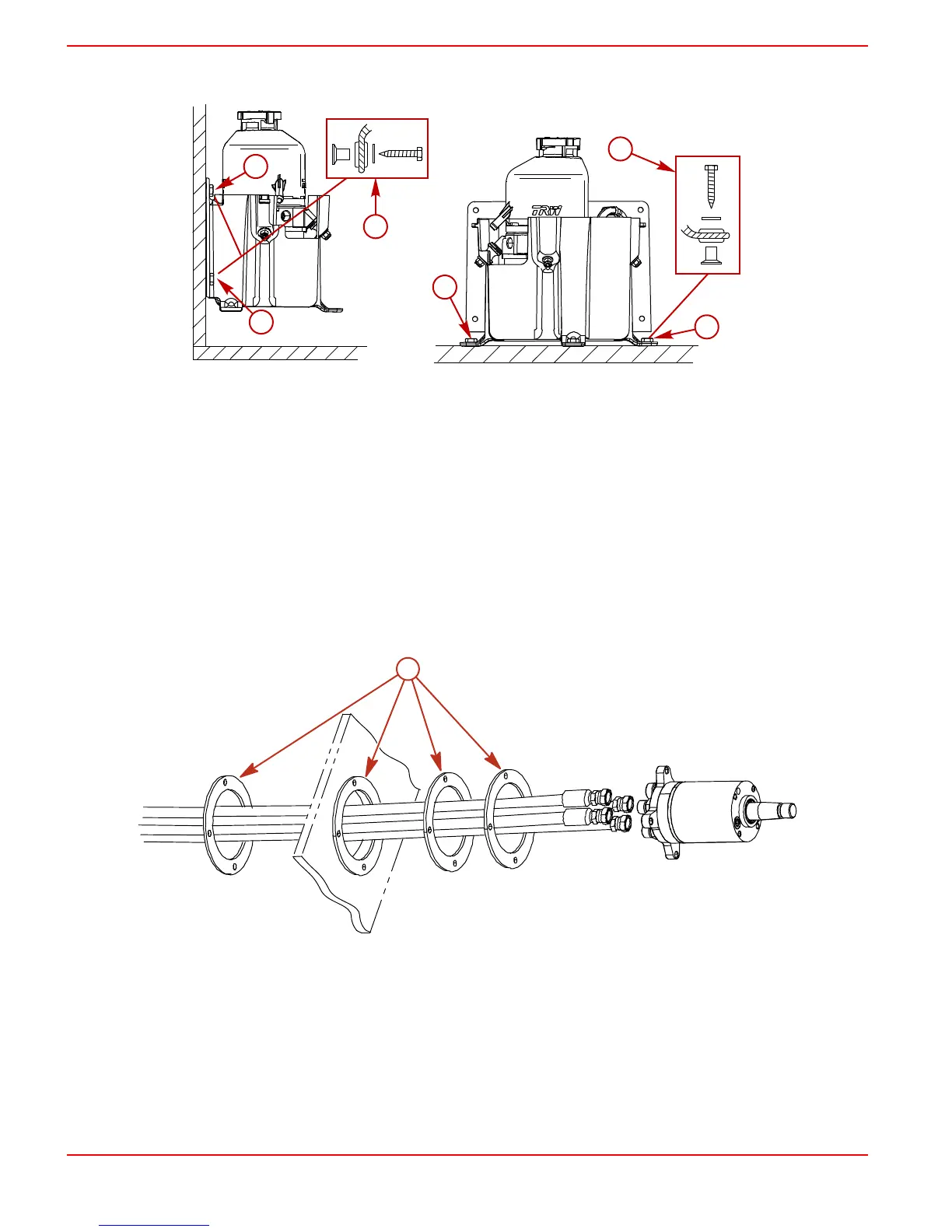

2. Mount the power steering pump at the selected location, using appropriate fastening
hardware suitable for the type of material and thickness of the mounting surface.
ob01459
a
a
a
a
b
b
Mounted on internal bulkhead Mounted on floor
a - Lag screws or thru-bolts (3 or 4)
b - Mounting hardware
Connection of the Hydraulic Hoses to the Steering Helm
NOTE: Hoses must be routed up through steering helm opening in dash and secured to
helm fittings prior to mounting the steering helm.
1. Place the steering hoses through one backing plate on the internal side of the
dashboard. Route the steering hoses through the drilled opening, and place the
required amount of backing plates on the hoses on the external side of the dashboard.
NOTE: The number of backing plates varies depending on helm displacement.
4027
a
a - Backing plates
2. Remove and discard the shipping caps from ends of the four fittings on the steering
helm. Ensure the O-ring seals did not lift off with the shipping caps.

Mercury 200 VERADO Specifications

General

Engine Type	4-Stroke
Gear Ratio	1.85:1
Full Throttle RPM Range	5800-6400 RPM
Fuel System	Electronic Fuel Injection (EFI)
Exhaust	Through Prop
Horsepower	200 HP
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20", 25"
Starting	Electric
Fuel Type	87 Octane
Cylinder Configuration	Inline-6
Cooling System	Water-cooled with thermostat
