3. Connect a hoist to the lifting eye.
4. Lift the outboard and place it on the boat transom.
Applying Counter Rotation Decals
IMPORTANT: For dual outboard counter rotation installation, the left- hand rotation
outboard is generally placed on the port sided of the transom.
1. Apply counter rotation decal (supplied with left-hand rotation outboard) onto
right-hand rotation outboard.
2. Match decal placement with left-hand rotation outboard.

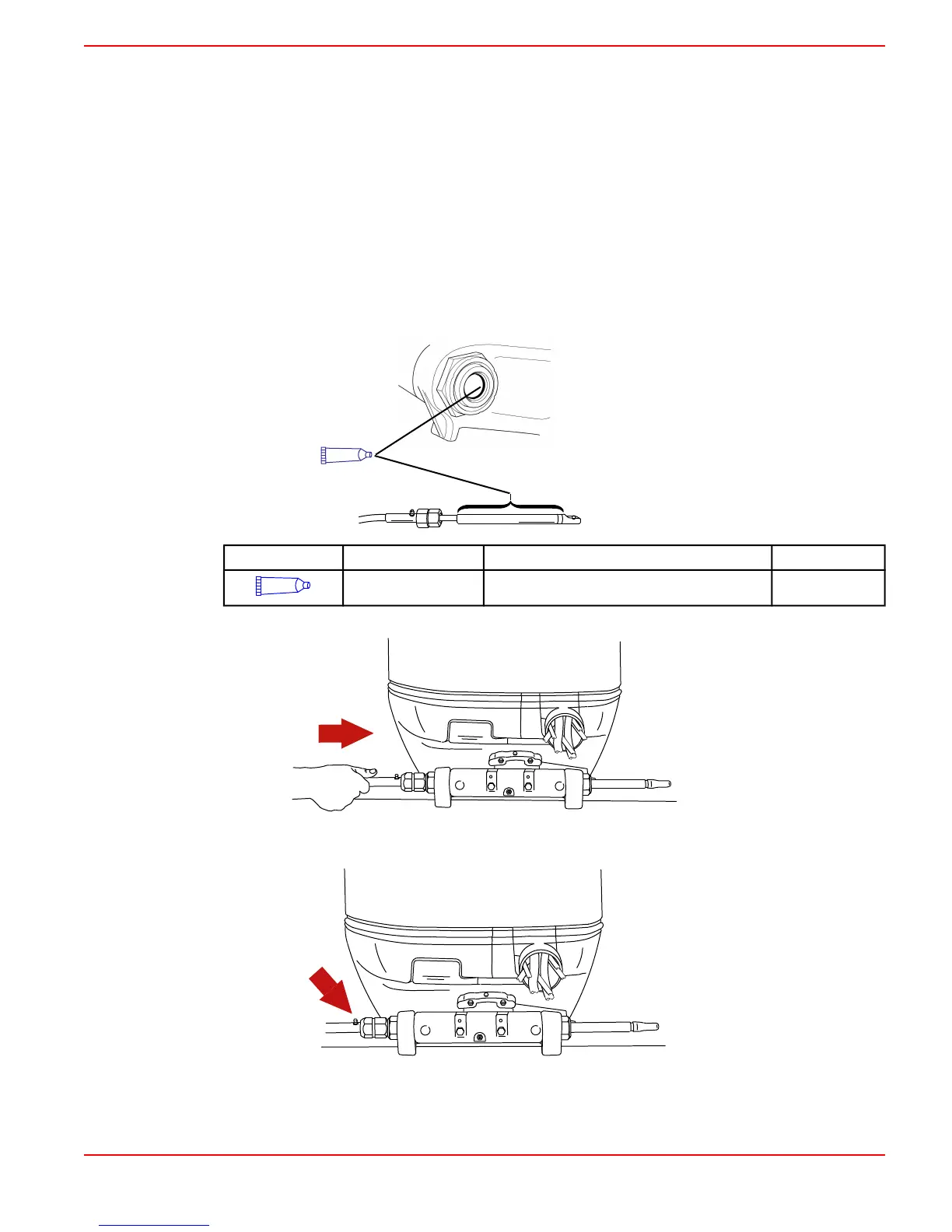

Steering Cable - Starboard Side Routed Cable
1. Lubricate O-ring seal and entire cable end.
3724
95
Tube Ref. No. Description Where Used Part Number
95
2-4-C with Teflon O-ring seal and the entire cable end. 92-802859A1
2. Insert steering cable into tilt tube.
3725
3. Torque nut to specification.
3727
