OUTBOARD INSTALLATION
eng 109

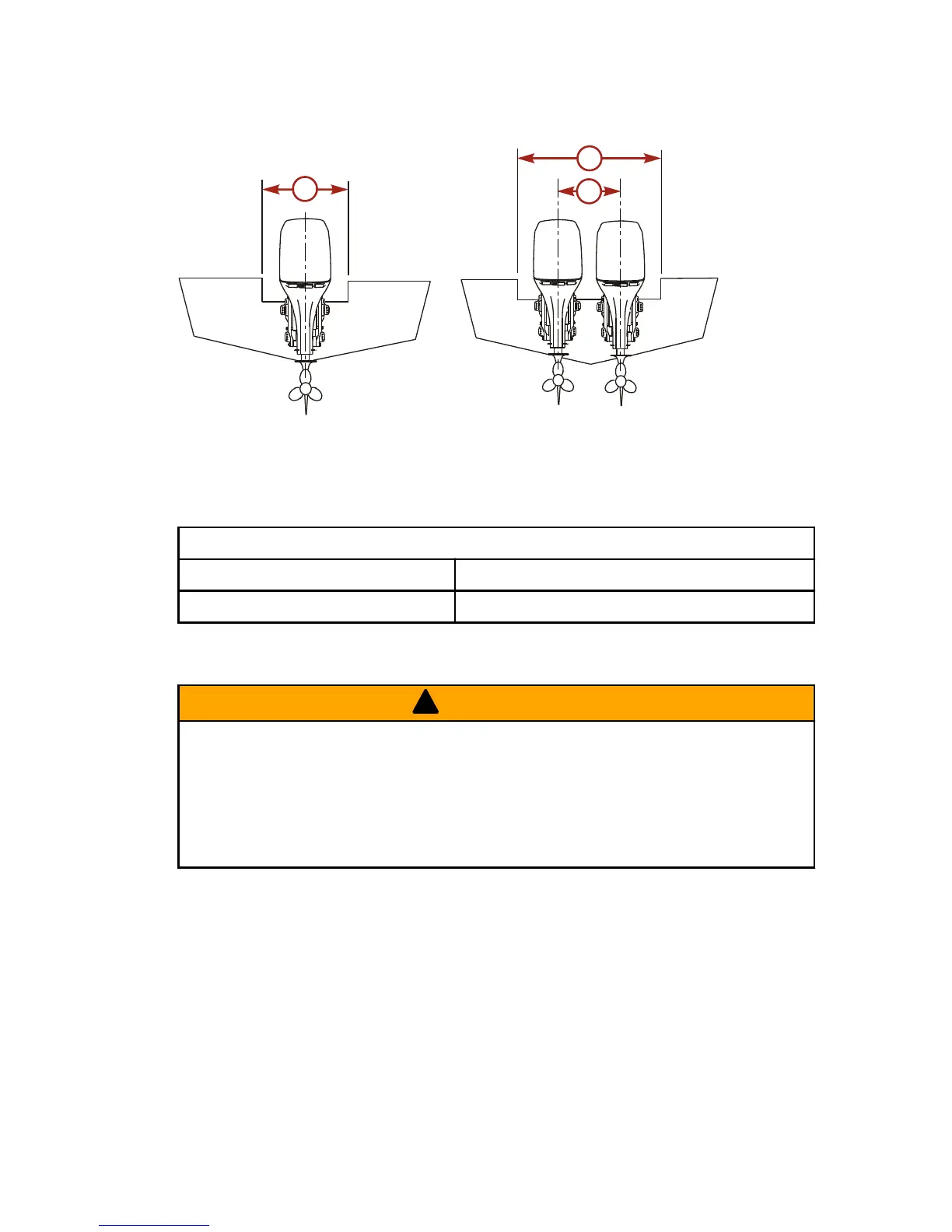

Installation Specifications
a - Minimum transom opening
b - Engine centerline for dual engine ‑ 66.0 cm (26 in.)
Minimum Transom Opening
Single engine 84.8 cm (33‑3/8 in.)
Dual engine 151.8 cm (59‑3/4 in.)
Lifting the Outboard
!
WARNING
Improperly supporting an engine during lifting can result in the
engine falling, causing serious injury or death. Before lifting the
engine, verify that the lifting ring is threaded into the flywheel
for a minimum of five turns and that the hoist has the correct
lifting capacity for the engine weight.
To lift the outboard:
1. Remove the cowl from the outboard.
