Steering Link Rod Fasteners
IMPORTANT: The steering link rod that connects the steering cable to the engine must be fastened using
special washer head bolt ("e" - Part Number 10-856680) and self-locking nylon insert locknuts ("b" & "d"
- Part Number 11-826709113). These locknuts must never be replaced with common nuts (non-locking)
as they will work loose and vibrate off, freeing the link rod to disengage.
!
WARNING
Improper fasteners or improper installation procedures can result in loosening or disengagement of
the steering link rod. This can cause a sudden, unexpected loss of boat control, resulting in serious
injury or death due to occupants being thrown within or out of the boat. Always use required
components and follow instructions and torque procedures.

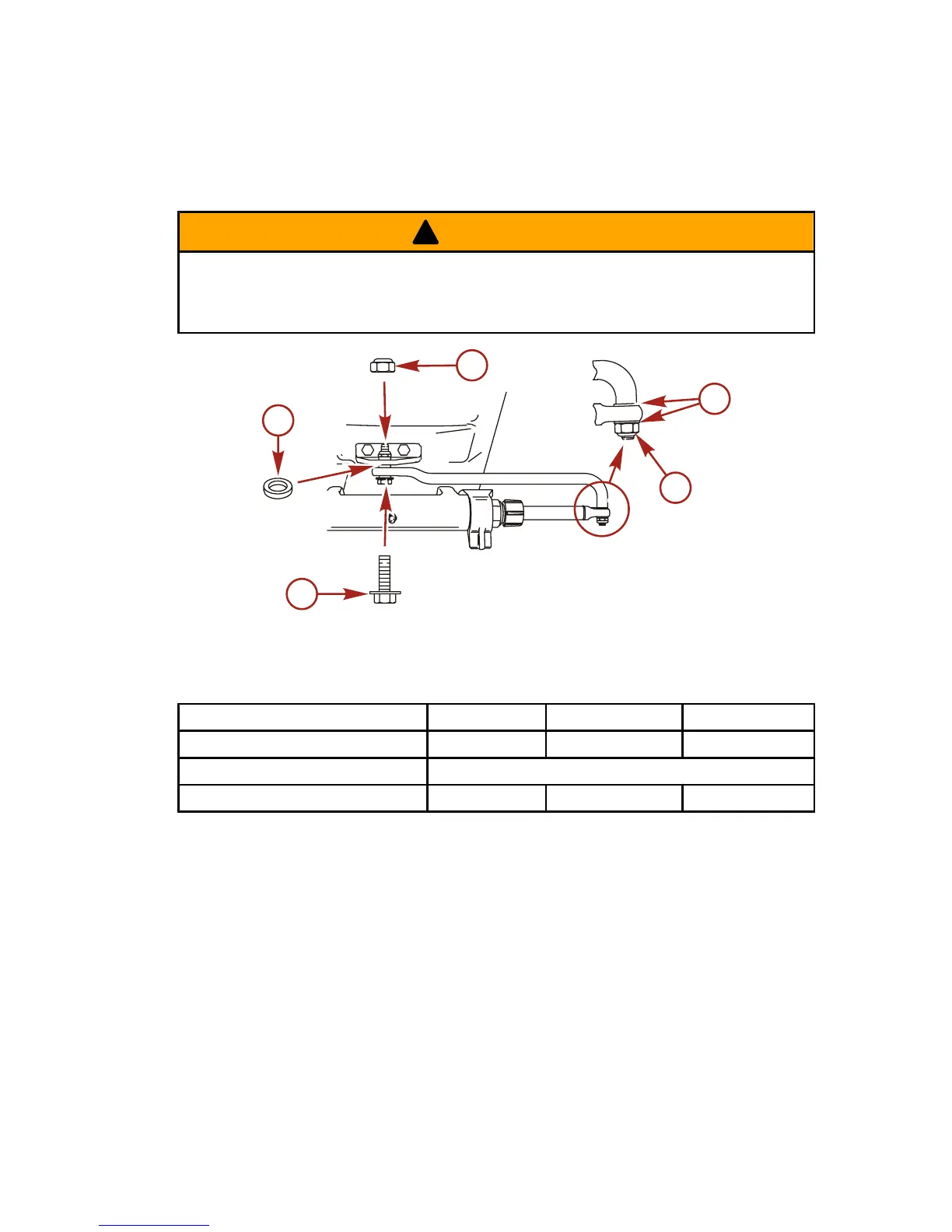

a - Spacer (12-71970)
b - Nylon insert locknut (11-826709113)
c - Flat washer (2)
d - Nylon insert locknut (11-826709113)
e - Special washer head bolt (10-856680)
Description Nm lb. in. lb. ft.
Nylon insert locknut "b" 27 20
Nylon insert locknut "d" Tighten until seats then back off 1/4 turn
Special washer head bolt 27 20
Assemble steering link rod to steering cable with two flat washers and nylon insert locknut. Tighten
locknut until it seats, then back nut off 1/4 turn.
Assemble steering link rod to engine with special washer head bolt, locknut and spacer. First torque bolt,
then locknut to specification.
Corrosion Control Anode
The outboard has corrosion control anodes at different locations. An anode helps protect the outboard
against galvanic corrosion by sacrificing its metal to be slowly corroded instead of the outboard metals.
Each anode requires periodic inspection, especially in saltwater which will accelerate the erosion. To
maintain this corrosion protection, always replace the anode before it is completely eroded. Never paint
or apply a protective coating on the anode, as this will reduce effectiveness of the anode.
