FEATURES AND CONTROLS
25

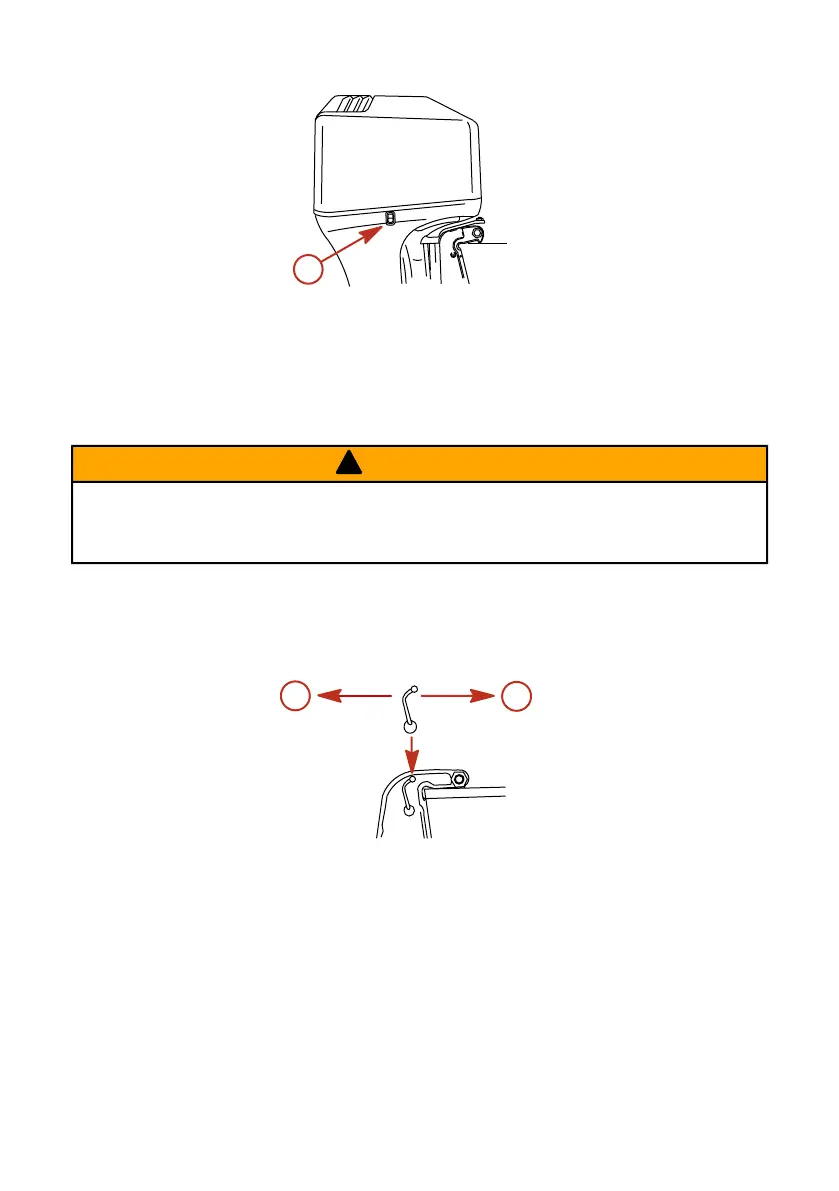

a - Auxiliary tilt switch
Manual Tilt System
Models without power trim are equipped with a tilt assist system that allows the operator to easily tilt and lock the
outboard at any tilt position from full down to full up.
This tilt system is designed to be adjusted when the outboard is idling in neutral or with the engine turned off.
WARNING
Before operating, the outboard must be locked in its lock/run position. Failure to lock the outboard in its lock/
run position could result in the outboard tilting up out of the water during deceleration or while operating in
reverse, resulting in possible loss of boat control. Loss of boat control can result in serious injury, death, or boat
damage.
Before operating, the outboard must be locked in its tilt position by moving the tilt lock lever to the lock/run position.
BASIC TILTING OPERATION
Move tilt lock lever to the tilt position. Tilt outboard to desired position and lock in place by moving the tilt lock lever
back to the lock/run position.
a - Tilt position b - Lock/run position
SETTING THE OPERATING ANGLE OF THE OUTBOARD
The vertical operating angle of the outboard is adjusted by changing the position of the tilt pin in the adjustment
holes provided. Proper adjustment allows the boat to achieve optimum performance, stability, and minimize
steering effort.
